Home > Products > Digital LED pixel module > 38mm 9LEDs RGB SMD5050 2.16w UCS1903 LED pixel module light
38mm 9LEDs RGB SMD5050 2.16w UCS1903 LED pixel module light
- Shenzhen/Hong Kong
- T/T Credit Card PayPal
You May Like
-
45mm 6LEDs RGB SMD5050 1.44W UCS1903 UCS2903 LED pixel module light
-
45mm 9LEDs RGB SMD5050 2.16W UCS1904 UCS2903 LED pixel module light
-
60mm 9LEDs RGB SMD5050 2.16w UCS1904 UCS2903 LED pixel module light
-
60mm 12LEDs RGB SMD5050 2.88w UCS1904 UCS2903 LED pixel module light
-
60mm 18LEDs RGB SMD5050 4.32w UCS1904 UCS2903 LED pixel module light
-
60mm 18LEDs 24V 4.32W programmable UCS2903 RGB point light
Product Details
| Emitting Color | Tri-Color(Red-Blue-Green) | Luminous Intensity | 2000-2500MCD per LED | |
| Luminous Flux(lm) | 6-7m per LED | Optical Attenuation(%) | 3% | |
| Power | Other | Power Dissipation | 2.16W | |
| Color Rendering Index(Ra) | 80% | Color Temperature | RGB | |
| Operating Temperature(℃) | -30, 60 | Storage Temperature(℃) | -10, 40 | |
| Place of Origin | Guangdong, China | Brand Name | PACKEVER | |
| Certification | CE |
Product Description

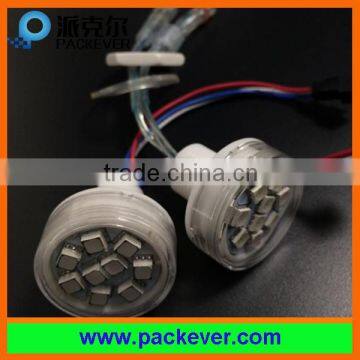

38mm 9LEDs RGB SMD5050 2.16w UCS1903 LED pixel module light
38mm 9LED full color LED pixel module, can show customized color effects, programmable, waterproof.
Product Name | 38mm 9LEDs RGB SMD5050 2.16w UCS1903 LED pixel module light |
Item No. | PK-FK389-RGB-1903 |
Power | 2.16W/pcs |
Work Voltage | DC12V |
IC Type | ws2811/ucs1903/sm16703 (accept other IC order) |
LED Qty | 9pc |
PCB Color | White |
Installation hole | 20mm |
Waterproof | IP67 |
Work Temperature | -30-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |
38mm 9LEDs RGB SMD5050 2.16w UCS1903 LED pixel module light Advantage:
1. Addressable, full color, each one can be controlled to show customized color
2. Can be connected by connector, easy to make operate
3. Rainproof, outdoor use
4. Beautiful shape
5. Use epistar chip LED to make sure long term use (if need other brand, please contact us)6. RGB and single color both available
38mm 9LEDs RGB SMD5050 2.16w UCS1903 LED pixel module light Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
GND: connect to power supply GND & controller GND
We have more than 50 different items, if need more information, email or call us now! Accept customized design!
Other Type Of pixel module light:
Burn-in test photos:
Automatic glue injection machines:
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
