New coming DC5V 25mm 1LED RGB ws2811, sm16703, ucs1903 LED pixel module
- 10000 Piece / Pieces per Month
- Shenzhen/Hong Kong
- T/T Credit Card PayPal
You May Like
-
New coming 12V 0.72W RGB color programmable LED pixel module light
-
44mm 6LEDs 5050 SMD 1.44W UCS2903 smart LED pixel RGB light
-
54mm 9LEDs SMD5050 2.16w UCS1903 smart LED pixel module light
-
68mm 18LEDs 24V 4.32W programmable UCS2903 RGB LED point light
-
DC5V RGB 60LEDs/m APA102/APA102C LED strip
-
DC5V RGB 32LEDs/m APA102 LED pixel strip
Product Details
| Emitting Color | Tri-Color(Red-Blue-Green) | Luminous Intensity | 2000-2500MCD | |
| Luminous Flux(lm) | 6-7ml | Optical Attenuation(%) | 3% | |
| Power | Other | Power Dissipation | 0.3w | |
| Color Rendering Index(Ra) | 80% | Color Temperature | RGB | |
| Operating Temperature(℃) | -30, 60 | Storage Temperature(℃) | -10, 40 | |
| Place of Origin | Guangdong, China | Brand Name | PACKEVER | |
| Certification | CE |
Product Description

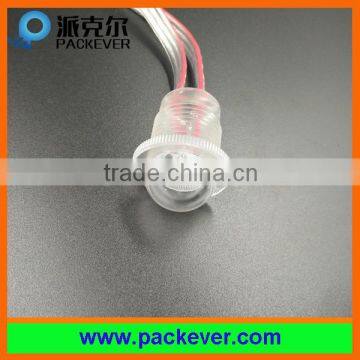

DC5V 25mm 1LED RGB ws2811, sm16703, ucs1903 LED pixel module
Product Name | DC5V 25mm 1LED RGB ws2811, sm16703, ucs1903 LED pixel module |
Color | Full RGB |
Power | 0.3W/pcs |
Work Voltage | DC5V |
IC Type | ws2811 (accept other IC order) |
LED Qty | 1pc |
PCB Color | white |
Dimension | D25mm |
Waterproof | IP67 |
Work Temperature | -30-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |
DC5V 25mm 1LED RGB ws2811, sm16703, ucs1903 LED pixel module Advantage:
1. Addressable, full color, each one can be controlled to show customized color
2. Can be connected by connector, easy to make operate
3. Rainproof, outdoor use
4. Beautiful shape
5. Use epistar chip LED to make sure long term use (if need other brand, please contact us)6. RGB and single color both available
DC5V 25mm 1LED RGB ws2811, sm16703, ucs1903 LED pixel module Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
GND: connect to power supply GND & controller GND
We have more than 50 different items, if need more information, email or call us now! Accept customized design!
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
