Home > Products > Digital LED pixel module > DC12V 4LEDs square shape RGB ws2801 LED pixel module

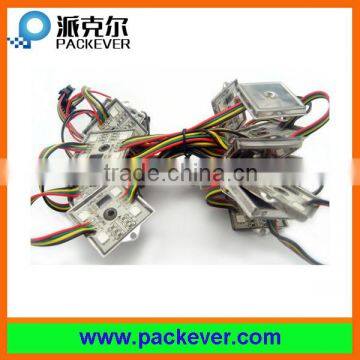

DC12V 4LEDs square shape RGB ws2801 LED pixel module
- Shenzhen/Hong Kong
- T/T Credit Card PayPal
You May Like
-
DC12V 26mm RGB ws2811 LED pixel module
-
12mm full color digital addressable LED pixel string
-
12mm full color IP65/IP67 SM16716 RGB color LED pixel string module
-
Good quality 12mm APA106 RGB LED pixel string module light
-
12mm RGB IP68 black wire cable 12V ws2811 LED pixel string
-
12mm round shape P9883 RGB LED pixel strand
Product Details
| Model Number | PK-F35-4RGB-2801 | Emitting Color | Tri-Color(Red-Blue-Green) | |
| Luminous Intensity | 2000-2500MCD per LED | Luminous Flux(lm) | 6-7m per LED | |
| Optical Attenuation(%) | 3% | Power | Other, 0.72w/pcs | |
| Power Dissipation | 1.44W | Color Rendering Index(Ra) | 80% | |
| Color Temperature | RGB | Operating Temperature(℃) | -30, 60 | |
| Storage Temperature(℃) | -10, 40 | Place of Origin | Guangdong, China | |
| Brand Name | PACKEVER | Certification | CE |
Product Description
DC12V 4LEDs square shape RGB ws2801 LED pixel module
Product Name | DC12V 4LEDs RGB ws2801 LED pixel module |
Item No. | PK-F35-4RGB-2801 |
Power Consumption | 1.44W/pcs |
Work Voltage | DC12V |
IC Type | ws2801 (accept other IC order) |
LED Qty | 4pc |
PCB Color | Black/white/yellow |
Dimension | 35*35mm |
Waterproof Grade | IP67 |
Work Temperature | -30-+60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2 years |
DC12V 4LEDs square shape RGB ws2801 LED pixel module Advantage:
1. Addressable, full color, each one can be controlled to show customized color
2. Can be connected by connector, easy to install
3. Rainproof
4. Beautiful shape
5. Use epistar chip LED to make sure long term use (if need other brand, please contact us)6. RGB and single color both available
DC12V 4LEDs square shape RGB ws2801 LED pixel module Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
CLK: connect to controller CLK
GND: connect to power supply GND & controller GND
We have more than 50 different items, if need more information, email or call us now! Accept customized design!
Burn-in test photos:
Automatic glue injection machines:
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
