zte low cost gsm gprs gsm module mg2639_v2
US$ 7 - 10
/ Piece
1 Piece(Min. Order)
- HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
low price wireless gsm gprs gps module low power
-
SIMCOM SIM5218 HSPA WCDMA module with 7.2Mbps embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS
-
2g gsm module modem
-
2g module modem gsm gps gprs mg2639 v3
-
Wirelless Module GSM GPRS Module SIM900E SIMCOM
-
Wirelless Module GSM GPRS Module SIMCOM SIM800H
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZTE | |
| Model Number | MG2639_V2 |
Product Description

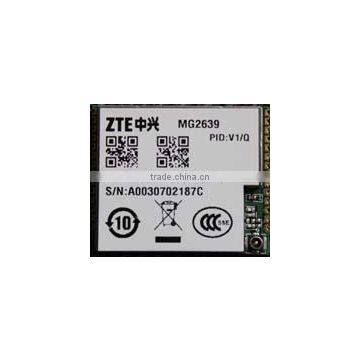

With 30-PIN stamp-hole interface, MG2639_V2 module developed by ZTE Corporation is a kind
of GSM850/EGSM900/DCS1800/PCS1900 industrial module, which can be built in the Set-Top-Box,
vehicle-mounted terminals, and enable users to get access to the Internet wirelessly and send/receive
Emails, browse the web pages, download at high speed, etc.
It enables users to get access to the Internet any time in a place where the GSM network is
covered. It also features in SMS, voice call, etc. and provides highly free and convenient solutions for
users in mobile data communication, and truly realizes the dream of mobile office.
| Product Information | |
| Parameter | MG2639_V2 |
| General Features | |
| Frequency Bands | GSM850/EGSM900/DCS1800/PCS1900 |
| Dimensions | 30.0×25.0x2.68mm |
| Weight | 7g |
| Operating Temperature Range | -30°C~+70°C |
| Storage Temperature Range | -40°C~+85°C |
| Performance | |
| Operating Voltage Range | 3.4V~4.25V/Typical: 3.8V |
| Standard power consumption | Standby Current: 2mA@-75dBm |
| Talk Current: 128mA@-75dBm | |
| Max. Current: 300mA@-104dBm | |
| Max. TX Power | GSM850/EGSM900: Class 4 (2W) |
| DCS1800/PCS1900: Class 1 (1W) | |
| Rx. Sensitivity | <-107dBm |
| Interfaces | |
| Connector | 30Pin Stamp-hole |
| Antenna Integrated Full Duplex UART | SMT 50Ω Antenna Connector |
| AT commands/Data transmission | |
| SIM Card Interface | 1.8V/3.0V |
| Data Features | |
| GPRS | Class 10 |
| Mobile Station | Class B |
| Max Downlink | 85.6kbps |
| Max Uplink | 42.8kbps |
| Protocol | Internal TCP/IP&UDP |
| Embedded FTP | |
| SMS | |
| Support TEXT/PDU Mode | |
| Point-to-point MO/MT | |
| SMS Cell Broadcast | |
| Voice call | |
| Vocoders HR/FR/EFR/AMR | |
| Echo Cancellation/Volume Control/DTMF | |
| AT Command Set | |
| GSM 07.05/GSM 07.07/ZTE Proprietary AT Commands | |
