Wireless Module GPS GLONASS SIM28 SIMCOM USB 2.0 MODEM

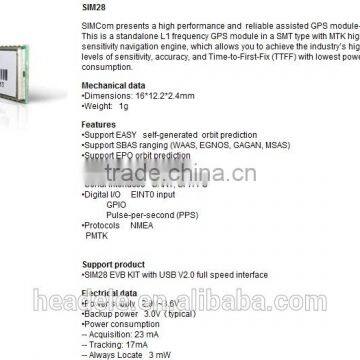

SIM28

SIMCom presents a high performance and  reliable assisted GPS module-SIM28. This is a standalone L1 frequency GPS module in a SMT type with MTK high sensitivity navigation engine, which allows you to achieve the industry's highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption.

Mechanical data
•Dimensions: 16*12.2*2.4mm
•Weight:   1g

Features
•Support EASY   self-generated  orbit prediction
•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
•Support EPO orbit prediction

Interfaces
•Serial interfaces   UART, SPI / I²C
•Digital I/O     EINT0 input
            GPIO
            Pulse-per-second (PPS)
•Protocols     NMEA
  PMTK


Support product
•SIM28 EVB KIT with USB V2.0 full speed interface

Electrical data
•Power supply   2.9V~3.6V
•Backup power   3.0V(typical)
•Power consumption
-- Acquisition: 23 mA
-- Tracking: 17mA
-- Always Locate   3 mW
•Antenna type  Active and Passive
•Antenna power  External or internal
       VCC_RF

Certificate

Performance data
•Receiver type  22 tracking/66 acquisition-channel GPS receiver
   GPS L1,  C/A Code

•Max. update rate  10Hz
•Sensitivity
     Tracking:-165 dBm
     Reacquisition: -160 dBm
     Cold starts: -147 dBm
•Time-To-First-Fix
      Cold starts with EASY:13 s
      Warm starts with EASY: 1~2s
      Cold starts:  33s
      Cold starts with
         EPO Assist:13 s
       Hot starts: <1s
•Accuracy
       Automatic Position: 2.5m CEP
       EPO 30days DATA: 1.99m
       Speed:0.1m/s
