Home > Products > Control Cable > 2016 8x0.25 mm 500v Rohs Standard Flexible Automotive Control Cable
2016 8x0.25 mm 500v Rohs Standard Flexible Automotive Control Cable
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | CHANGFENG | |
| Model Number | KVV | Insulation Material | Rubber | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | PE |
Product Description
2016 8x0.25 mm 500v rohs standard flexible automotive control cable
control cable 8x0.25 mm 500v rohs standard
Article List
| Part number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) | Base Unit | Price (Base Price) | |
|---|---|---|---|---|---|---|---|
| 00462001 | 2 X 0,5 | 6.9 | 33.0 | 74 | -- | -- | |
| 00462002 | 3 G 0,5 | 7.3 | 39.0 | 84 | -- | -- | |
| 00462003 | 4 G 0,5 | 7.9 | 46.0 | 98 | -- | -- | |
| 00462004 | 5 G 0,5 | 8.4 | 54.0 | 110 | -- | -- | |
| 00462005 | 7 G 0,5 | 9.8 | 70.0 | 143 | -- | -- | |
| 00462006 | 12 G 0,5 | 11.3 | 100.0 | 201 | -- | -- | |
| 00462007 | 18 G 0,5 | 13.4 | 153.0 | 287 | -- | -- | |
| 00462008 | 25 G 0,5 | 15.9 | 202.0 | 394 | -- | -- | |
| 00462009 | 2 X 0,75 | 7.3 | 39.0 | 85 | -- | -- | |
| 00462010 | 3 G 0,75 | 7.8 | 48.0 | 99 | -- | -- | |
| 00462011 | 4 G 0,75 | 8.4 | 59.0 | 116 | -- | -- | |
| 00462012 | 5 G 0,75 | 9.0 | 69.0 | 133 | -- | -- | |
| 00462013 | 7 G 0,75 | 10.7 | 90.0 | 178 | -- | -- | |
| 00462014 | 12 G 0,75 | 12.4 | 129.0 | 253 | -- | -- | |
| 00462015 | 18 G 0,75 | 14.9 | 205.0 | 368 | -- | -- | |
| 00462016 | 25 G 0,75 | 17.4 | 271.0 | 496 | -- | -- | |
| 00462017 | 2 X 1,0 | 7.7 | 46.0 | 97 | -- | -- | |
| 00462018 | 3 G 1,0 | 8.2 | 57.0 | 114 | -- | -- | |
| 00462019 | 4 G 1,0 | 8.9 | 70.0 | 134 | -- | -- | |
| 00462020 | 5 G 1,0 | 9.8 | 81.0 | 159 | -- | -- | |
| 00462021 | 7 G 1,0 | 11.4 | 110.0 | 207 | -- | -- | |
| 00462022 | 12 G 1,0 | 13.4 | 182.0 | 314 | -- | -- | |
| 00462023 | 18 G 1,0 | 16.1 | 254.0 | 443 | -- | -- | |
| 00462024 | 25 G 1,0 | 18.8 | 365.0 | 612 | -- | -- | |
| 00462025 | 26 G 1,0 | 18.8 | 374.0 | 625 | -- | -- | |
| 00462026 | 34 G 1,0 | 21.5 | 463.0 | 787 | -- | -- | |
| 00462028 | 2 X 1,5 | 8.4 | 58.0 | 117 | -- | -- | |
| 00462029 | 3 G 1,5 | 9.0 | 75.0 | 139 | -- | -- | |
| 00462030 | 4 G 1,5 | 9.9 | 91.0 | 169 | -- | -- | |
| 00462031 | 5 G 1,5 | 10.9 | 112.0 | 201 | -- | -- | |
| 00462032 | 7 G 1,5 | 12.7 | 145.0 | 262 | -- | -- | |
| 00462033 | 12 G 1,5 | 15.1 | 247.0 | 404 | -- | -- | |
| 00462034 | 16 G 1,5 | 16.8 | 314.0 | 503 | -- | -- | |
| 00462035 | 18 G 1,5 | 17.8 | 348.0 | 560 | -- | -- | |
| 00462036 | 25 G 1,5 | 21.2 | 498.0 | 793 | -- | -- | |
| 00462037 | 34 G 1,5 | 23.9 | 700.0 | 1005 | -- | -- | |
| 00462038 | 3 G 2,5 | 10.8 | 119.0 | 207 | -- | -- | |
| 00462039 | 4 G 2,5 | 11.8 | 161.0 | 247 | -- | -- | |
| 00462040 | 5 G 2,5 | 13.2 | 194.0 | 307 | -- | -- | |
| 00462041 | 7 G 2,5 | 15.8 | 262.0 | 418 | -- | -- | |
| 00462042 | 4 G 4 | 13.7 | 238.0 | 360 | -- | -- | |
| 00462043 | 5 G 4 | 15.3 | 280.0 | 436 | -- | -- | |
| 00462044 | 4 G 6 | 16.1 | 318.0 | 514 | -- | -- | |
| 00462045 | 4 G 10 | 20.2 | 521.0 | 824 | -- | -- | |
| 00462046 | 4 G 16 | 23.6 | 780.0 | 1207 | -- | -- |
Product Description
Application range
- In power chains or moving machine parts
- Suitable for use in measuring, control and regulating circuits
- Power circuits for electrical equipments used in automation engineering
- Assembly lines, production lines, in all kinds of machines
- Plant engineering
Benefits
- Well-proven and reliable
- Cost-effective solution
Design
- Extra-fine wire strand made of bare copper wires (class 6)
- Core insulation: PVC
- Cores twisted in layers in short lay lengths
- PVC inner sheath, (color is according to your demand)
- No braiding or tinned-copper braiding
- Non-woven wrapping
- PVC outer sheath, (color is according to your demand)
Norm references / Approvals
- Core based on VDE 0245/0285
- Outer sheath based on VDE 0245/0285
- For travel distances up to 10 m.
- For use in power chains: Please comply with the assembly guidelines listed in Appendix T3
Product features
- Low-adhesive surface
- Flame-retardant according IEC 60332-1-2
- In damp or wet interiors
- Designed for 2 up to 8 million bending/unbending cycles in power chain applications.
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Core identification code Black with white numbers acc. to VDE 0293 Classification Specific insulation resistance Conductor stranding Minimum bending radius
Nominal voltage Test voltage Protective conductor Temperature range |
Our certification
Our products meet standards of UL, GB, IEC, DIN, ASTM, JIS, NF, AS/NZS CSA GOST etc. As leading professional supplier in China, we have obtained ISO9001, ISO14001, CCC, API & UL certificates.

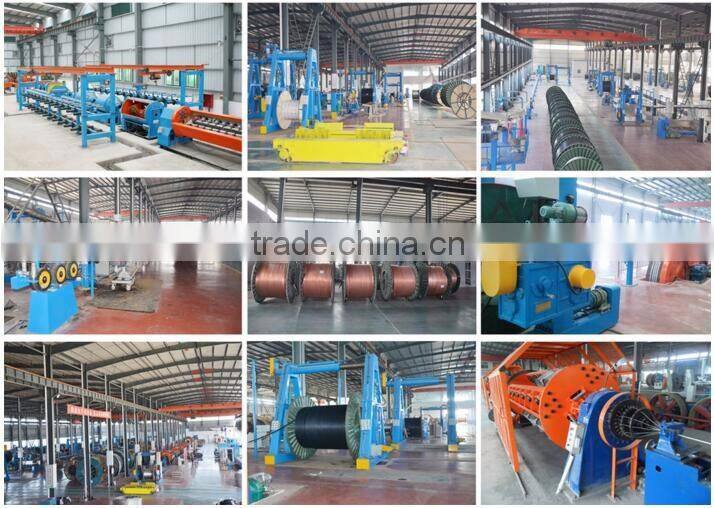

Production Line
As the leading professional cables manufacturers in China, our factory is mainly specialized in LV,MV electrical power cable, control cable, signal cable, flexible cable, aerial bundle cable, PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable, Welding Cables & UL wires etc.
Our market
With the perfect quality and after sales service, our products are very popular both in domestic & overseas market.
Company Introduction
Changfeng Wire & Cable Co., Ltd. was build in 1996, Domestic Sales Head Office is located in Beijing, International Trading Department is in Jinan, and the factory is located in Sha River Bridge Industrial Park, Hejian City, Hebei Province, covering an area of more than 178,000 square meters, the first phase construction area is 78,000 square meters more, registered capital 18 Million USD, project investment 81.8 Million USD. We professionally have engaged in Cable manufacturing for 18 years, our products cover: Power Cable, Mineral Insulated Flexible Fire Proof Cable, Alloy Cable, and ESP Cable for Oil Wells. We are approved by the State Administration for Industry and Commerce bareheaded administrative divisions, with the collection of cable research and development, production, sales in the integration of large international company.
Main Products
LV Power Cable & Control Cable / MV (35kV & below 35kV) Power Cable/ Armoured cable / Signal Cable / Flexible Cable/ Aerial Cable / Building Wire / Aluminum Alloy Cable / UL Wire
ESP Power Cable & Motor Lead Extension Cable / Fireproof cable / Mine Cable / Marine Cable / Railway Vehicle Cable / Rubber Cable etc.
Our Service
1. All of products are certificated.
2, Qualified products.
3, In time delivery.
4,OEM and ODM production.
5,Technical support by professional sales people and engineer services.
6.Products qualify guarrantee as long as 18 month after date of delivery.
Contacts
Ms. Ada Ren from Changfeng Wire&Cable Co.,Ltd
Web:
Moible: 0086-18660195571
Skype: sibylyiguan
Whatsapp/Wechat: 0086-13953179566

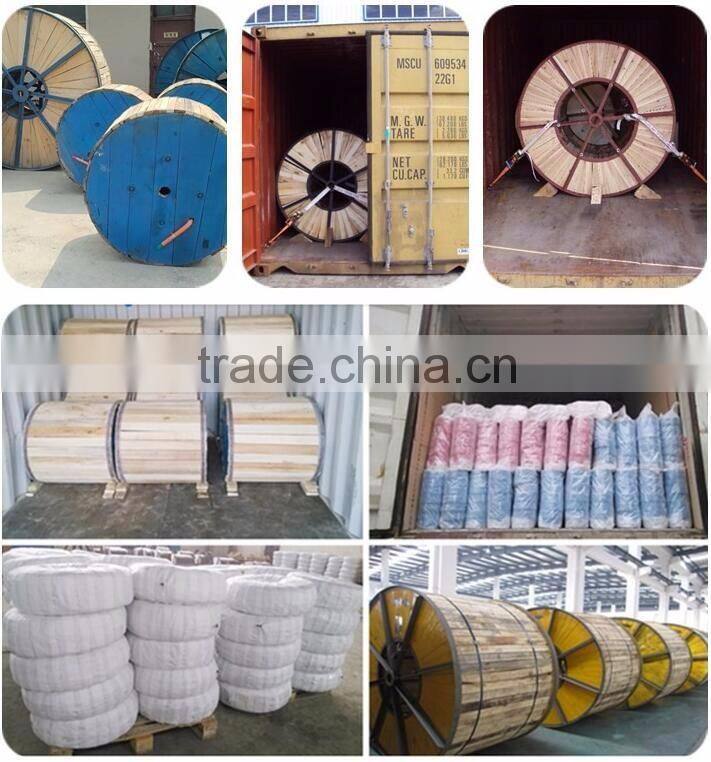

Package
Wooden drums, steel wooden drums or as per customers’ request.
