Products and Technical Parameters

QYEQ Submersible Power Cable

Products Description

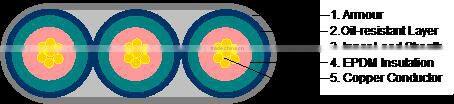

EPDM insulation, Inner lead sheath,Fiber tape covered completely over the lead sheath, Nitrile rubber jacket, Full galvanized steel (or Stainless steel or Monel) tape armour, Round type.

Production Range
Voltage: 3kV 4kV 5kV 6kV
Temperature: The permissible and long-term working temperature is 120℃(248℉).
Performing Criterion
GB/T16750-2008,API RP 11S6-2008
Application Range
The cable is applicable for using in Electricity Submersible Pump Units with rated voltage less than 3kV or 6kV. It has the excellent ability of oil-resistance, heat-resistance and corrosion-resistance.

Delivery & Packing
We use all steel corrugated reels with rapped fuming wood outside, the packing length is according to customers’ requirements, general minimum length is 1000 meters(3281 Feet); the cable are not allowed to knock against or twist, both ends should be moistureproof.

Specification and Parameters

Index of Performance

Cross Section		Conductor Diameter mm	3kV Insulation Resistance MΩ·km	3kV Leakage Current at 15.6℃ μA/km/kV	6kV Insulation Resistance MΩ·km	6kV Leakage Current μA/km/kV	DC Voltage Test For 5 Minutes
mm²	AWG	Conductor Diameter mm	3kV Insulation Resistance MΩ·km	3kV Leakage Current at 15.6℃ μA/km/kV	6kV Insulation Resistance MΩ·km	6kV Leakage Current μA/km/kV	3kV	6kV
16	5	4.62	1484	0.700	1692	0.607	27kV	35kV
20	4	5.19	1352	0.775	1548	0.656	27kV	35kV
33.5	2	6.54	1012	0.984	1170	0.853	27kV	35kV
42.5	1	7.35	919	1.083	1063	0.951	27kV	35kV
