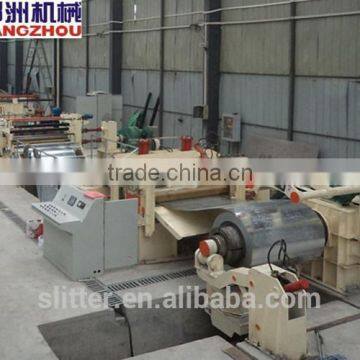

1x1600 Auto hydraulic sitting winding machine for sale

Ⅰ. Technical parameters

1. application:  Carbon steel and galvanized steel

2. coil weight :10T

3. Thickness: 0.5-1mm

4. width of coil material:  1600mm

5. coil I.D:  480-510mm

6. coil O.D:  1800mm

7. line speed :0-150m/min(0.5-1mm)

8. the diameter of slitting blade shaft: 200

9. slitting blade: φ200Xφ340X20

10. material of slitting blade: 6CrW2Si

11. the hardness of slitting blade: HRC58°-60°

12. recoiler I.D of scrap winder: φ420

13. recoiler I.D: φ508

14. tolerance of width error: ≤±0.05mm/2M

other parameters: power:380V/60Hz/3Ph

                   area of the whole machine:30m(L)x6m(W)

                   operator needed: 1 technician and 2 general workers

                   weight of the whole machine: 40T

Ⅱ. Composed devices

1. 1. Hydraulic entry coil car
2. 2. Hydraulic de-coiler
3. 3. Hydraulic press and guide and pinch device
4. 4. Hydraulic head-cutting machine
5. 5. Looper I
6. 6. Slitting machine
7. 7. Scrap winder
8. 8. Looper II
9. 9. Tension stand
10. 10. Recoiler
11. 11. Hydraulic exit coil car
12. 12. Electric control system
13. 13. Hydraulic system

 1.   Package: Machine devices will be Naked and all the roller parts will be antirust treatment to

*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.

*****We can help you to deliver the machiens to your country.

***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.

 Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
