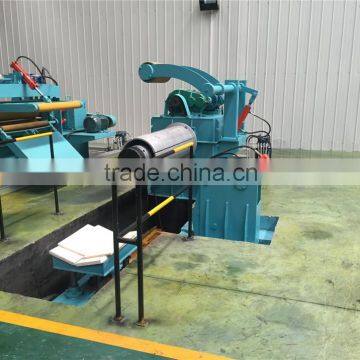

3X1250 cold roll uncoiler straightening and cut to length machine

      3X1250 cold roll uncoiler straightening and cut to length machine

JPX-(0.3-3)X1250 cut to length line is mainly used to the uncoiling, leveling and shearing of the steel coils and prepare for the next process.

I. Technical Parameter:

1. 1. Specifications:

a. applied to: Carbon Steel and galvanized steel

b. material quality :  first class steel coils of the international standard

c. tensile strength:  δb≤450Mpa  δs≤260Mpa

d. thickness:  0.5-3 mm

e. width:  1300(Max)

f. coil ID:  φ480-520mm

g. coil OD:  φ1500(Max)

h. weight:  5T(Max)

i. diameter of leveling rollers:  φ84mm

j. distance of leveling rollers:90mm,

k. material of leveling roller: GCr15,hardness:HRC58°-62°

1. 2. Finished products parameters:

a. diagonal tolerance:  ≤±2mm/2000mm

b. length tolerance:  ≤±1mm/2000mm

1. 3. Other parameters:

a. power:  380V/50Hz/3Ph (Customized)

b. line speed:  0-20m/min

c. the direction of production line: from right to left (operation panel face the machines)

d. area of the whole production line(about) 17m(L)X6m(W)

e. Weight of the whole machine machine:20T

f. The length of cutting:0.5m-4m(you can order)

g. people of operation: 1 technician and 1 general workers

h. color of the machines: grass green   or order

 Composed devices

1. Hydraulic entry coil car

2. Hydraulic de-coiler

3. Fourfold straightening machine

4. 3X1250 Hydraulic cutter

5.X-shaped hydraulic stacker

6. Hydraulic system

7. Electrical system

   Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.

   With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.

   We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
