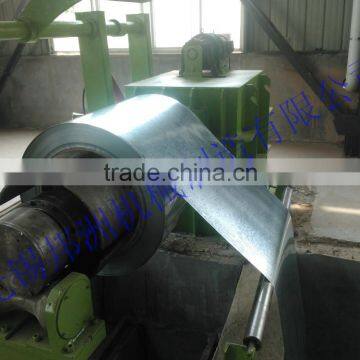

Aoto metal straightening and cut to length line machine

Aoto metal straightening and cut to length line machine

1. Technical Parameter of Straightener and  coil shearing to length machine factory  :

I  Specifications of Straightener and  coil shearing to length machine factory  :

a.  applied to : CR/HRC/HRPO/SS and Aluminium Coils and so on.

b.  material quality : first class steel coils of the international standard

c.   Tensile strength:δb≤450Mpa,δS≤280Mpa

d.   thickness:0.3-1mm

e.   width:1300(Max)

f.   coil ID:  φ508

g.   coil OD:φ1600(Max)

h.   coil weight :15T(Max)

i.     diameter of leveling rollers: φ65

j.     distance of leveling rollers:70mm,

k.     material of leveling roller:GCr15,hardness:HRC55-60

II Composed devices of  Straightener and  coil shearing to length machine factory

1.hydraulic entry car

2. Cantilever de-coiler

3. fourfold pre-leveling machine

4. Loop

5. side guide device

6. servo precision straightening machine

7. hydraulic cutter

8. transportation table

9. hydraulic lifting table

10. pneumatic stacker device

11. exit coil car

12. hydraulic system

13. electrical system

2.layout of CTL series

3. Main techinical paramters

we also manufacture and supply various stop cutting type  cut to length lines for  ( the structure is different).

1.Installation:The seller will send technician to buyer's factory, and the buyer should pay for the flight and the food and accommodation. Pay for 80 USD per day for each people .

2.Service promise: The supplier designs and makes the equipment with quality guarantee period of one year. The supplier will provide free maintenance while quality guarantee period,

except for the human mechanical fault; and collect only the part costs and the travel expense of the serviceman

About us

Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China

Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines.

Welcome to visit us as them!
