Steel Coil Straightening And Cutting Machine

       steel coil straightening and cutting machine

JPX-(0.3-3)X850 cut to length line is mainly used to the uncoiling, leveling and shearing of the steel coils and prepare for the next process.

I. Technical Parameter:

1. 1. Specifications:

a. applied to: Carbon Steel and galvanized steel

b. material quality :  first class steel coils of the international standard

c. tensile strength:  δb≤450Mpa  δs≤260Mpa

d. thickness:  0.5-3 mm

e. width:  850(Max)

f. coil ID:  φ480-520mm

g. coil OD:  φ900(Max)

h. weight:  5T(Max)

i. diameter of leveling rollers:  φ84mm

j. distance of leveling rollers:90mm,

k. material of leveling roller: GCr15,hardness:HRC58°-62°

1. 2. Finished products parameters:

a. diagonal tolerance:  ≤±2mm/2000mm

b. length tolerance:  ≤±1mm/2000mm

1. 3. Other parameters:

a. power:  380V/50Hz/3Ph (Customized)

b. line speed:  0-20m/min

c. the direction of production line: from right to left (operation panel face the machines)

d. area of the whole production line(about) 17m(L)X6m(W)

e. Weight of the whole machine machine:20T

f. The length of cutting:0.5m-4m(you can order)

g. people of operation: 1 technician and 1 general workers

h. color of the machines: grass green   or order

 Composed devices

1. Hydraulic entry coil car

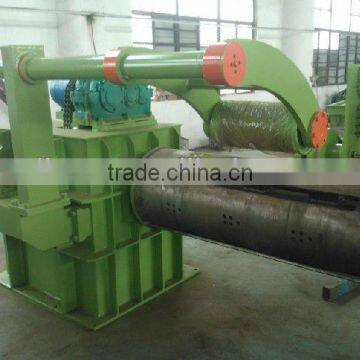

2. Hydraulic de-coiler

3. Fourfold straightening machine

4. 3X1250 Hydraulic cutter

5.X-shaped hydraulic stacker

6. Hydraulic system

7. Electrical system
