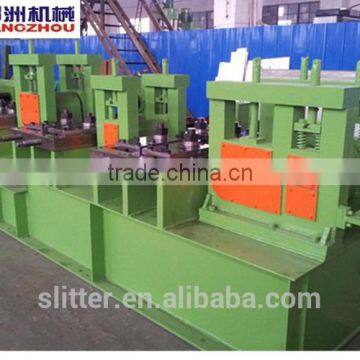

12mm hot rolled steel flat bar leveling machine, leveler

Parameters of 12mm hot rolled steel flat bar leveling machine, leveler:

1. Technical parameters

A. Applied to: carbon steel

B. Tensile strength:δb≤450Mpa,δS≤260Mpa

C. Flat bar thickness:6mm-12mm

D. Flat bar width: 25mm-200mm

2. Finished parameters

A. Precision of width: +0.3~-0.9mm

B. Precision of fixed length:0~+5mm

C. Bending:≤2.5mm/m

D. pitch of cutting: ≤2mm

3.  Other parameters

I. Line speed: 30m/min

J. Production: incessantly.

K. Operation person: 1 technician and 1 common worker.

Composed devices of 12mm hot rolled steel flat bar leveling machine, leveler :

1. Simplified de-coiler

2. 7 roller-straightener with drive

3. Chamfering and extrusion machine

4. 2 roller-pinch and press device

5. Longitudinal straightener

6. Flat surface straightener

7. Hydraulic tracking cutting machine

8. Fixed length receive table

9. Electrical control system

The layout of   12mm hot rolled steel flat bar leveling machine, leveler:

12mmx200mm best seller  hot rolled steel flat bar straightening machine, straightener  :
