12mm hot rolled steel flat bar straightening machine

                       12mm hot rolled steel flat bar straightening machine

1. Technical parameters of 12mm hot rolled steel flat bar straightening machine:

 A. Applied to: stainless steel flat bar

 B. Tensile strength: δb≤450Mpa,δS≤260Mpa

 C. Flat bar thickness: 3-12mm

 D. Flat bar width: 25-200mm

 2. Finished parameters :

 A. Precision of width: +0.3~-0.9mm

 B. Precision of fixed length: 0~+5mm

 C. Bending: ≤2.5mm/m

 D. pitch of cutting: ≤2mm

3. Other parameters:

A. Line speed: 30m/min

B. Production: incessantly.

C.Operation person: 1 technician and 1 common worker

4.Composed devices of 12mm hot rolled steel flat bar straightening machine:

1. Simplified decoiler

2. 7 roller-straightener

3. Deburing and extrusion machine

4. 2 roller-pinch and press device

5. Longitudinal straightener

6. Flat surface straightener

7. Hydraulic tracking cutting machine

8. Fixed length receive table

9. Electrical control system

The layout of 12mm hot rolled steel flat bar straightening machine:

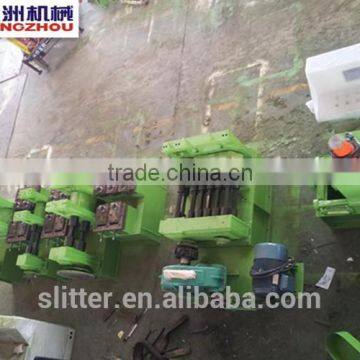

The photos of 12mm hot rolled steel flat bar straightening machine :
