BG6-12X200 Steel Flat Bar Leveling And Cutting Machine

Specifications

Parameters of BG6-12X200 steel flat bar leveling and cutting machine:

1. Technical parameters

A. Applied to: carbon steel

B. Tensile strength:δb≤450Mpa,δS≤260Mpa

C. Flat bar thickness:6mm-12mm

D. Flat bar width: 25mm-200mm

2. Finished parameters

A. Precision of width: +0.3~-0.9mm

B. Precision of fixed length:0~+5mm

C. Bending:≤2.5mm/m

D. pitch of cutting: ≤2mm

3.  Other parameters

I. Line speed: 30m/min

J. Production: incessantly.

K. Operation person: 1 technician and 1 common worker.

Composed devices of  BG6-12X200 steel flat bar leveling and cutting machine:

1. Simplified de-coiler

2. 7 roller-straightener with drive

3. Chamfering and extrusion machine

4. 2 roller-pinch and press device

5. Longitudinal straightener

6. Flat surface straightener

7. Hydraulic tracking cutting machine

8. Fixed length receive table

9. Electrical control system

The layout of BG6-12X200 steel flat bar leveling and cutting machine:

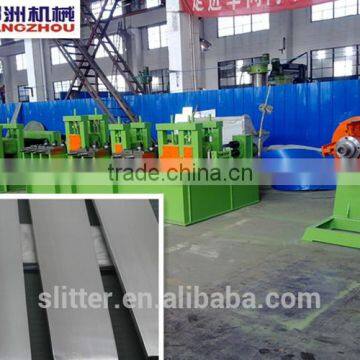

BG6-12X200 hot rolled steel flat bar straightening machine, straightener machine :
