Home > Products > Laminating Machine > Sunkist Auto Fabric to Foam Sheet Laminating Machine

Sunkist Auto Fabric to Foam Sheet Laminating Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Any port of Taiwan
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Automatic
Place of Origin	Taiwan, China	Brand Name	SUNKIST
Model Number	SA-6C Sheet Laminating Machine	Voltage	110 V~ 575 V
Power(W)	Electric power	Dimension(LWH)	L 6160 x W 2020 x H 2125 mm
Weight	about 4560 kg	Certification	CE.UL
Warranty	One year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

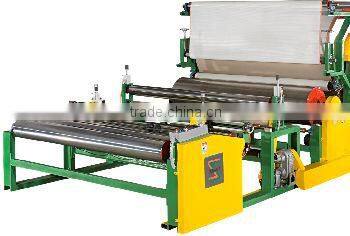

The SA-6C Sunkist Auto Fabric to Foam Sheet Laminating Machine

is for laminating foam sheet with various types of fabrics.

Product Description

Available laminating material:

Foam sheet with various
Fabrics & textile, EVA
Sheet with textile, PU, PVC
Leather etc.

Working Thickness	2 - 20 mm
Working Width	150 cm ( STANDARD )
Working Speed	ADJUSTABLE 0 - 1500M / Hr
Working Teperature	AUTO ADJUSTMENT, MAX. 200°C
Heating roller diameter	150 cm
Heating element	12 PCS, EACH PIECE IS 1 kW
Heating roller surface	BY TEFLON SHEET
Air compressor	1 SET (1HP)
Power Require	3.4 kW
Floor space	APPROX. L 6160 x W 2020 x H 2125 mm

Special Feature

1.		All the foam feeding, heating, winding up rollers and heating unit are all driven by a horizontal shaft to synchronize foam feeding, laminating speed and to get best tension for the foam sheets and textile.

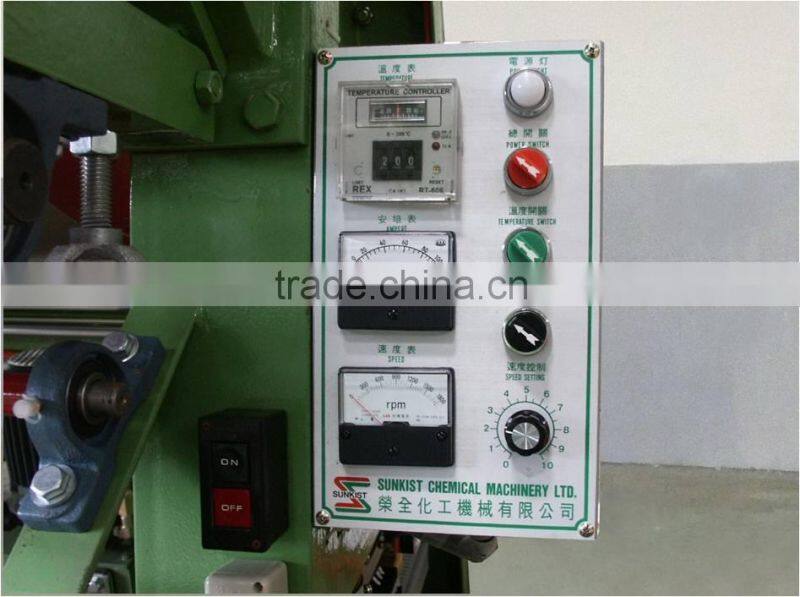

2.		The heating system is by electrical heating elements and the heating temperature can be adjust and controlled automatically.

More Product

Foam Machine

Cutting Machine

Rebonding Machine

Exhibition Picture

Company Information

SUNKIST CHEMICAL MACHINERY LTD
Our product range includes all foaming equipment, Flexible & Rigid Slabstock Flat Top High and Low Pressure Foaming machines with Vacuum or Carbon Dioxide process, Single Block Dispensers, all types of Cutting Machines, such as Auto Horizontal Cutters, Auto Circular Horizontal Cutters with vacuum tables, Vertical and Angle Cutters, CNC Contour Cutters, Long Splitter Loopers, Auto Rebounding Machines for rectangular or round blocks, Laminating Machines, Peeling Machines, Chipping Machines, Milling machines, Sealing Machines and machines for bedding industry, such as Spring Machines and Quilting Machines.
We are confident to provide any kind of machinery needed in the Polyurethane Foam Plant.
We have received over 48 patents and "IT'S VERY WELL MADE IN TAIWAN" is the symbol of our products and after-sales service. We love our work fervently and will continue to strive for the best.

====================================================
