High Efficiency Concrete Precast Members Equipment Production Machine

Product Description

Machine Parts

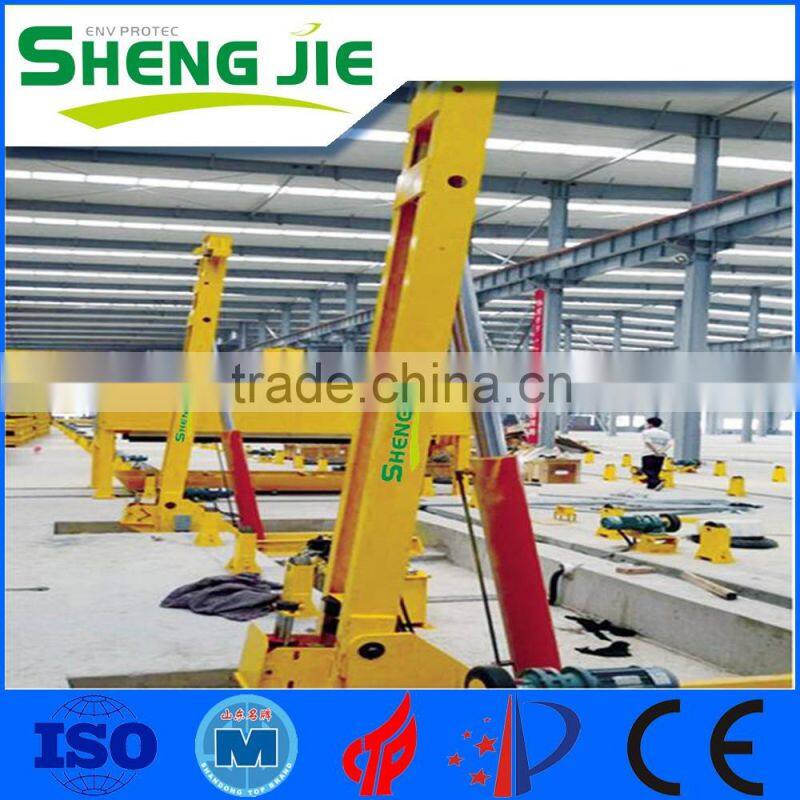

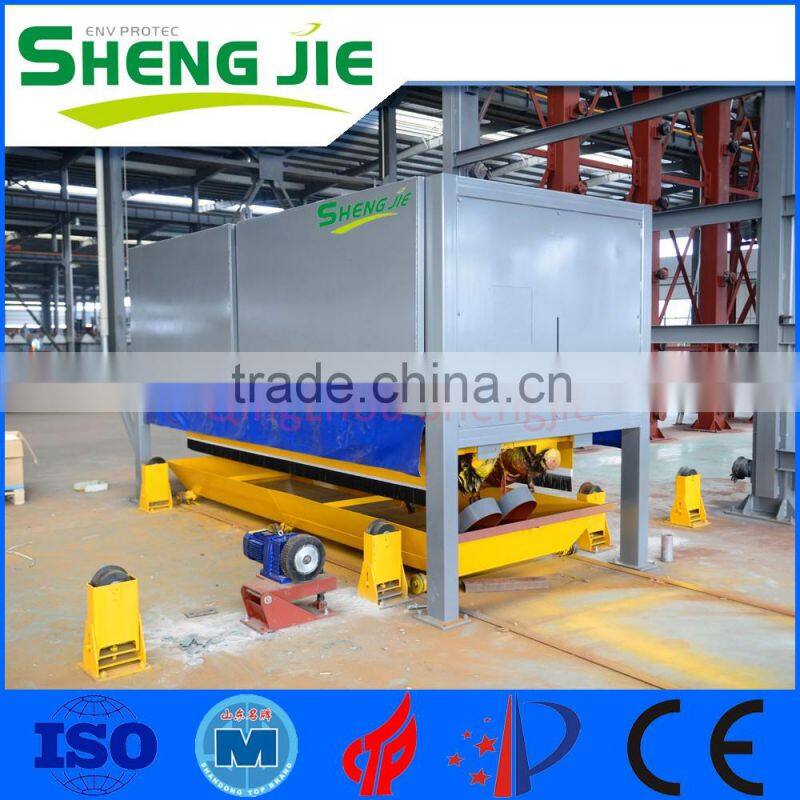

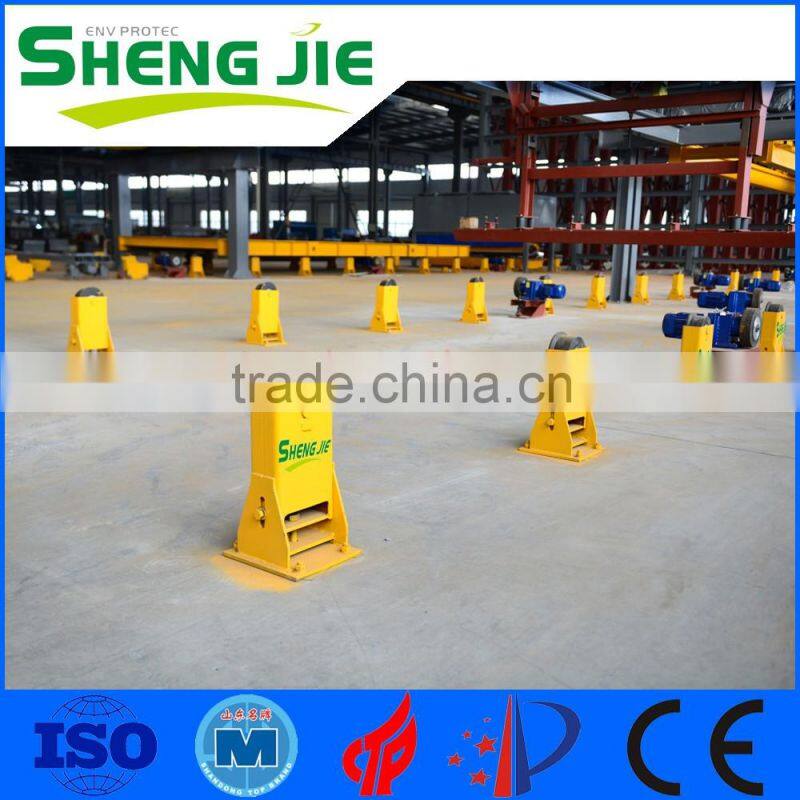

The guide pulley is driven by electric friction wheel, which ensures the normal operation of formwork pallet.

It is an esstential part in the pallet circulation system.

Machine Parts

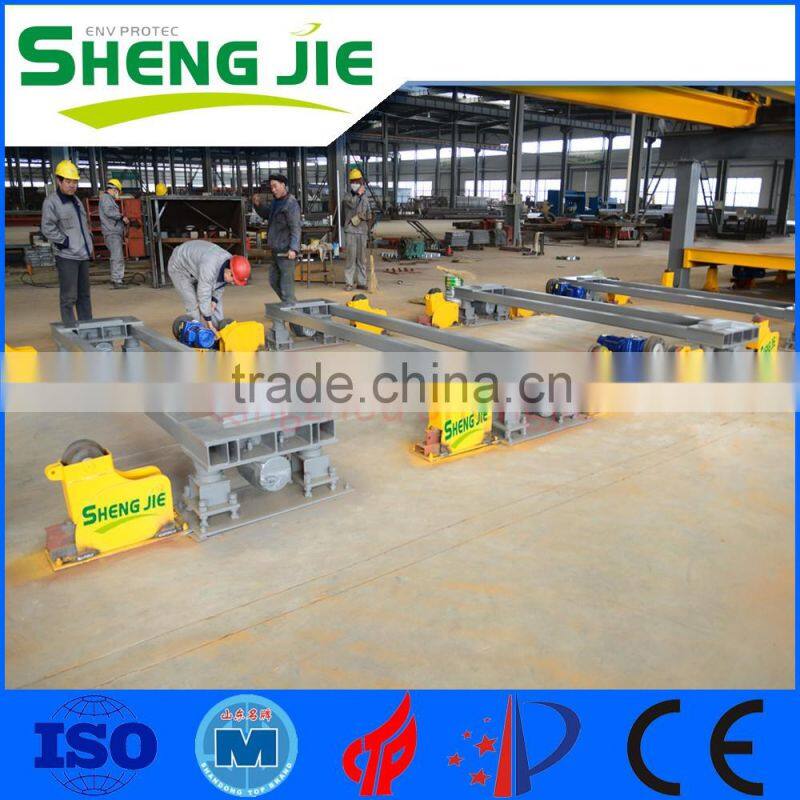

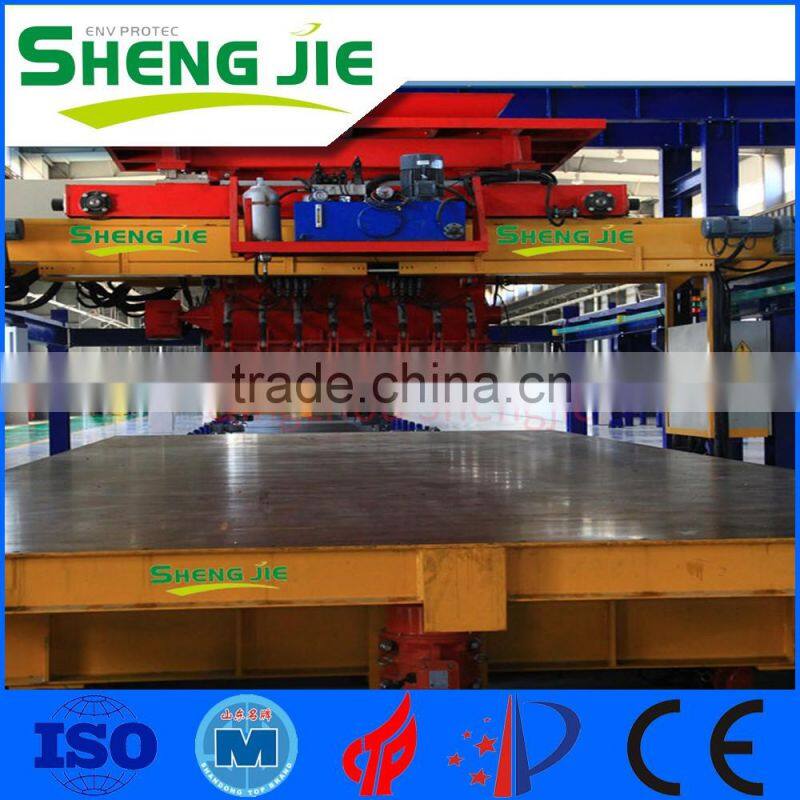

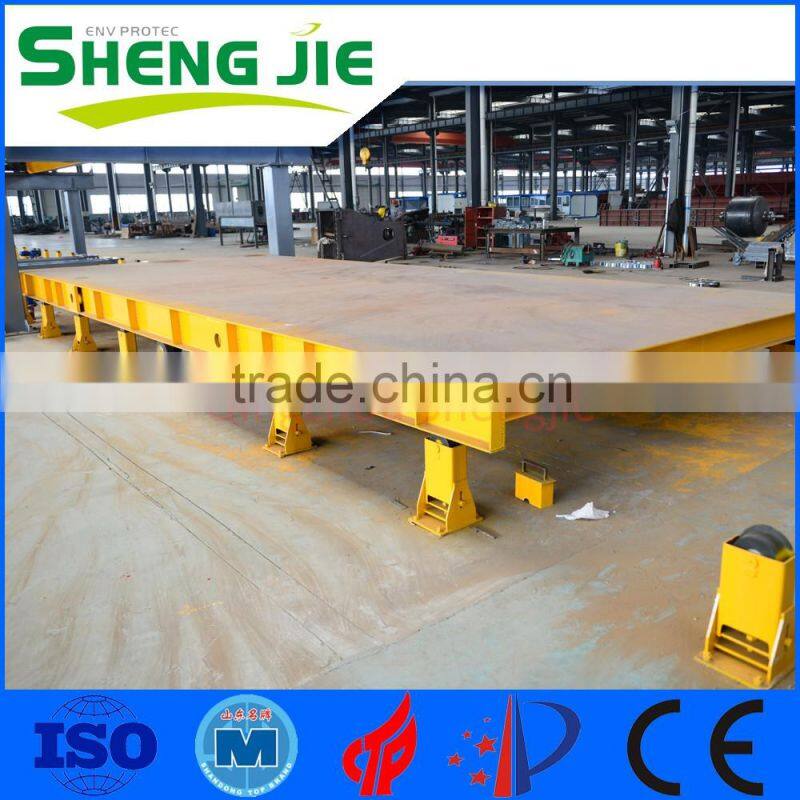

Name:Formwork Pallet

Standard mould size(L*W): 9000mm*3500mm

Our formwork pallet are made with a welded steel profile construction with the forming area that is ground smooth.

The formwork pallets are transported lengthways through the pallet circuit via the guide pulley.

Thickness of surface plate 10mm

Bearing Capacity（kg/m2） 500/650

Machine Parts

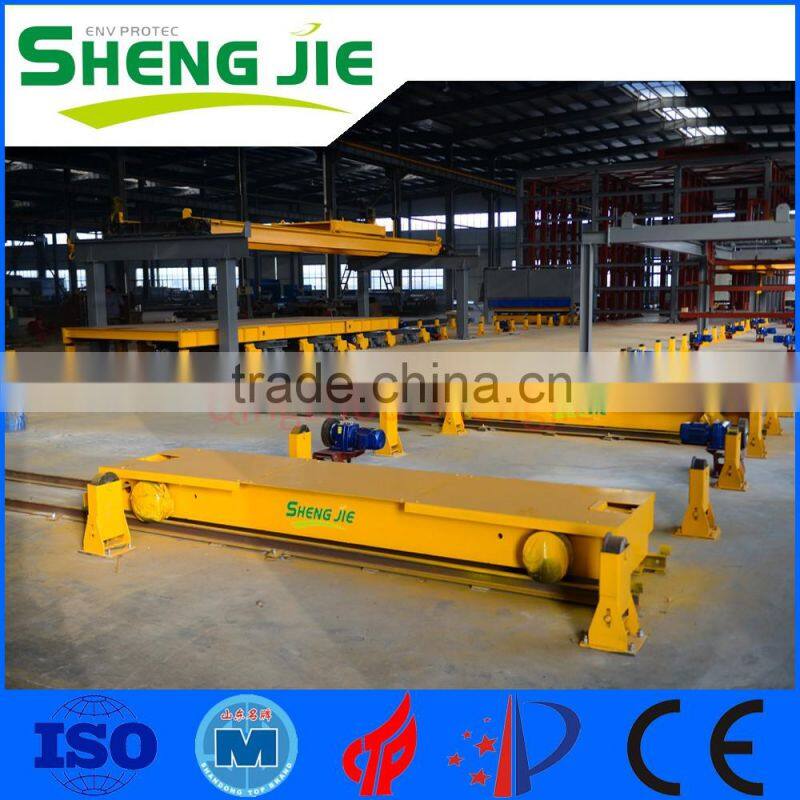

Ferry machine is generally placed in the end area of production line, which is used for shifting direction of formwork pallet.

Machine Parts

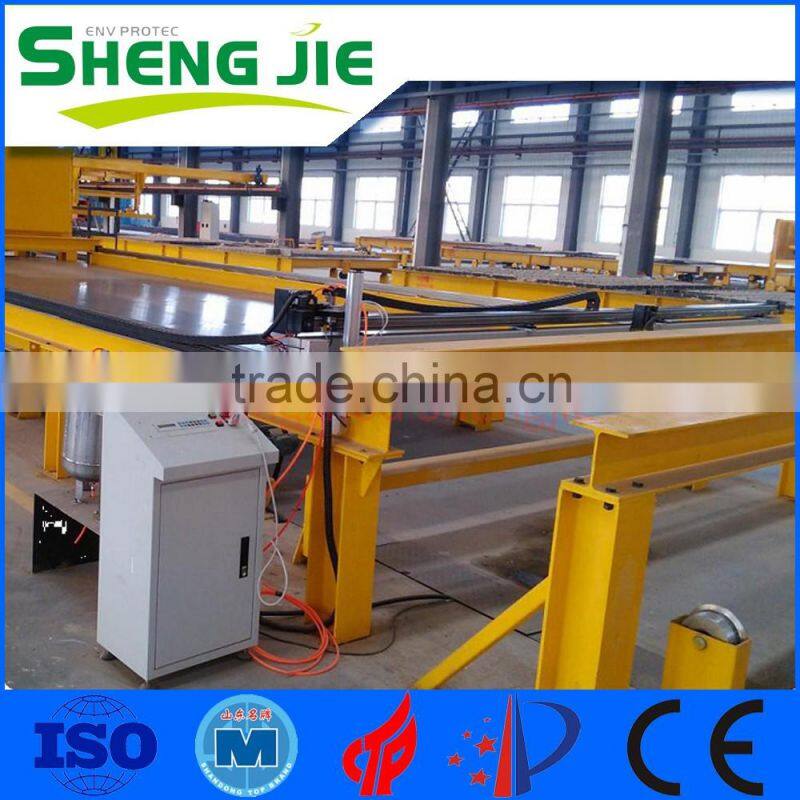

Name:Cleaning Machine

Clean work spaces on the mobile pallet are a decisive quality factor for the production of precast concrete parts.

During mobile formwork pallet pass, oil spray machine will automatically spary demoulding agent with the aids of atomizing system. It is also equiped with return oil system.

Extraordinaryily time-saving by direct use of availbale CAD date for positioning the concrete parts on the mobile pallets.
It is characterised by high accuracy and reliability.

Machine Parts

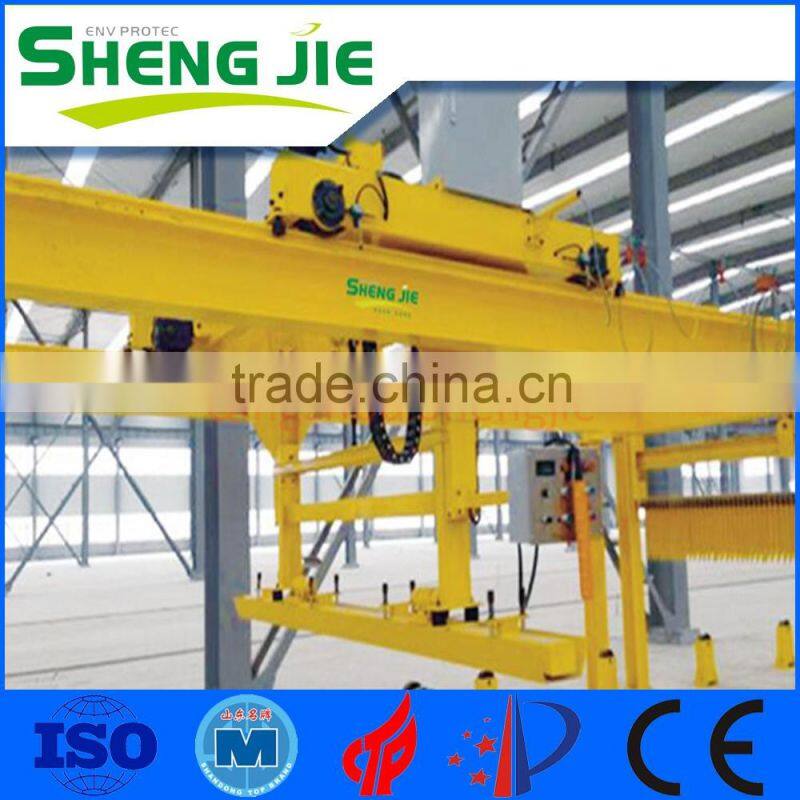

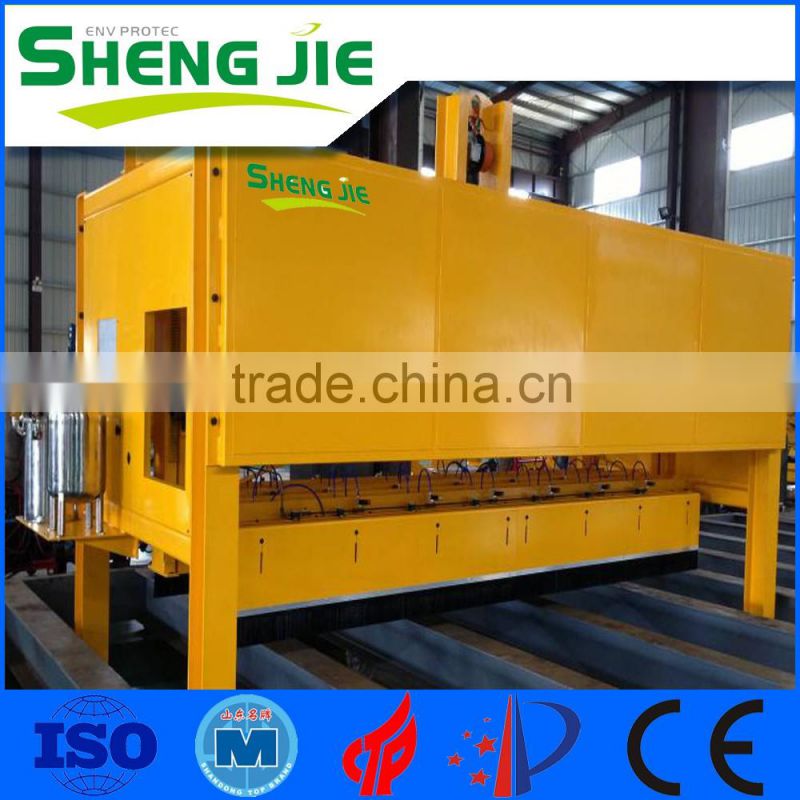

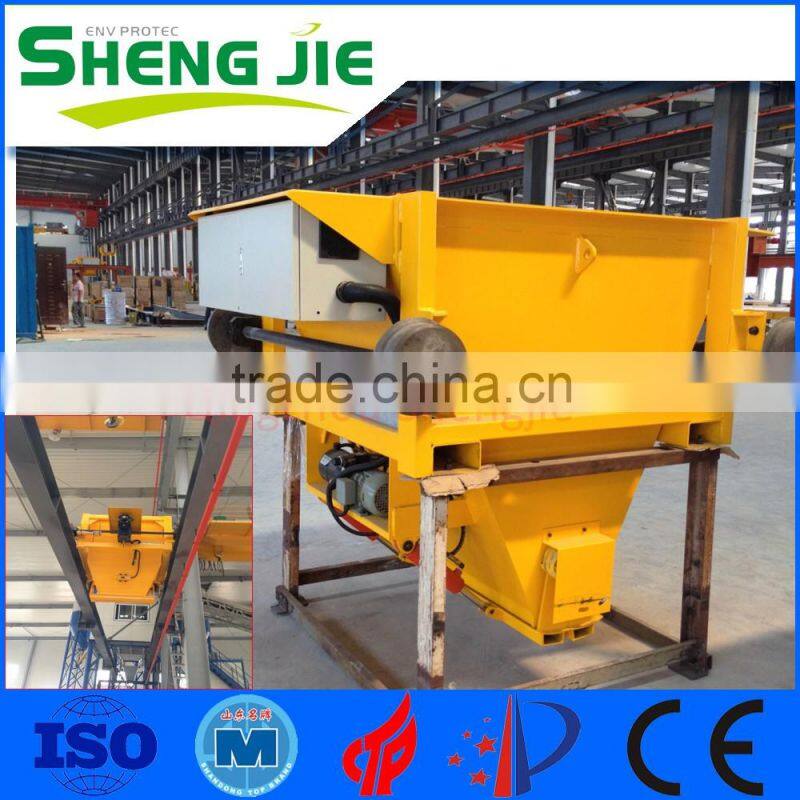

Name: Concrete Spreader/Distributor
A smart concrete spreader or distributor in a bridge design provides for a homogeneous discharge of the concrete in the precast plant.

Machine Parts

Name: Vibration Table
The low-frequency vibration table guarantees high quality concrete compaction without concrete segregation in the vicinity of the reinforcement.

Machine Parts

Leveling machine ensures the level surface quality of precast concrete element with controllable walking speed.

Machine Parts

Surface napping machine is used to enchance surface unevenness of precast concrete elements.

Machine Parts

Name: Polishing Machine

One of the highlights is the particularly space-saving smoothing platform, which provides for outstanding surface qualities.

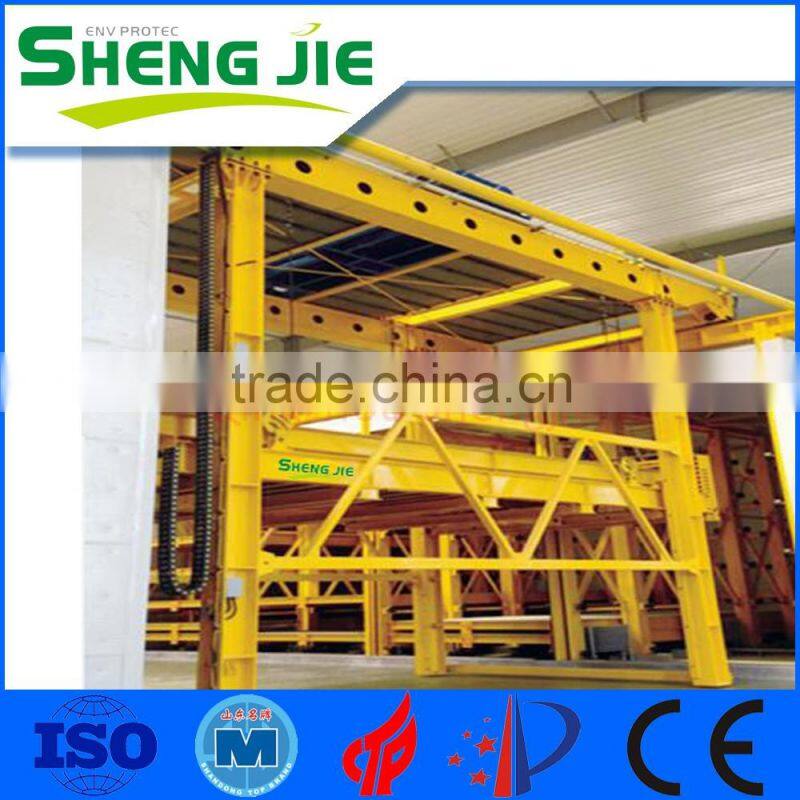

Automatic storage and retrieval machines are used to put freshly concreted pallets into a shelf system and to remove pallets with the finished concrete parts from the shelf system.

Machine Parts

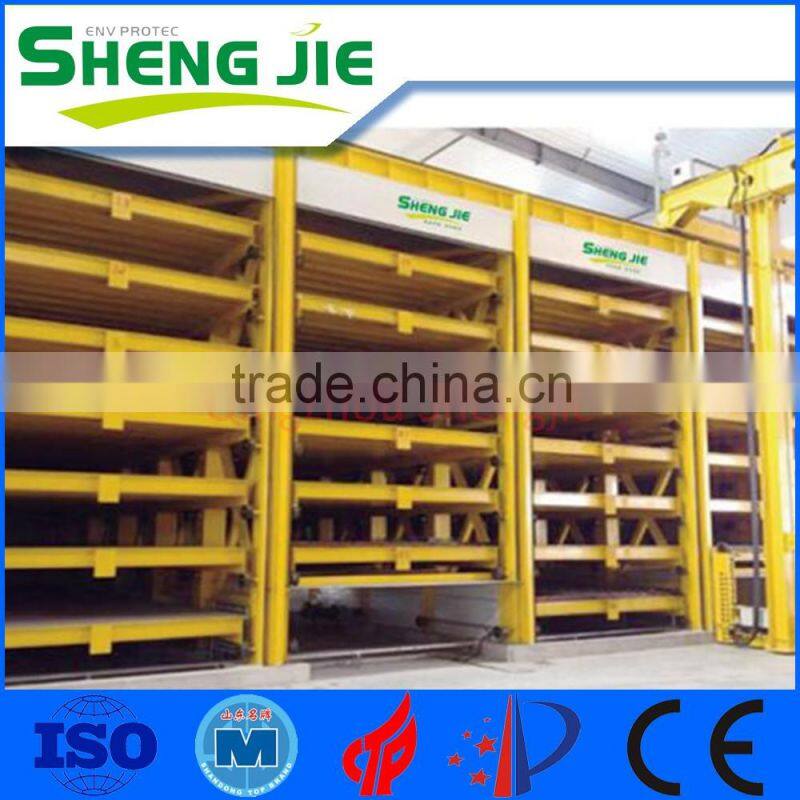

Name: Curing Chamber

    The pallet is transported via the storage and retrieval machine to the curing chamber.

    The curing chamber area should ideally be enclosed with insulating panels.

    Heating systems control the room temperature and air humidity in the curing chamber. Depending on the situation, different types of heating systems are used (warm air, steam, convection, etc.).

Machine Parts

In the tilting table, it is possible to vertically remove the precast concrete elements through hydraulically operated tilting devices that usually place the casing at a tilting angle of 80°-85°.
