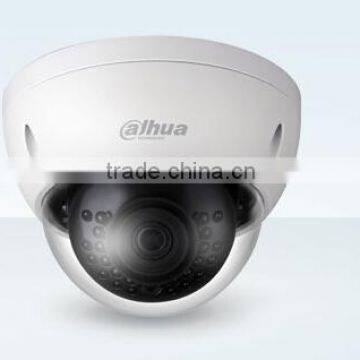

H.264 POE 3MP HD Network Mini IR Dome Dahua IPC-HDBW1320E Network Camera

  H.264 POE 3MP HD Network Mini IR Dome Dahua IPC-HDBW1320E Network Camera

>1/3” 3Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>Max 20fps@3M(2048x1536) (2304×1296)&25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm optional)
>Max. IR LEDs Length 30m
>IP67, IK10, PoE

Model :DH-IPC-HDBW1320E

Camera

Image Sensor:1/3” 3Megapixel progressive scan CMOS
Effective Pixels:2304(H) x1536(V)
Scanning System :Progressive
Electronic Shutter Speed:Auto/Manual, 1s~1/100000s
Min. Illumination:Color: 0. 1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio:More than 50dB
Video Output:N/A

Camera Features

Max. IR LEDs Length:30M
Day/Night:Auto(ICR)/Color/B/W
Backlight Compensation:BLC / HLC / DWDR
White Balance:Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas

Lens

Focal Length:3.6mm(2.8mm optional)
Max Aperture:F2.0(F2.0)
Focus Control:Manual
Angle of View:H: 81°(92°)
Lens Type:Fixed lens
Mount Type:Board-in Type

Video

Compression:H.264/ H.264H/ H.264B/ MJPEG
Resolution:3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate:Main Stream 3M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate:H.264: 32K ~8192Kbps
Corridor Modez:Support

Audio

Compression:N/A
Interface:N/A

Network

Ethernet:RJ-45 (10/100Base-T)
Wi-Fi:N/A
Protocol:IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility:ONVIF ,CGI
Max. User Access:20 users
Smart Phone:iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot:N/A
RS485:N/A
Alarm:N/A
PIR Sensor Range:N/A

General

Power Supply:DC12V, POE (802.3af standard)
Power Consumption:<4W(IR on)
Working Environment:-30°C~+60°C, Less than 95%RH
Ingress Protection:IP67
Vandal Resistance:IK10
Dimensions:Φ110mm×81mm
Weight:0.47kg
