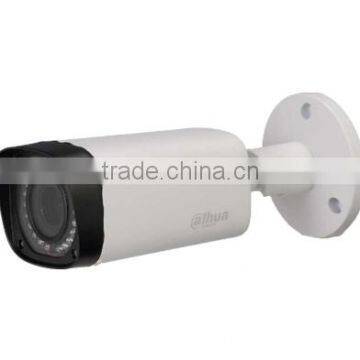

Dahua IPC-HFW4300R-Z 2.8mm ~12mm varifocal motorized lens network camera 3MP IR ip camera POE cctv camera english firmware

  Dahua IPC-HFW4300R-Z 2.8mm ~12mm varifocal motorized lens network camera 3MP IR ip camera POE cctv camera english firmware

> 1/3 "3Megapixel progressive scan CMOS Aptina company
> H.264 and MJPEG dual stream encoding
> Maximum 20fps3M (2048 × 1536), 25 / 30fps1080P (1920 × 1080)
> DWDR, day / night (ICR), 3DNR, AWB, AGC, BLC
> Multiple Network monitoring: web browser, CMS (DSS / PSS) DMSS
> 2.8 mm ~ 12 mmElectric Zoom Lens

> Max. Infrared light length 30 m
> IP66, POE

Model :DH-IPC-HFW4300R-Z

Camera

Image Sensor: 1/3” 3Megapixel progressive scan CMOS

Effective Pixels:2048(H)x1536(V)

Scanning System :Progressive

Electronic Shutter Speed:Auto/Manual, 1/3(4)~1/10000s

Min. Illumination:0. 1Lux/F1.8 (Color)

S/N Ratio:More than 50dB

Video Output:1

Camera Features

Max. IR LEDs Length:30M

Day/Night:Auto(ICR)/Color/B/W

Backlight Compensation:BLC / HLC / DWDR

White Balance:Auto/Manual

Gain Control:Auto/Manual

Noise Reduction:3D

Privacy Masking:Up to 4 areas

Lens

Focal Length:2.8mm (2.8mm-12mm,optional)

Max Aperture:F1.4

Focus Control:Autofocus page in IE

Angle of View:H: 92 ° ~28 °

Lens Type:Electric / auto iris (DC)

Mount Type:Plate

Video

Compression:H.264/ MJPEG

Resolution:3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate:Main Stream 3M(1~20fps)/1080P/720P(1 ~ 25/30fps)

Sub Stream: D1/CIF(1 ~ 25/30fps)

Bit Rate:H.264: 32K ~8192Kbps

Audio

Compression:N/A

Interface:N/A

Network

Ethernet:RJ-45(10/100Base-T)

Wi-Fi:N/A
Protocol:IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Compatibility:ONVIF ,PSIA,CGI

Max. User Access:20 users

Smart Phone:iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot:Micro SD Max 64GB

RS485:N/A

Alarm:N/A

PIR Sensor Range:N/A

General

Power Supply:DC12V POE (802.3af standard)

Power Consumption:Maximum 8.5W (motorized lens: + 2W)

Working Environment:-30°C~+60°C, Less than 95%RH

Ingress Protection:IP66

Vandal Resistance:N/A

Dimensions:212.8 mm × 72 × 80 mm

Weight:0.65 (0.65 kg including packaging)
