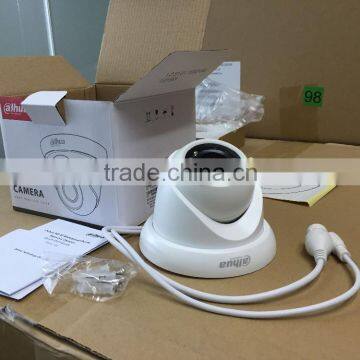

3MP 1080P Full HD Network Small IR Eyeball dahua IPC-HDW1320S Day And Night Vision Camera

  3MP 1080P Full HD Network Small IR Eyeball IPC-HDW1320S Day And Night Vision  Camera

>1/3” 3Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>Max 20fps@3M(2048×1536) & 25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm, 6mm optional)
>Max. IR LEDs Length 30m
>IP67, PoE

Model :DH-IPC-HDW1320S

Camera

Image Sensor:1/3” 3Megapixel progressive scan CMOS
Effective Pixels:2048(H) ´ 1536(V)
Scanning System :Progressive
Electronic Shutter Speed:Auto/Manual,1/3s~1/30000s
Min. Illumination:Color: 0. 045Lux/F2.1(Color), 0Lux/F2.1(IR on)
S/N Ratio:More than 50dB
Video Output:N/A

Camera Features

Max. IR LEDs Length:30M
Day/Night:Auto(ICR)/Color/B/W
Backlight Compensation:BLC / HLC / DWDR
White Balance:Auto/Manual
Gain Control:Auto/Manual
Noise Reduction:3D
Privacy Masking:Up to 4 areas

Lens

Focal Length:3.6mm(2.8mm 6mm optional)
Max Aperture:F2.0(F2.0,F1.9)
Focus Control:Manual
Angle of View:H: 81°(92°,55°)
Lens Type:Fixed lens
Mount Type:Board-in Type

Video

Compression:H.264/ H.264H/ H.264B/ MJPEG
Resolution:3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate:Main Stream 3M(1~20fps)/1080P(1 ~ 25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate:H.264: 4kbps ~8192Kbps
Corridor Modez:Support

Audio

Compression:N/A
Interface:N/A

Network

Ethernet:RJ-45 (10/100Base-T)
Wi-Fi:N/A
Protocol:IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility:ONVIF ,CGI
Max. User Access:20 users
Smart Phone:iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot:N/A
RS485:N/A
Alarm:N/A
PIR Sensor Range:N/A

General

Power Supply:DC12V, POE (802.3af standard)
Power Consumption:<3.7W(IR on)
Working Environment:-30°C~+60°C, Less than 95%RH
Ingress Protection:IP67
Vandal Resistance:N/A
Dimensions:Φ108mm×84mm
Weight:0.25Kg(with package 0.38Kg)
