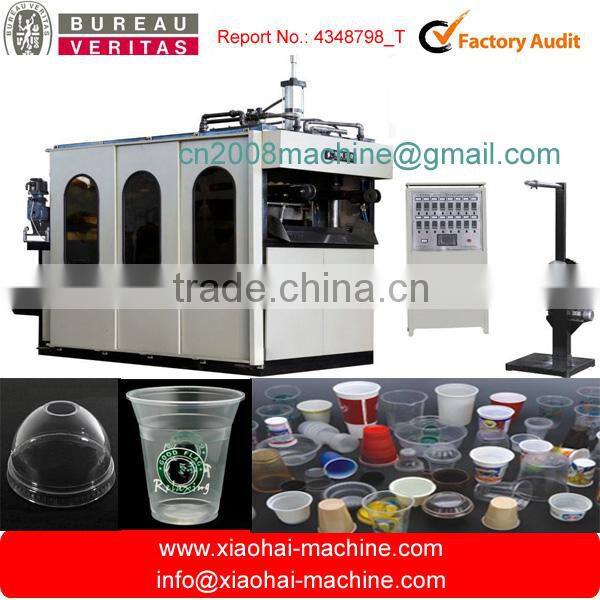

plastic cup machine
- 30 Set / Sets per Month
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Condition | New | Product Type | Plastic Cup | |
| Place of Origin | Zhejiang, China | Brand Name | XIAOHAI | |
| Model Number | CK660 plastic cup machine | Voltage | 380v | |
| Power(W) | 30kw | Dimension(L*W*H) | 3000x1800x2500mm | |
| Weight | 4000kg | Certification | CE | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.plastic cup machine to make drinking cups, ice-cream cups2. can be with edge curing machine.
····························································································································
Plastic Cup machine ····························································································································
Usage:
The machine is to make drinking cups, ice-cream cups, packing boxes and so on plastic products.
1. This machine is mainly used for producing disposable plastic vessels,such as tea cup,milk cup,jelly cup,instant noodles bowl and other plastic product,etc.It can produce such as PP,PE,PS and ABS,etc,
2.The machine can finish producing product at one time through sheet feeding, heating, stretching, forming and side-cutting, etc.This equipment adopts microcomputer control with semiautomatic and automatic functions
Specification:
Sheet Materials | PP.HIPS.PET and so on |
Sheet Width | 400-630mm |
Sheet Thickness | 0.3-2mm |
Max.forming Area | 620 × 300mm2 |
Max.forming depth | 120mm |
Forming Pressure | 0.5-0.8Mpa |
Productivity | 20-30 (stroke/min)(many pieces per stroke) |
Rated Heating Power | 55kw |
Starting Power | 7.5kw |
Total Weight | 4.0(ton) |
Water Temperature | 30°C |
Overall Dimeensions | 3300 × 1800 × 2500mm3 |
Travel Length Adjustable | 100-400mm |
Remark:
We also have wider width machine,if you want to make wider width film,please feel free to contact us,we will provide you details.thanks.
