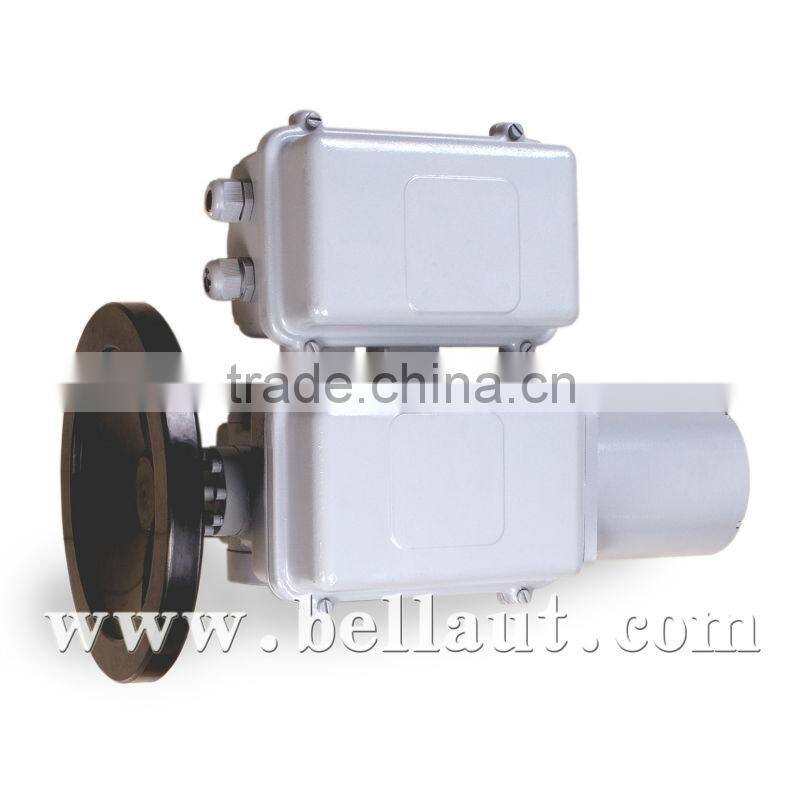

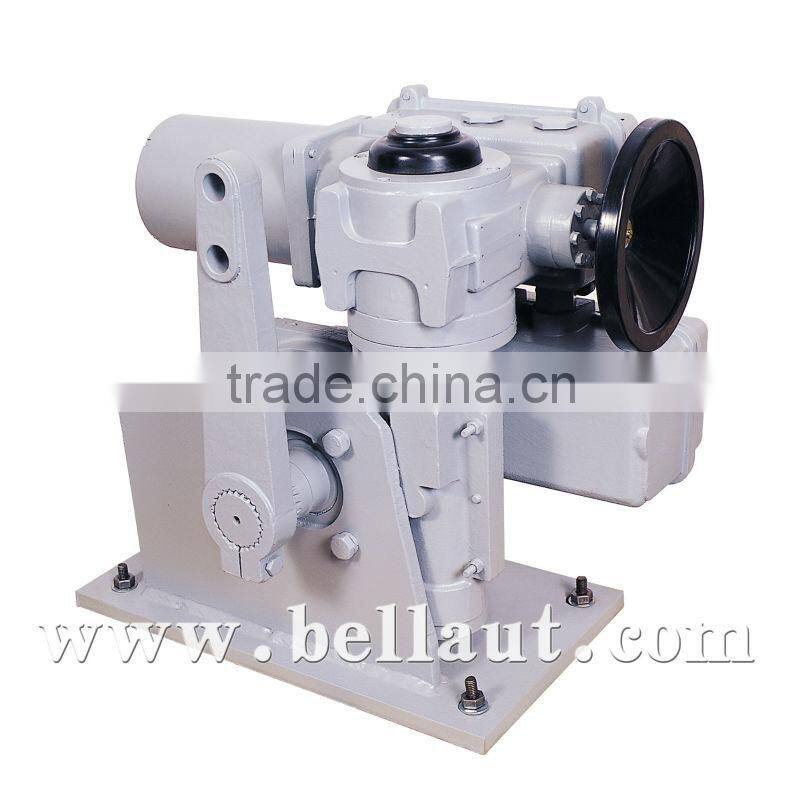

AS/B+RS Series Electric Actuator Widely Applied Into Automatic Control Industry

Specifications

Widely applied in automatic industry, especially power plant, cement mills, metallic mills, food industry, chemical industry.

ELECTRONIC ACTUATOR/ PROFIBUS ACTUATOR/ INTELLIGENT ACTUATOR

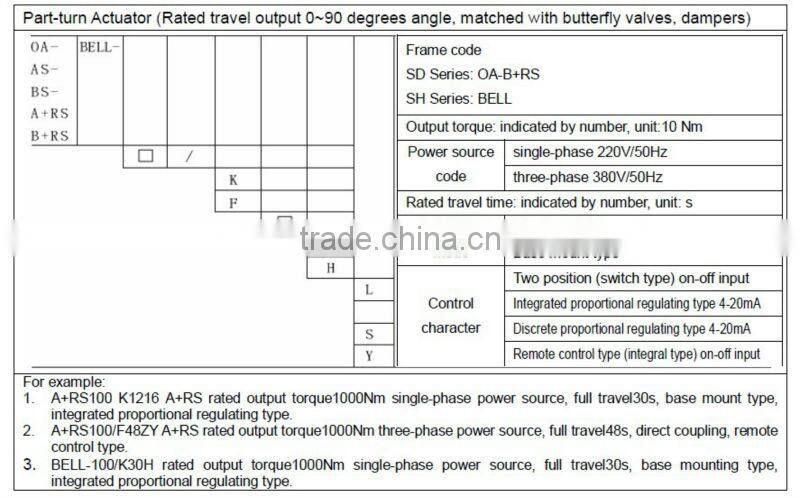

MODEL:

AS10, AS25, BS60, A+RS100, B+RS160, B+RS250, B+RS400, B+RS600,B+RS800,B+RS1000,B+RS1200 electric actuator......

ELECTRIC ACTUATOR FEATURES:
1. The electric actuator is manufactured with introduced technology of new generation.
The SD, SH products are manufactured with the new generation technology introduced from France, and assembled in China with the key component imported from abroad. The performance-price ratio is advantageous over the product completely manufactured overseas. These series products are compact in size, light in weight, with complete functions, and can receive directly various DCS system signals from the main control room, realizing switchover among three statuses. i.e. remote automatic/remote manual/local, to meet the demand of various
operation conditions.
2. Integrated product with high accuracy
Our electric actuator output displacement accurately positioned, the integrated proportional actuator combines functions if position transmitter and amplifier, realizing a real integration, and receive signal 4-20mA out put signal 4-20mA.
3. Bidirectional over torque protection function
When the valve is operating in normal status, in case the motor is blocked due to accident or blockage of the valve, the power of the system will be automatically cut off. Consequently causing stop of the electric motor, thus preventing the main machine from damage, simultaneously generating fault warning signal to prompt the operators.
4. Over travel protection function of the electric actuator
5. Signal interruption protection function of valve actuator
6. Automatic switchover function of motorized actuator

7. Electric braking function of the electric motor

8. The high-performance servo motor is equipped with overheat, phase cutoff protection functions

9. Relatively strong resistance to interferences.

Main Technical Specifications

The following specifications are principally for proportional regulation type; items 1,2,3,4, 5 and 6 are not applicable for remote control and switch type.
1) Input signal: 4-20mA DC
2) Input channel resistance: 250 Ω
3) Number of input channel: 1
4) Basic error: 1%, 2.5%
5) Backlash 1.5%
6) Dead zone: 0.5-3% continuously adjustable (can be adjusted according to system requirement)
7) Dumping character: Free of swing
8) Voltage of power supply Three-phase 380V-50Hz Single-phase 220-50Hz
9) Operation environment: Temperature: integrated type:-10-+55°C discrete type:-25-+70°C Humidity:below85%, free of corrosive atmosphere in the surrounding
10) Protection class: In conformity with IEC145 IP65
(i.e. for indoors or outdoors under the rain canopy, with an exception that discrete type for indoor installation.)
11) Protection of signal interruption:
At the option of fully-open, fully-closed or remain original position, which can be specified at time of ordering, it has been set to remaining original position mode when delivered.
