5/2inch Pneumatic Globe Valve for Steam
- Tianjin xingang port
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Medium Pressure | Power | Pneumatic | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Other, water,gas,steam,oil etc | Port Size | DN25~DN200 | |
| Place of Origin | Tianjin, China | Model Number | BGTQ,BAWQ | |
| Brand Name | BELL | Application | General |
Product Description
5/2inch pneumatic globe valve for steam
Feature

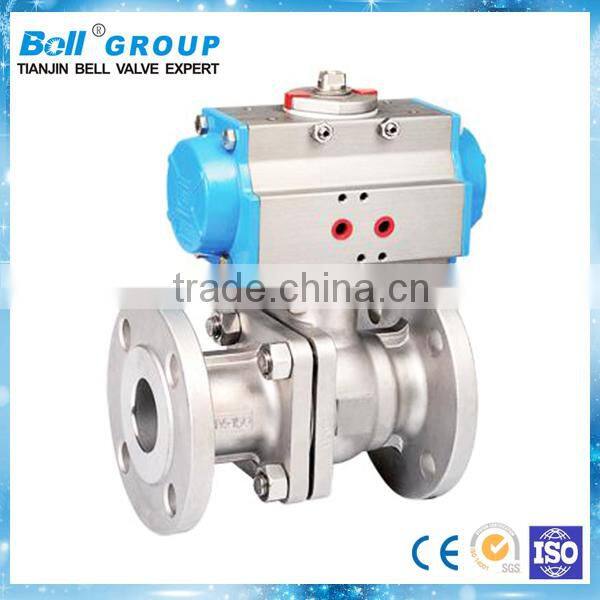

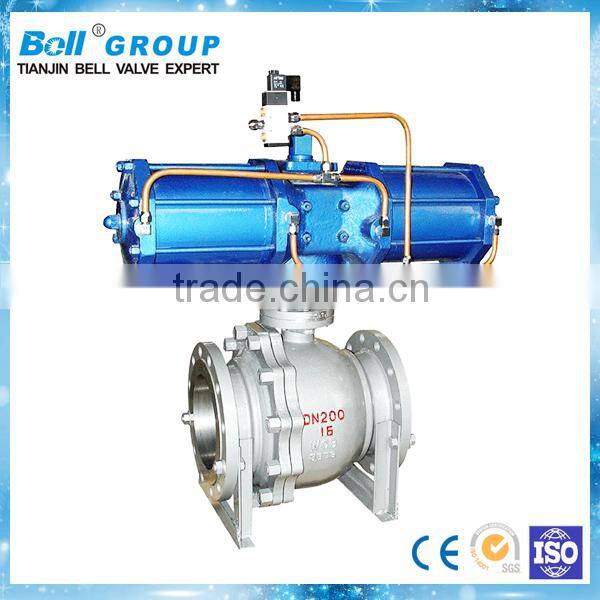

· BGTQ series pneumatic ball valve composed by the BGT series actuator and ball valve,
it is smaller diameter pneumatic ball valve.
· BAWQ series pneumatic ball valve composed by the BAW series actuator and ball valve,
it is smaller diameter pneumatic ball valve.
· According to user requirements, can be equipped with positioners, air filter regulator, limit switch, hand wheel, solenoid valve etc attachment.
·The pneumatic actuator equipped with solenoid valve, as a cut off valve.
· The pneumatic actuator equipped with electrical positioner,as a regulating valve.
·BGT series has small size,light weight,Reliable performance, flow capacity, particularly suitable for
medium viscous, containing particles, fiber nature of the occasion.
· Reliable performance, flow capacity, particularly suitable for medium viscous, containing particles,
fiber nature of the occasion.
· Widely used in cement, food, environmental protection, light industry, petroleum, paper, chemical and other
industrial control systems.
Ball valve and pneumatic actuator Combination & assembly table
ball valve  | DN mm Normal Diameter  | 25  | 40  | 50  | 65  | 80  | 100  | 125  | 150  | 200  | |
torque Nm  | 100  | 250  | 600  | 1600  | |||||||
with BGT series actuaotr  | double acting  | BGT92  | BGT118  | BGT160  | BGT254  | ||||||
single acting  | BGT118 K5  | BGT160 K5  | BGT210 K6  | BGT350 K5  | |||||||
with BAW series actuator  | double acting  |
  |
  | BAW13  | BAW17  | ||||||
Single acting  | BAW13S  | BAW17S  | BAW20S  | BAW28S  | |||||||
pressure class: 1.6MPa 2.5MPa,When pressure is 4.0MPa,6.4MPa,should use larger pneumatic actuator.
Note:large size pneumatic ball valve,we can customerized according to your requirement.
Main parameters
Body type: Straight through casting ball valve
Nominal Diameter: DN25 ~ DN300
Nominal pressure: 1.6MPa, 4.0MPa, 6.4MPa
Connection: flange connection according to JB79-59 etc.RF flange
Body material: cast steel, stainless steel
Packing: V-type PTFE, asbestos, graphite
Valve Core Material: Stainless steel,Carbon steel platinum plating ect.
Leakage : less than rated capacity 10-8

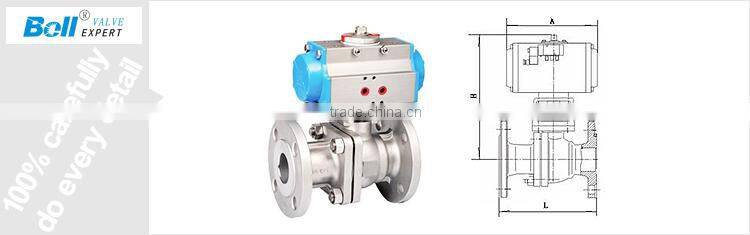

Normal Diameter  | 25  | 40  | 50  | 65  | 80  | 100  | 150  | 200  | |
L  | 1.6MPa  | 140  | 180  | 200  | 220  | 250  | 280  | 360  | 500  |
2.5MPa  | 160  | 200  | 220  | 250  | 280  | 320  | 360  | 500  | |
4MPa  | 160  | 200  | 220  | 250  | 280  | 320  | 360  | 500  | |
6.4MPa  | 180  | 220  | 250  | 280  | 320  | 360  | 500  | 600  | |
H  | 279  | 299  | 388  | 398  | 408  | 476  | 610  | 640  | |
A  | 125  | 125  | 294  | 294  | 294  | 378  | 603  | 603  | |

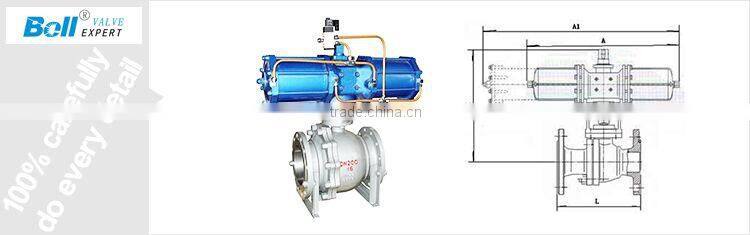

Nominal Diameter  | 25  | 40  | 50  | 65  | 80  | 100  | 150  | 200  | |
L  | 1.6MPa  | 140  | 180  | 200  | 220  | 250  | 280  | 360  | 500  |
2.5MPa  | 160  | 200  | 220  | 250  | 280  | 320  | 360  | 500  | |
4MPa  | 160  | 200  | 220  | 250  | 280  | 320  | 360  | 500  | |
6.4MPa  | 180  | 220  | 250  | 280  | 320  | 360  | 500  | 600  | |
H  | 422  | 442  | 506  | 516  | 526  | 598  | 705  | 735  | |
A  |
  |
  |
  |
  |
  | 600  | 800  | 800  | |
A1  | 1020  | 1020  | 1260  | 1260  | 1260  | 1510  | 2060  | 2060  | |
Note:large size pneumatic ball valve can customerized according to customers’ requirement.

CE security certificate awarded by EU appointed Britain certificate authority
The ISO9001 quality certification
China famous brand certificate
China AAA level credit enterprise certificate
Tianjin Enterprises Association Member
China quality assurance certificate
The Qualified Supplier Certificate Issued by Beijing Capital Iron & Steel Group
1. How about your price?
Although we are brand-name products, but our prices are very favorable and competitive.
Customer from all over the world to purchase our products, because our best price.
2. How long is your warranty?
Our Warranty is 12 month
3. What’s your payment?
Our Payment could be
(1) 100% T/T
(2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
4. What’s your beneficiary bank?
Our beneficiary bank have :
(1)Alibaba one touch account
(2) Alibaba Trade Assurance account
(3) Bell Group's bank account
(4)Tianjin Bell company bank account
(5)Paypal
(6)Western Union
(7) China's domestic use RMB remittance
Specific accounts can be found on our website.
5. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
6. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
