Home > Products > All Manual Valve > Handle Wafer Butterfly Valve, Center Line Butterfly Valve

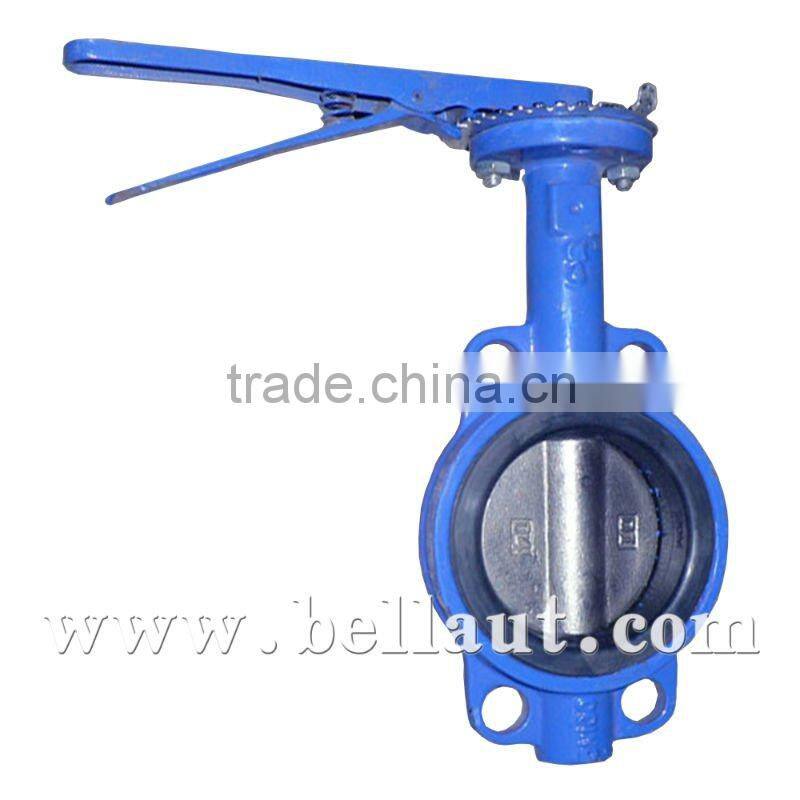

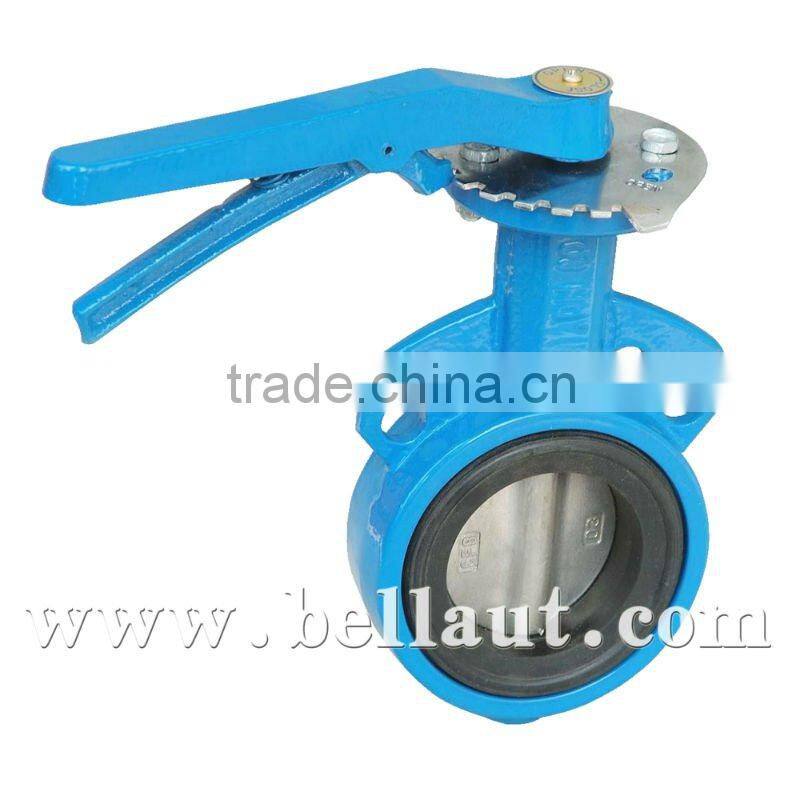

Handle Wafer Butterfly Valve, Center Line Butterfly Valve
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Other, Medium Pressure, 1.0Mpa, 1.6Mpa | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Port Size | DN40---DN1200 | Place of Origin | Tianjin, China | |
| Brand Name | BELL |
Product Description
Specifications
High quality with competitive priceStable performance
Professional manufacture of wafer butterfly valve
CE ISO

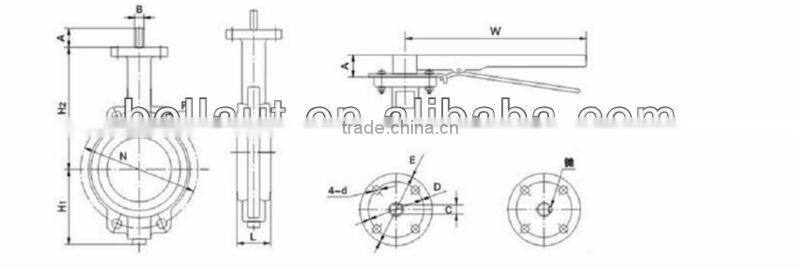

Handle wafter Butterfly Valve Series

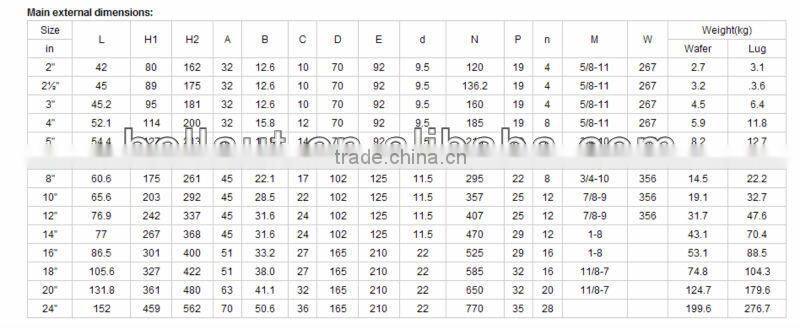

Specification:
1-1/2’’---48’’, (DN40---DN1200)
Brief introduction:
Butterfly valve includes threaded connection and wafer type, and meets the strict requirements of HVAC equipment, irrigation, civil and industrial purposes. The valve body is made of cast iron; and butterfly disc may be made of ductile iron, aluminum bronze, and stainless steel; sealing seat may be made of NBR and EPDM. The actuator could be handle, worm gear, electric and pneumatic.
Pressure: 1.0Mpa, 1.6Mpa
Temperature scope: -15---150°C
Material:
Body:Ductile iron/SS314/304/WCB
Disc: Ductile iron/SS316/305/Aluminum-bronze/Ductile iron,nickle plated
Stem:SS416/420
Seat:EPDM
Painting:Expoxy paint
