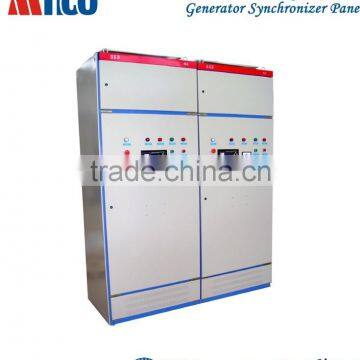

Minco MB8 Generator Synchronizer Panel

 Generating set Automatization synchronization system SYNC Panel

MB8 AT can start up and synchronize the generating sets automatically in case the mains is abnormal or unavailable. It can also analyzes the loading characteristic and shares the loading amongs the generating sets. When the mains restores normal, the generating sets will be phased out automatically and sequentially. This would avoid a lot of manual errors.

1. Automatic control single genset, exactly match the bare generator.

2. Large screen backlight character LCD display,genset status highlighting show;

3.Automatic start, automatica synchronize the generating sets, automatic load distribution adjustment, automatic separate and stop genset.

4.Chinese and English menu, interactive operation. Can be set and operated without computer.

5. Direct character display alarm details and working state,more than 50 fault records

Standard configuration:(200KW×2, Electronic Governor)

9 inch standard cabinet : 600*600*1600 mm         2set

 Minco 820B genset module(Main genset)           1set

 Minco 810B genset module (combine genset)       1set

 Automatic synchronizer controller                  1set

Automatic load sharing module                    2sets

 DELIXI DW15-630A Braker                  2sets
