Home > Products > PDC Substrate Tip > Tungsten Carbide Substrate for Pdc Drill Bit Tip

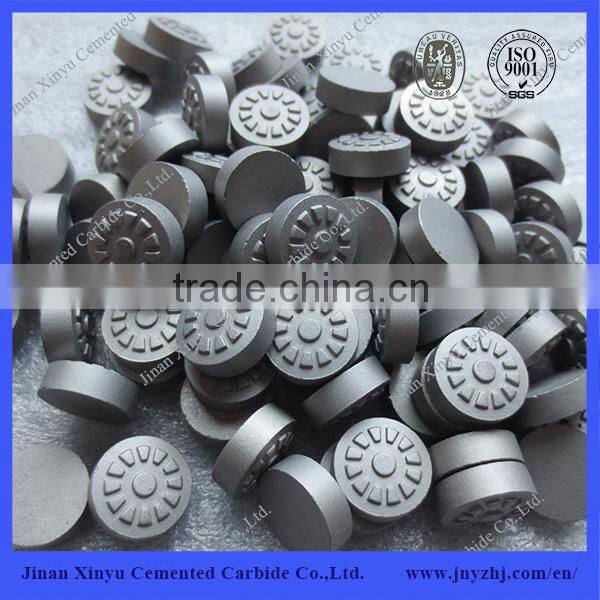

Tungsten Carbide Substrate for Pdc Drill Bit Tip
- any port in china
- T/T D/P D/A Credit Card
You May Like
-
6% Cobalt Tungsten Carbide Button
-
Manufacturer Hard Alloy Carbide Round Tips for Pdc Bit1308, 1608,1913
-
Manufacturer Hard Alloy Carbide Substrate Round Shape for Pdc Bit 1608
-
Cheap Price Hard Alloy Carbide Substrate Round Shape for Pdc Bit 1608
-
Different Size Tungsten Carbide PDC Drill Bit Price
-
Tungsten Carbide Alloy Drill Bit Buttons, Substrate PDC Wearable Tool Bit
Product Details
| Place of Origin | Shandong, China | Brand Name | XINYU | |
| Model Number | Customized on request | Alloy Specification | YG6/YG8/YG8C/YG11/YG11C and so on | |
| Particle | 2-10 |
Product Description
Advantage
1.Free sample
2.Direct factory produce and sale
3.All kinds of grades are available
4.Custom made available
5.Precision processing and strict product inspection
6.Advanced Equipment and professional technicians
7.Gurantee the bulk quality are in accordance with the samples
8.ISO 9001-2008 Quality Control System
9.100% virgin tungsten carbide powder
10.High speed cutting, wears well & long service life
11.High hardness, high strength, wear resistance
12.12years professional experience
Grades,Properties And Applicatins Recommended
Grades | Density(g/cm³) | Hardness(HRA) | T·R·S(N/mm2) | Application |
YG4C | 15.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 | 14.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C | 14.40 | 86.5 | 2450 | Mainly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C | 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
Enterprise Introduction
Founded in 2002,Jinan Xinyu Cemented Carbide Co,.Ltd. is a large licenced import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 contries and regions across the world including the United States, Canada, Italy, Japan, Korea, Taiwan etc. The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad . Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company.

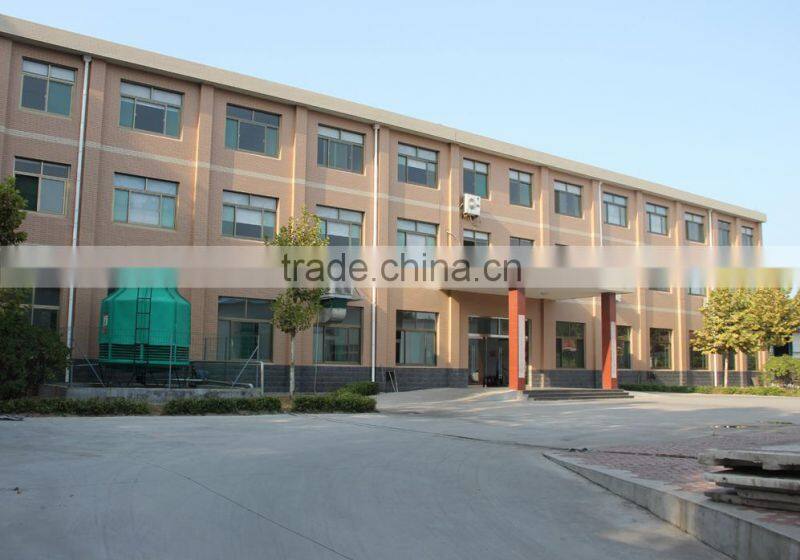

Our factory is located in Jinan hi-teach industrial development zone with beautiful enivironment,fresh air and convenient transportation system. We warmly welcom all the clients to patronage.
Our Main Products
Payment Methods and Delivery
Contact Us
JINAN XINYU CEMENTED CARBIDE CO., LTD.
.Address: Zhongmeng Village, Gaoguanzhai Town, Zhangqiu City, Shandong Province
.Skype: maria.xia07
..Fax: 86-531-67897298
.Website: www.jnxy.en.china.cn
If you have any questions or needs, please contact us on Trade Manager.
We will try our best to reply to your queries within 24 hours.
