Synthetic Diamond PDC Bits Composite Material Geology Materials
- any port of China
- T/T Credit Card
You May Like
-
Carbide Gripped Inserts for Chuck Jaw in Diamond Drilling
-
Synthetic Diamond PDC Composite Material
-
Different Types of PDC Substrate Cutter From Chinese Manufactory
-
China Manufacturers Tungsten Carbide Substrate Cutter
-
Fine Life Products Tungsten Carbide Cutting Tips Form Chinese Manufactory
-
Tungsten Carbide Cutting Tips Form Chinese Manufactory
Product Details
| Place of Origin | Shandong, China | Brand Name | Xinyu | |
| Model Number | PDC substrate, any kinds can do just follow your drawings | Alloy Specification | YG16 | |
| Particle | 2-10 |
Product Description
Specifications
1. PDC bits2. 10 years professional experience
3. 100% new material
4. Be more durable
5. ISO9001-2008
Synthetic Diamond PDC bits Composite Material Geology Materials
Founded in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licenced import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan etc. The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company.
Application:
Compose artificial diamond on PDC substrate tips to form a new substrate tips, drill bit inlaied this new substrate tips are used more and more extensive.
Advantage:
1. Free sample
2. Direct factory produce and sale
3. Different grades are available
4. Custom-made available
5. Precision processing and strict product inspection
6. Advanced Equipments and Professional technicians
7. Gurantee the bulk quality are in accordance with the samples
8. ISO 9001-2008 Quality Control System
9. 100% virgin tungsten carbide powder
10. High speed cutting,wears well & long service life
11. High hardness, high strength, wear resistance
12. 10 years professional experience

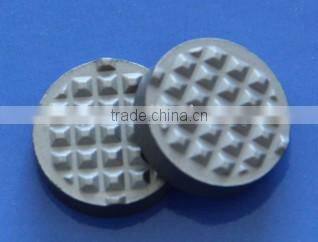

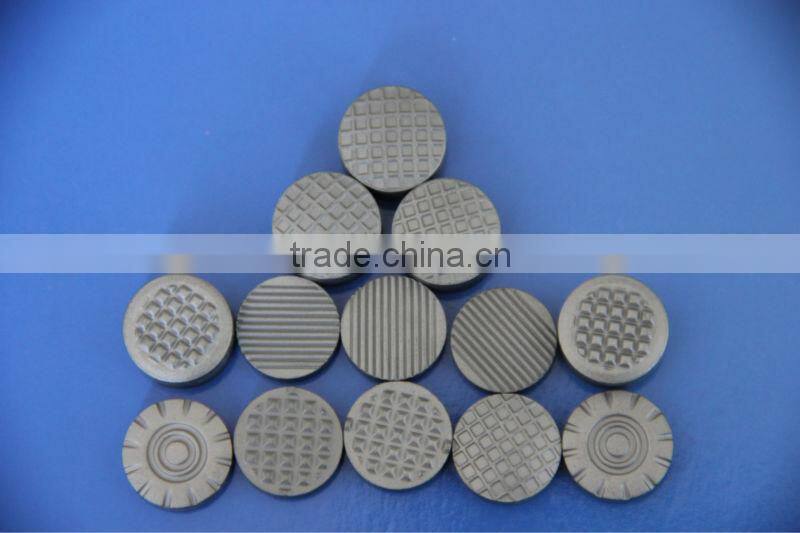

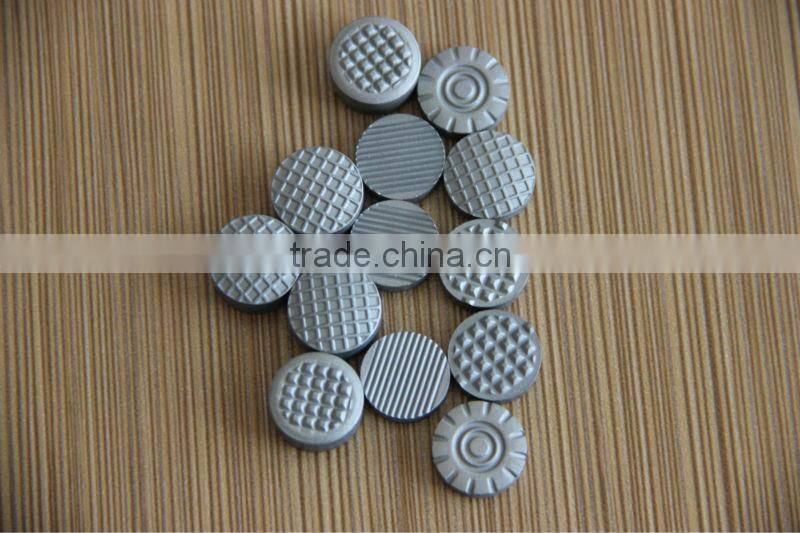

Photos

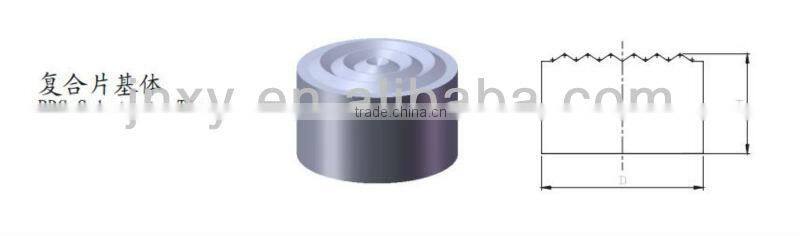

Dimensions
TYPE | Dimension | |
D | H | |
F1304 | 14.6 | 4.0 |
F1605 | 17.8 | 5.0 |
F1608 | 17.8 | 8.0 |
F1908 | 21.0 | 8.0 |
F1912 | 21.0 | 12.0 |
Grades, Properties And Applications Recommended
Grades | Density(g/cm³) | Hardness(HRA) | T·R·S(N/mm2) | Application |
YG4C | 15.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 | 14.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C | 14.40 | 86.5 | 2450 | Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C | 14.30 | 86.0 | 2500 | Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
