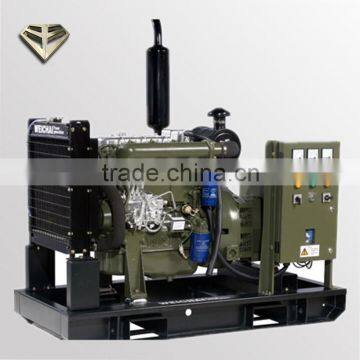

Three Phase Synchronous Self-excited Weichai Diesel Generators
- Fuzhou
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Weichai | |
| Model Number | YZ series | Output Type | AC Three Phase | |
| Speed | 1500rpm | Frequency | 50Hz | |
| Rated Power | 12kW | Rated Voltage | 400V | |
| Rated Current | 21.65A |
Product Description
Specifications
Three Phase Synchronous Self-excited Weichai Diesel Generators1.zinc-plated fuel tank
2.100% copper alternator
3.forklift ho
Three Phase Synchronous Self-excited Weichai Diesel Generators
Widely used in telecommunications, oil, public buildings, community, industrial and mining enterprises, hotels, hospitals, military and other fields.
1, low noise, the noise level can reach 80dB (A) @ 1m or less;
2, power reserve, and has good technical performance indicators;
3, DC12V electrical system;
4, high temperatures and rotating parts complete protection;
5, high-performance shock absorbers and 40 ℃ hot tank;
6, spray Public chassis;
Rated power: 12kW;
Rated voltage: 400V;
Rated speed / rated frequency: 1500rpm/50Hz;
Rated power factor: 0.8 (lagging);
Rated current: 21.65A
Number of cylinders / Bore / Stroke: 4/85mm/92mm;
Displacement: 2.088L;
Cooling: Closed radiator fan forced cooling;
Start mode: DC12V electric motor;
Phase number and connection: three-phase four-wire, star connection;
Excitation / regulator: Brushless / AVR automatically;
Diesel fuel consumption economy: ≤ 210g/kW · h;
Oil consumption: ≤ 1.1g/kW · h;
