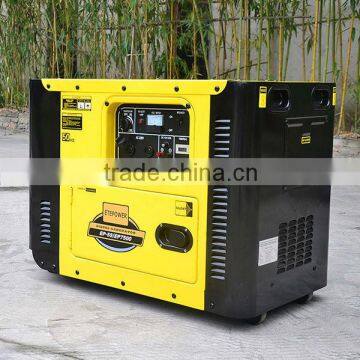

New style 5kw diesel generator price

 Genset Main Specifications

Prime Power

5KW/5KVA

Standby Power

5.5KW/5.5KVA

Rated Speed

3000RPM

Output Frequency

50HZ

Phase

1

Rated Voltage

230V

Engine Model

186FA

Alternator Model

N-5

Fuel Consumption of 100% load

275g/kw.h

Fuel tank capacity(L)

13

Voltage Regulation Rate

≤±1%

Random Voltage Rate

≤±1%

Frequency Regulation Rate

≤±5%

Random Frequency Variation

≤±0.5%

Dimension (silent type)

930*545*710mm

Weight (silent type)

180kg

20' container qty(normal loading)

72

40' HQ container qty (normal)

144

 Engine Specifications

Engine Model

186FA

Number of Cylinder

Single

Cylinder arrangement

Vertical in-line

Cycle

Four Stroke

Aspiration

Natural Aspiration

Bore×Stroke (mm×mm)

86×72

Displacement (cc)

418

Starting System

Electric starting

Continue Running Time

≥9 hr

Lubrication System

Pressure splashed

Lube. Oil Capacity

1.65L

Cooling System

Air-cooled

Fuel Tank Type

With zinc-plated inside

Total Lubrication System Capacity (L)

418

Combustion System

Direct Inject

Fuel Consumption at 100% Load(g/kwh)

275(at 3000RPM)

Battery capacity(V-Ah)

36

 Alternator Specifications

Alternator Model

N-5

Alternator Brand

China Stamford

Exciter Type

Brush, Self-excited

Rated Output

5kw

Rated Speed

3000RPM

Rated Frequency

50HZ

Phase

Single

Rated Voltage

230V (Available with customer requirements)

Power Factor

1

Voltage Adjust Range

≥5%

Voltage Regulation NL-FL

≤±1%

Insulation Grade

F

Protection Grade

IP20
