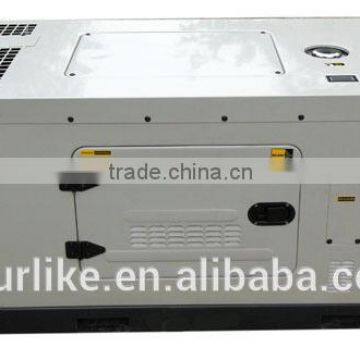

20kW diesel gegerator, super silent generator, canopy soundproof generator

Genset Main Specifications

Prime Power

20KW/25KVA

Standby Power

22KW/27.5KVA

Rated Speed

1500RPM

Output Frequency

50HZ

Phase

3

Rated Voltage

380V

Engine Model

4DW92-35D

Alternator Model

184F

Noise(7m)dB(A)

68

Fuel Consumption (g/kw.h)

240

Voltage Regulation Rate

≤±1%

Random Voltage Rate

≤±1%

Frequency Regulation Rate

≤±5%

Random Frequency Variation

≤±0.5%

Dimension (silent type)

1750X750X800 (mm)

Weight (silent type)

500kg

Engine Specifications

Engine Model

4DW92-35D

Number of Cylinder

Four

Cylinder arrangement

Vertical in-line

Cycle

Four Stroke

Aspiration

Turbocharged

Bore×Stroke (mm×mm)

90×100

Fuel Consumption (g/kw.h)

230

Fan Consumption (KW)

1.8

Total Displacement(ml)

2540

Compression Ratio

17:1

Cooling Method

Water Cooled

Speed Governor

Mechanical

Start paten

Electric

Fuel

0#(summer)-10#(winter)-35#(severe cold)

Lubrication Oil

L-ECD grade 15W30 or 15W40

Start Moto Capacity

12V-3.5KW

Charge Alternator Capacity

14V-500W

alternator Specifications

Alternator Model

184F

Alternator Brand

Stamford

Exciter Type

Brushless, Self-excited

Rated Output

20kw

Rated Speed

1500RPM

Rated Frequency

50HZ

Phase

Three

Rated Voltage

230V (Available with customer requirements)

Power Factor

0.8

Voltage Adjust Range

≥5%

Voltage Regulation NL-FL

≤±1%

Insulation Grade

H

Protection Grade

IP23
