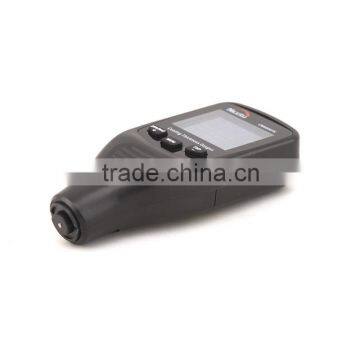

Electronic Power and Auto Testing Machine Usage Digital CM8806FN Paint Coating Thickness Gauge

-Large and clear TFT Screen(160x128TFT)

-Auto recognition of the substrate material (Fe or NFe)

-Metric/imperial switchable (mil/um switchable)

-Single / Continue measurement selectable

-Flip display

-99 data  memory

-Simultaneously displays 5 readings: (easy for data analysis and comparison)

 Measuring Reading , Average Reading , Max. Reading , Min. Reading and Standard Deviation.

Range: 0 - 1250um; 0 - 50mil (Max. add to 2000um/80mil)
Resolution: 1um, 0.1mils
Accuracy: ± (3%+2um), ± (3%+0.1mils)

Response time: 0.6 sec

Sensor type: Fe & NFe 2 in 1

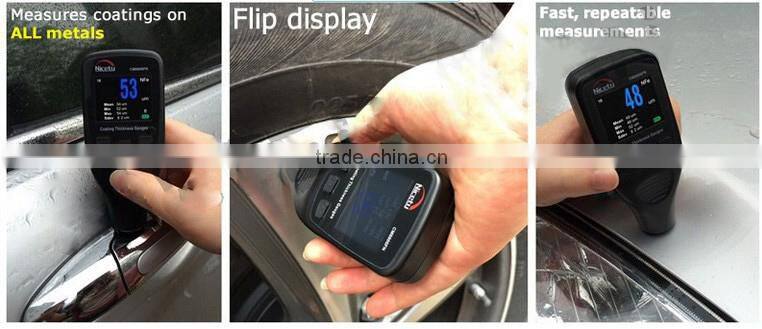

Large and Clear TFT Screen(160x128TFT)  + Flip Display

                                     Easy Reading  at any condition and angle

The calibrations of CM8806 Series Coating Thickness Gage

This device has been calibrated before delivery and self-inspection occurs every time before measurement, therefore, in most cases, the only thing needing to be checked is whether there is coating or plating. If no, zero-in is suggested.

Zero-In: press “+” and hold for 2 seconds, and “000” will blink on screen. In case of no coating or plating on base materials, the measured value will return to zero. After zero-in, the device can be used to accurately measure thickness. However, due to abnormal base material or severe environment, accumulated error may occur, in this case, standard plastic film needs to be used to further calibrate the device.

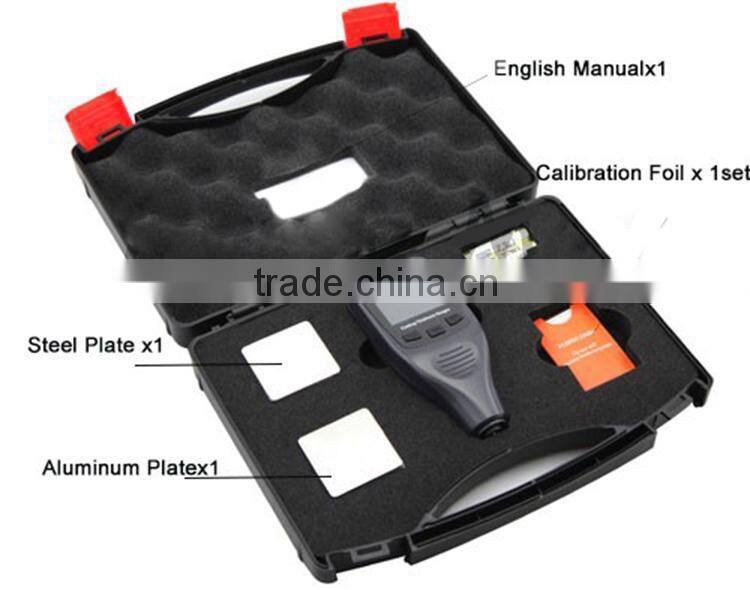

Calibration with Standard Plastic Film: use the device to measure standard plastic film, in case the measured value is beyond the accuracy range as specified in user manual, please move the device away from the film, and press “M” and hold for 2 seconds so that the measured value will blink and buzzer will sound at the same time. Press “+” or “-” (or long press “+” or “-” for fast adjustment) to adjust measured value to be the same as actual thickness. Finally, press “M” to lock up.

Two standard plastic films can be used for better calibration, i.e. a thin film and a thick film. In case the coatings or plating are relatively close to each other in thickness, it is enough to use only one standard plastic film with close thickness.

Initialization: in case zero-in or standard plastic film does not work, please initialize this device: press “-” and hold for 2 seconds, “0”, “00”, “000” will blink in turn during initialization. In order to ensure high measurement accuracy, it is suggested to do zero-in after initialization. All previously saved values and settings will be cleared after initialization.

Shutdown: shutdown interface will appear in case of no operation within 90 seconds. Please refer to below figure:

 means the device will be powered off in 3 seconds.
