fast heating polyimide heater
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, resistance | |
| Power Source | Electric | Place of Origin | Jiangsu, China | |
| Brand Name | Topright, Topright | Model Number | TRKP2016080309 | |
| Dimension(L*W*H) | 4cm*4cm--2000cm*2000cm | Weight | Final Dimension | |
| Voltage | 12-380V(Customized), 12-400V, 12-400v | Power(W) | 10w-1000w | |
| Certification | CE ROHS | Warranty | 1 Year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Quick Details:
| 1) Kapton / polyimide heater is a variety of shapes, sizes, and wattages |
| 2) Working temperature: -200c - 200c |
| 3) Flexible kapton heater |
Polymide (Kapton) Heater Description:
Kapton insulated heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Specification of Polyimide (kapton) Heaters:
NO. | Description | Parameter |
1. | Certification | CE and Rohs |
2. | Voltage range | 1.5v~400v |
3. | Power density range | 0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
4. | Using temperature range | -60~200°C(-140~392°F) |
5. | Width range | 10mm~500mm(0.39"~19.68") |
6. | Length range | 10mm~1800mm(0.39"~70.86") |
7. | Thickness range | Standard:0.126~0.266mm(0.005"~0.01") |
8. | Plug | Chinese,British, American, European and so on |
9. | Quality guarantee | 1 year |
10. | Life | more than 4 years(normal useful) |
11. | MOQ | 1 piece |
OEM and ODM is welcome,can print your logo | ||

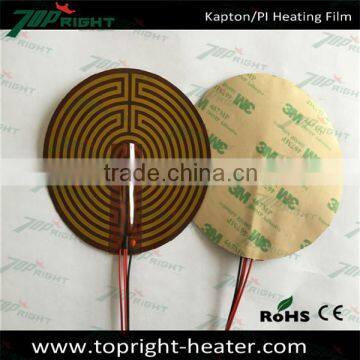

Kapton (polyimide) heaters Photos:
Specification of Polyimide (kapton) Heaters:
- Working voltage: 12 - 400V
- Working temperature: -200°C - 200°C
- Watt density: 1.1-6.5w/cm2
- Mounting: PSA or mechanical
- Max. size: 500x600mm
- Thickness: ≤0.25mm
- Exit: teflon, kapton or silicone insulated leads
- Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
- Protect aircraft electronic and mechanical devices in cold weather / area.
When place an order,please kindly confirm the following parameters.Thanks.
| (1). Type of Heater |
| (2). Wattage and Voltage |
| (3). Size of the heater |
(4). Drawing or Sample required for special configuration |
Our Exhibtion in USA market:
Topright CE Certification
Topright try our best to deliver the goods to your hand without any deficiency.
Value appreciates profession,professional designed for kapton heaters:
FAQ:
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.
3.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Western union,Money gram and Aliexpress is available.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Welcome to contact us for more details ,most competitive price for you!
