12v 3D printer kapton film heating pad

FOB Price

US$ 0.15 - 10 / Piece

10 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, resistance
Power Source	Electric	Place of Origin	Jiangsu, China
Brand Name	Topright, Topright	Model Number	TRKP2016080301
Dimension(LWH)	4cm4cm--2000cm2000cm	Weight	Final Dimension
Voltage	12-380V(Customized), 12-400V, 12-400v	Power(W)	10w-1000w
Certification	CE ROHS	Warranty	1 Year
After-sales Service Provided	Overseas third-party support available

Product Description

Quick Details:

1) Kapton / polyimide heater is a variety of shapes, sizes, and wattages

2) Working temperature: -200c - 200c

3) Flexible kapton heater

Product Description

Polymide (Kapton) Heater Description:

Kapton insulated heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.

Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.

Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.

Specification of Polyimide (kapton) Heaters:

NO.	Description	Parameter
1.	Certification	CE and Rohs
2.	Voltage range	1.5v~400v
3.	Power density range	0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2)
4.	Using temperature range	-60~200°C(-140~392°F)
5.	Width range	10mm~500mm(0.39"~19.68")
6.	Length range	10mm~1800mm(0.39"~70.86")
7.	Thickness range	Standard:0.126~0.266mm(0.005"~0.01")
8.	Plug	Chinese,British, American, European and so on
9.	Quality guarantee	1 year
10.	Life	more than 4 years(normal useful)
11.	MOQ	1 piece
OEM and ODM is welcome,can print your logo

Related Products

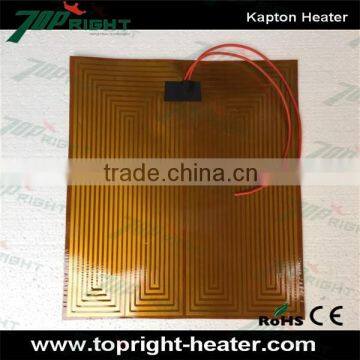

Kapton (polyimide) heaters Photos:

Specifications

Specification of Polyimide (kapton) Heaters:

Working voltage: 12 - 400V
Working temperature: -200°C - 200°C
Watt density: 1.1-6.5w/cm2
Mounting: PSA or mechanical
Max. size: 500x600mm
Thickness: ≤0.25mm
Exit: teflon, kapton or silicone insulated leads

Application of Polyimide (kapton) Heaters:

Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
Stabilize optoelectronic components
Test or simulate integrated circuits
Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
Protect aircraft electronic and mechanical devices in cold weather / area.

Order Guide

When place an order,please kindly confirm the following parameters.Thanks.

(1). Type of Heater

(2). Wattage and Voltage

(3). Size of the heater

(4). Drawing or Sample required for special configuration

Trade Shows

Our Exhibtion in USA market:

Topright CE Certification

Packaging & Shipping

Topright try our best to deliver the goods to your hand without any deficiency.

Production Flow

Value appreciates profession,professional designed for kapton heaters:

FAQ:

1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.

3.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Western union,Money gram and Aliexpress is available.

4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.

Welcome to contact us for more details ,most competitive price for you!
