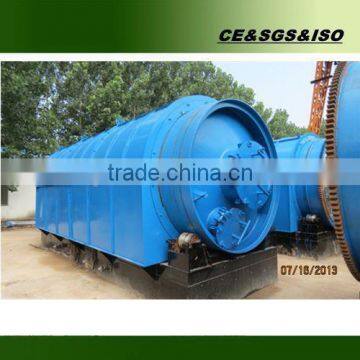

The Waste Tires Recycling Machine to Get Fuel Oil With CE ISO

1.Founction:

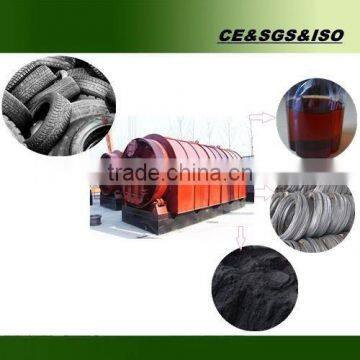

    recycle the waste into fuel oil with high valued.

2.Raw Meterial can be used:

  A. The materials consists of plastic and rubber such as rubber, waste tyres, and waste rubber soles and so on. The oil production of the tyres beyond dia650mm is around 45%;The oil production of the tyres of the bikes, motorcycles and cars is 35%; The oil production of rubber soles is around 27-33%; The oil production of black rubber is about 35%; The oil production of gum outsole is around 45%.

 B.Plastics: Since there exists great differences between the waste plastics, so the oil production also differs a lot. Generally speaking, it is between 35-85%.

3.The opptional fuel can be choosed

  1. Wood

  2. Fuel oil (including the production made )

  3.Coal, charcoal

  4.Nutural gas(including the waste gas produced from process)

  5.The carbon black produced from process

4.Products parameters:

1.The fuel oil extracted from the waste plastics: Density: 0.80±0.02,dark red color, fuel value is 8500kcal.

2. The fuel oil extracted from the waste rubber: Density: 0.90±0.02,black color, fuel value is 10500-10100kcal.

5.The main parts list :

ITEM               Specification     Quantity     Remark

Reactor           2.6m*6.6m       1set   16mmQ245R boiler steel

Outside cover       3.0m*5.4m       1set     totally 8pcs

Draft Fan             5kw           1set     380V power pressure

Motor reducer         5kw             1set     380V power pressure

Sedimentation tank   400*75     3set

Pipe line cooling system 108       44roots thinkness3m*6M(L)

Water sealing     900*1500     2set   6mm common board

Oil gas separator   900*1800     1set   6mm common board

Cooling tower                               100T capacity

Water sealing     900*1500     2set   6mm common board

De-sulpher       900*2800     1set   6mm common board

Chimney         280             1set   18m

Air blower         250kw           4 set   220v power pressure

Gas burned spay                    4set

Water pump       1.5kw,3kw       2set

Heavy oil tank     800*1800     1set

Product oil tank   1400*3000   0set

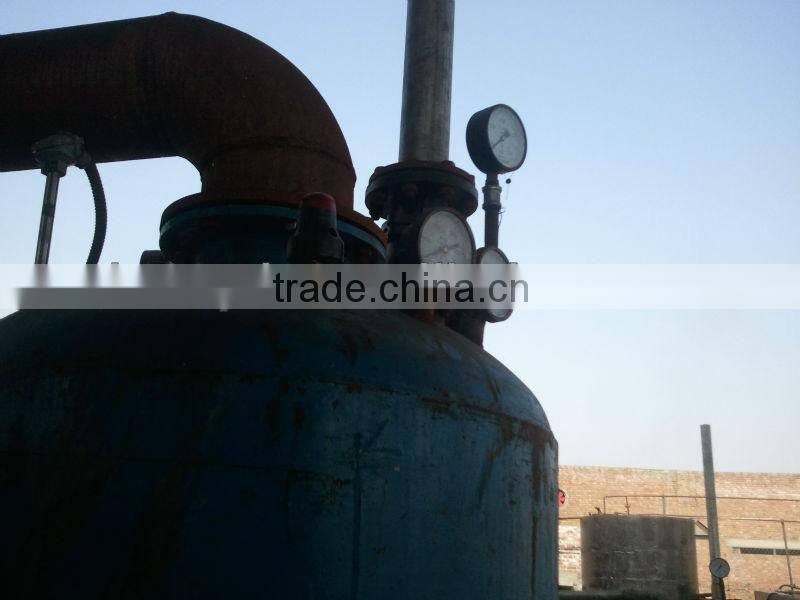

Temperature gauge 0-500°C       5pcs

Pressure gauge     Y100-0.16     3pcs

Safety system                       3pcs

Electricity central control panel       1set

Reactor cooling down and saftey system 1set

6.The plastic recovery chart

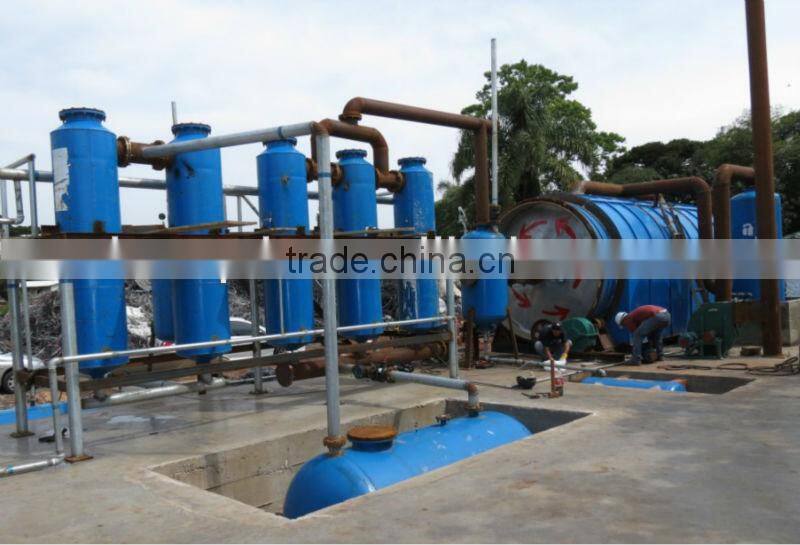

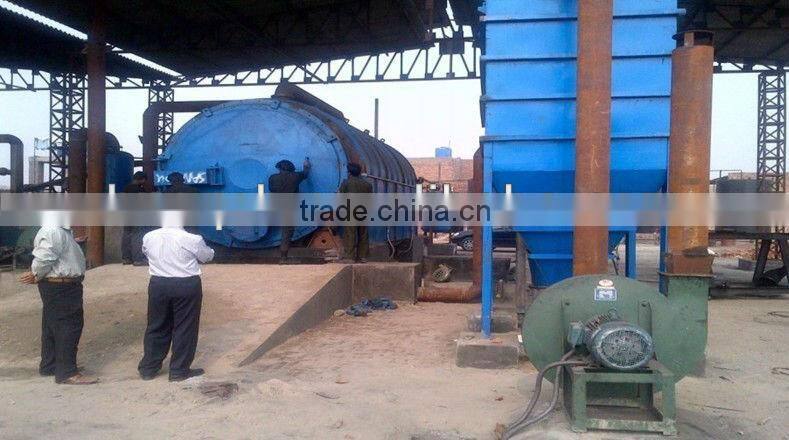

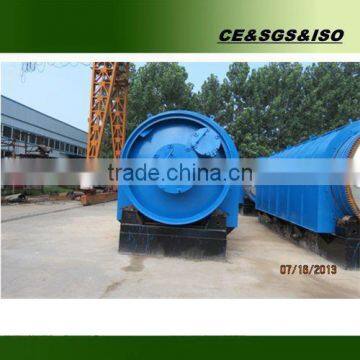

7.Production picture
