Completely Automatic Prodution line to recycle tyre into Diesel for using Diesel Engine

Specifications

  The Fully Continuous Production Line To Recycling Waste Solid Tyre into Diesel Directly

Founction:

    recycle the waste tyre /rubber  into Diesel oil with high valued.

1.Raw Meterial can be used:

  A. The materials consists of plastic and rubber such as rubber, waste tyres, and waste rubber soles and so on. The oil production of the tyres beyond dia650mm is around 45%;The oil production of the tyres of the bikes, motorcycles and cars is 35%; The oil production of rubber soles is around 27-33%; The oil production of black rubber is about 35%; The oil production of gum outsole is around 45%.

 B.Plastics: Since there exists great differences between the waste plastics, so the oil production also differs a lot. Generally speaking, it is between 35-85%.

2.The opptional fuel can be choosed

  1. Wood

  2. Fuel oil (including the production made )

  3.Coal, charcoal

  4.Nutural gas(including the waste gas produced from process)

  5.The carbon black produced from process

3.Products parameters:

1.The fuel oil extracted from the waste plastics: Density: 0.80±0.02,dark red color, fuel value is 8500kcal.

2. The fuel oil extracted from the waste rubber: Density: 0.90±0.02,black color, fuel value is 10500-10100kcal.

 4.The main parts list :

ITEM                   Specification        Quantity        Remark

Reactor               2.6m*6.6m             1set             16mmQ245R boiler steel

Outside cover       3.0m*5.4m           1set     totally 8pcs

Draft Fan              5kw           1set     380V power pressure

Motor reducer         5kw             1set     380V power pressure

Sedimentation tank   400*75     3set

Pipe line cooling system 108       44roots thinkness3m*6M(L)

Water sealing     900*1500     2set   6mm common board

Oil gas separator   900*1800     1set   6mm common board

Cooling tower                               100T capacity

Water sealing     900*1500     2set   6mm common board

De-sulpher       900*2800     1set   6mm common board

Chimney         280             1set   18m

Air blower         250kw           4 set   220v power pressure

Gas burned spay                    4set

Water pump       1.5kw,3kw       2set

Heavy oil tank     800*1800     1set

Product oil tank   1400*3000   0set

Temperature gauge 0-500°C       5pcs

Pressure gauge     Y100-0.16     3pcs

Safety system                       3pcs

Electricity central control panel       1set

Reactor cooling down and saftey system 1set

 Our competitive points in pyrolysis parts

     1.outside gear support for reactor which can ensure the reactor was stable during it was running

    2.more than two discharge system which short the discharge time 0.5 hours at least

    3.steam boiler system which can doow down the reactor within 2hours .

    4.extral steam feeding system after finish the whole produce which remove the burn gas in the

      reactor to avoid any fire injurt .it give all of the new user 100% safety .

    5.spares parts for one year running freely

    6.the perfect carbon black discharge system which can make the our work aera was clean

Our competitive points in Distillation parts

1.with reduce pressure during whole process .which will be safety in 120% compared with common pressure .

ntinuous feeding .which can running the plant over 10days without any stopping .

3.no need any catalyst require during process .which can save money cost during daily production .

4.stable process capacity ,and easy to control .

pls refer to below vedio link we supplied to albania .



/v_show/id_XMzgwMzM3NDY0.html

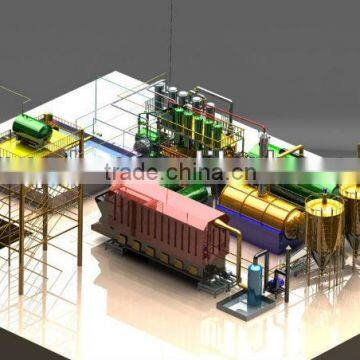

the Drawing for whole production line :
