Waste Rubber Oil Refining Machine

Specifications

Working process

 First, the raw materials are put into the furnace, then seal the feed inlet then the bottom of the reactor will slowly heat the wastes by coal or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 300-400°C; oil steam will flow through light and heavy components separating device; light component will enter the condenser and meanwhile the residues will be discharged automatically in succession. But the liquefied part will be condensed to rubber oil, and the part that cannot be liquefied will be input into heating supply system for burning by way of combustion gas purification system.

Characteristics

1. Environmental protection - The production of the plants is carried out in an environment of no smoking and no smell, the production of the device is environment protective. To refine oil from waste rubber and waste plastics, we turn the rubbish of life into useful oil and carbon black, and help to deal with living organisms, thereby protects the living environment.

2. Safety - the plant has the auto alarm system, when there are some problems, the alarming system will let us know in time, and then we can avoid the accidents.

3. Various handling capacity - we can make the plant to handle different quantity of raw materials according to customers’ requirement, ranging from 7tons to 20tons per 24 hours continuously. We are now researching into the new technology; the new device may be able to deal with 50 tons of raw materials per 24 hours.

4.Energy and manpower saving - the plant can use coal as well as electricity as the fuel, when the temperature reaches to 150°C, a large amount of gases will be generated, these gases can generate a large quantity of heating energy after being burned fully in the special gas boiler, thus can save energy. There will only need two or three persons to control the whole system, it is very convenient.

 the waste refinery machine can take full advantages of waste as the lackage of oil was very serious day by day .

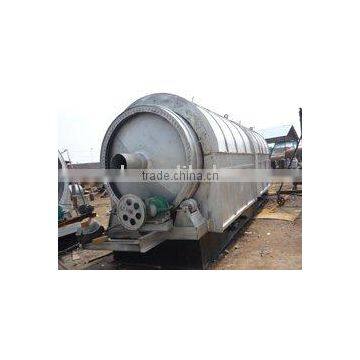

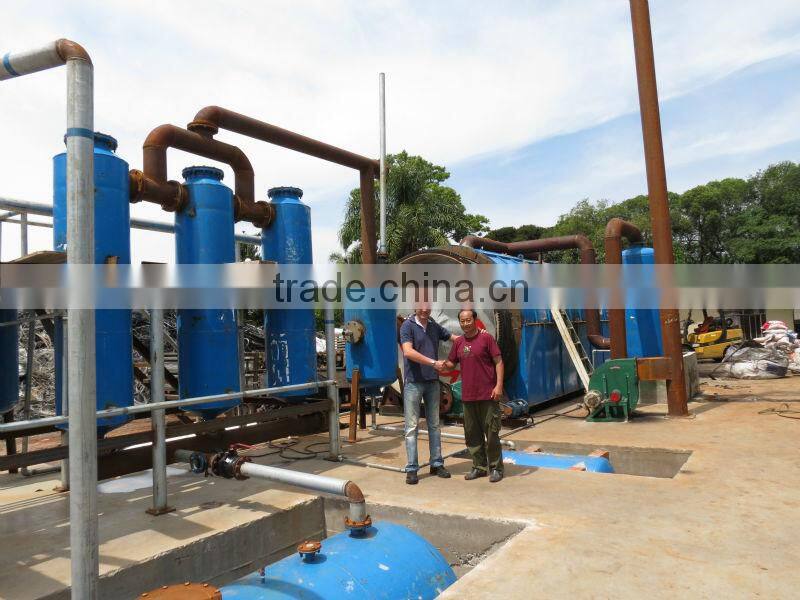

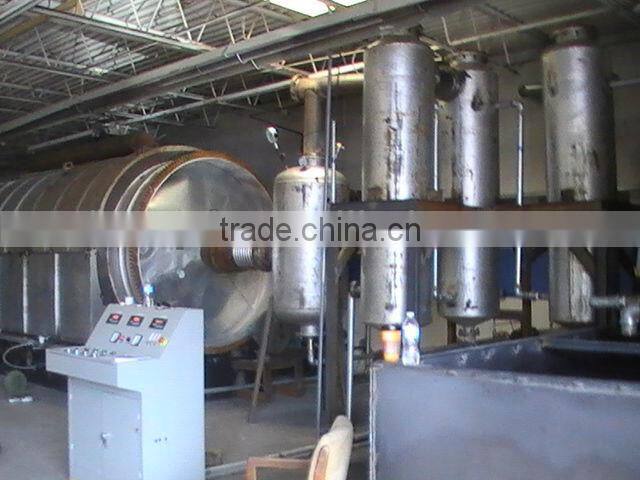

the machinery picture:
