Reasonable Price Factory Sale Rotary Drying Machine for Wood Sawdust Dryer for Sawdust

Specifications

Reasonable price factory sale rotary drying machine for wood sawdust dryer for sawdust

Dryer for sawdust

Brief introduction of dryer for sawdust

Dryer for sawdust is also named as rotary wood sawdust dryer, wood vacuum dryer, sawdust

rotary dryer, wood drying drum, etc. which can dispose a large capacity granules material in a

short time. Because of dryer for sawdust’s safe and reliable operation, big operational flexibility,

large capacity of disposal and low consumption,it is widely applied in building materials, food,

metallurgy, chemical, coal, medical, mining etc industries.

Dryer for sawdust is used to dry up wood sawdust/wood chips/wood shavings, etc. whose

humidity around 60% till their' humidity around 1.5%-5%. The innner hot air temperature can

be around 700 ℃, this makes wood chips/wood shavings/wood sawdust, etc. easily to be dried

up in a short time, so our dryer for sawdust's production capacity is very large, it can be 1-20

tons per hour. By the way, final humidity is customized by adjusting its rotational speed and its

moving speed. (dryer for sawdust)

The working principle of dryer for sawdust

During the movement in dryer for sawdust, the material gets the heating directly/indirectly,

and then is dried. Later the dried material is transferred by the belt conveyor/spiral conveyer

at the discharging opening.There are lifting boards on the inside wall, which lifts and scatters

the material to make the contact surface bigger between the material and the heat carrier. This

can promote the drying rate and push the material forward. Heat carrier is usually hot air or flue

gas. After go through the dryer,the substances containing in the heat carrier usually need to be

collected by cyclone dust collector. If the air dust content need to be reduced further, bag filter or

wet dust remover shall be used.(sawdust drum dryer)

Raw material of dryer for sawdust

1) Wood sawdust, wood chip, wood shavings, etc.

2) Coal powder, coal slurry, coal waste, etc.

3) Clay, slurry, etc.

4) Grain, such as wheat, rice, etc.

5) Mash, diatillers, etc.

6) Animal dungs.(dryer for sawdust)

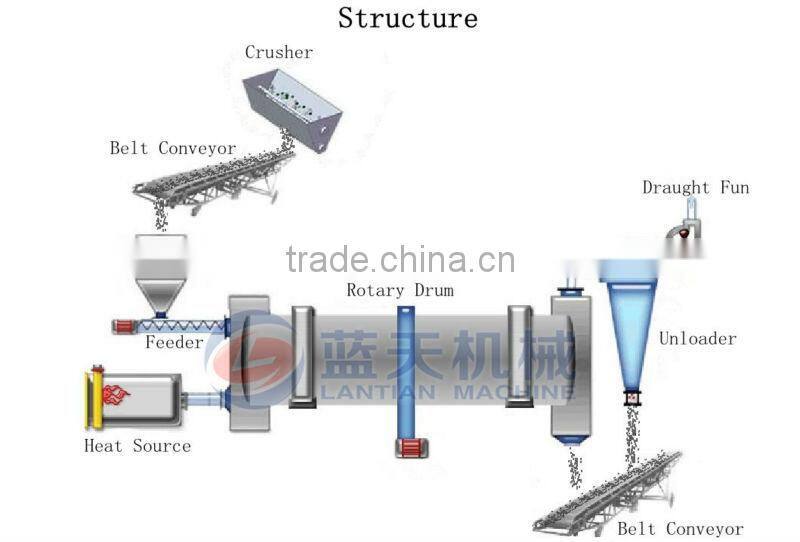

Structure of dryer for sawdust

Dryer for sawdust consists of seven parts: they are feeding hopper, heat source, rotary

drum, lifting board, draught fan, unloader. (dryer for sawdust)

Features of dryer for sawdust

1. Large production capability, continuous operation

2. Simple structure, convenient operation

3. Low malfunction, low maintenance cost.

4. Wide scope of application, can be used to dry the granular materials, favorable for those

materials with the big adhesion.

5. Great operating flexibility, the output of the products allows a larger fluctuation range, not

influencing the quality of the products.

6. High thermal efficiency(≥ 60%)

7. Medium temperature in outlets(about700 degree)

8. Alloy steel plate or stainless lifting plate

9. Guaranteed drying effect (≤ 5% after drying)

10. Final wood sawdust's humidity can be adjusted by adjusting its speed.

11. Far-ranging raw material: such as wood sawdust, wet sand, clay, coal, etc.(dryer for

sawdust)

Main parameter of dryer for sawdust

Customers came to our factory to check our dryer for sawdust

Delivery site of dryer for sawdust
