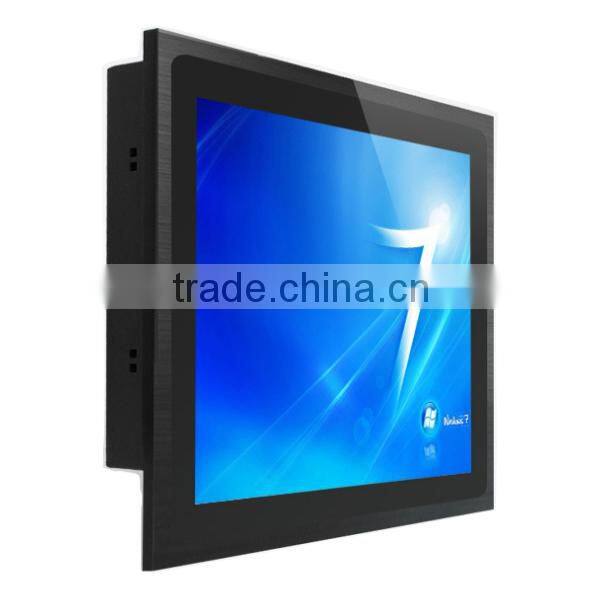

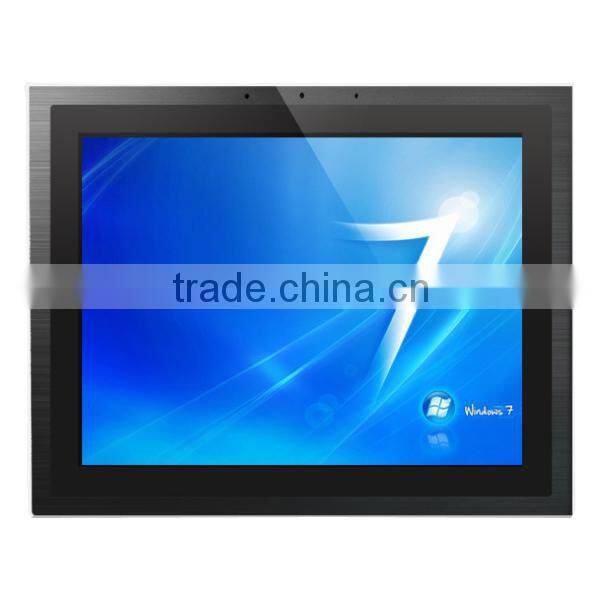

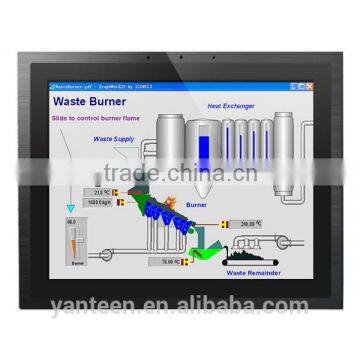

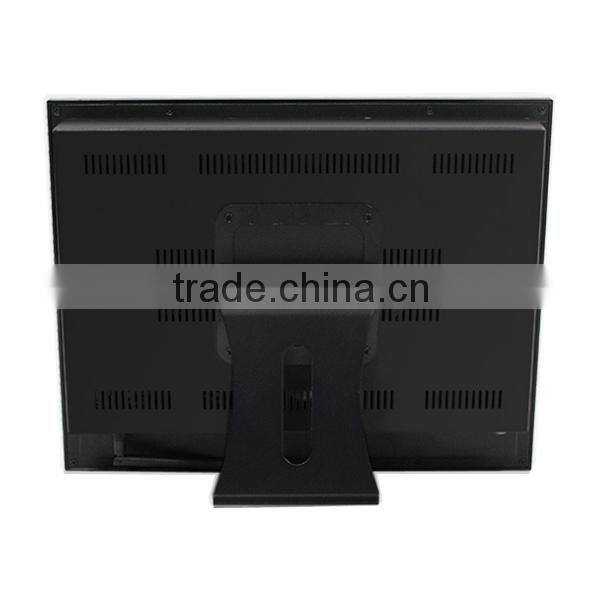

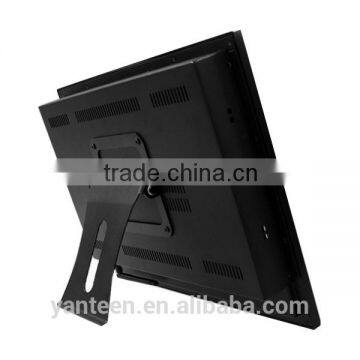

IP65 Front screen 15inch embedded panel pc, industrial panel pc
- 100000 Unit / Units per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Aluminium alloy shell 17inch windows7 touch panel pc, medical panel pc
-
IP65 Waterproof 17inch industrial touch screen panel pc linux for automation equipment
-
The Flat screen 17inch embedded touch screen panel pc for Industrial machinery
-
Aluminium alloy shell 21.5inch industrial touch screen panel pc for automatic vending machine
-
IP65 Front Screen 21.5inch embedded panel pc for the Kiosk machine
-
IP65 front panel 21.5inch waterproof touch screen pc with Aluminium alloy shell
Product Details
Products Status | Stock | Type | Panel PC | |
Brand Name | OEM | Model Number | YIPC-1501 | |
Place of Origin | Guangdong, China |
Product Description
Feature:
1.True flat seamless, IP65 water resistance
2-High quality industrial LCD panel
--High brightness 1000-1500nit LED backlights option, direct sunlight readable.
--Optical bonding and antireflective coating,clearer viewing.
--Stable operation with long working life,more than 50,000 hours.
3-Aluminun alloy enclosure and high strength cold rolled shell, unique heat dissipation design.
--Sealed bezel and True flat are more efficient for water resistance.
--Stable running in shock and vibration application, as well as electromagnetic interference and radiation enviroment.
--High efficience for heat dissipation design, rugged display can operate in extensive temperatures -20°—60°.
Available Sizes: 12" 15" 17" 19" 21.5"
Specification:
Model number | YIPC-1501 | |
LCD panel | Panel size | 15inch |
Resolution | 1024×768/60HZ | |
Aspect ratio | 4:3 | |
Panel | LED backlight | |
Brightness | 400cd/m2 | |
Contrast ratio | 1000:1 | |
Display color | 16.7M | |
View angle | H170; V160 | |
Pixel pitch | 0.264mm | |
Response time | 5ms | |
Life | 50000h | |
Windows system | CPU | Intel Celeron1037U,Dual core,1.8GHz |
RAM | 2G DDR3, 4G option | |
Hard disk | 32GB, 64GB/128GB/500GB option | |
graphics card | Integrated GMA3650 Intel display chip | |
Network card | Built in gigabit network card | |
System | Windows XP/ Win7/Win8 option | |
Touchscreen Option | Touchscreen | 5-wire resistive touchscreen (Capacitive touchscreen option) |
Touch number | >3500 million | |
Touch way | Pressure sensing | |
touchscreen interface | USB intergace(RS232 interface option) | |
Other | Power supply | AC 180-240V, 50-60Hz, DC12V |
Power Consumption | <40W | |
Work temperature | -20℃-60℃ | |
Dimension | 37cm×28.5cm×5.5cm | |
Casing | Aluminun alloy enclosure and high strength cold rolled shell | |

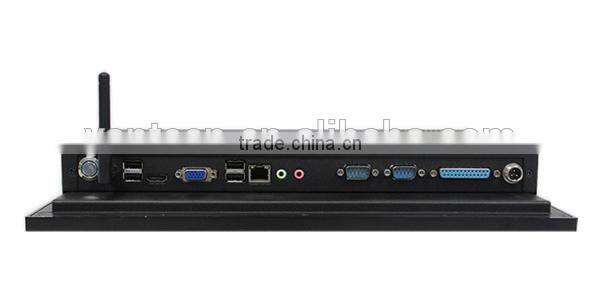

Interface | 1xVGA,1xHDMI, 4xUSB, 1x COM, 1xLAN,1xAudio output | |

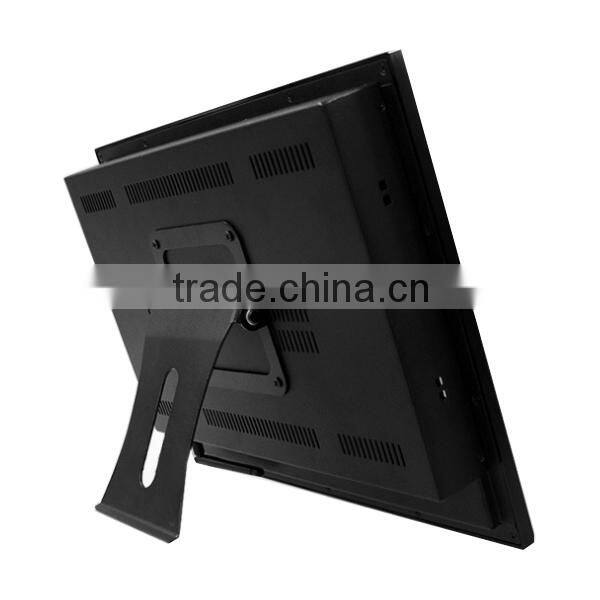

Installation | Embedded/Wall-mounted/desktop | |
Accessories | Manual, Adapter,bracket, warranty card, power cord, |

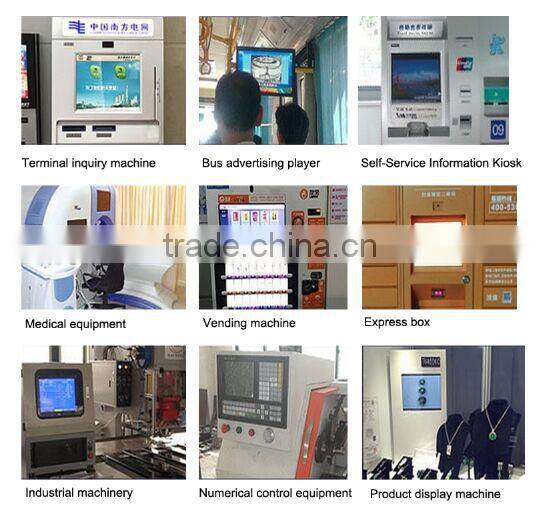

Applications:
1.Embedded into all kinds of equipment as display device
2.Telecom, network engine room host monitor
3.Military standard monitor,Reinforcement level display
4.Industrial machinery, numerical control equipment, engineering machinery,
5.Train, subway, hospitals, government agencies, port monitoring and display
6.4S auto shop, product display, automatic vending machine, courier easy box
7.Self registration, bank line access number, terminal self - help machine,
8. Medical equipment,Terminal inquiry machine, automation equipment

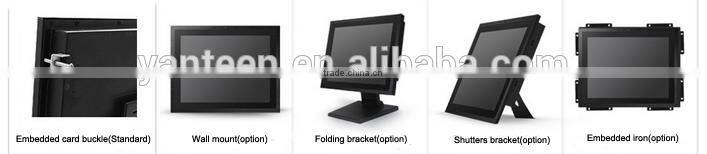

Installation way:
Package:
Shipping and Package:
Gift&neutral box

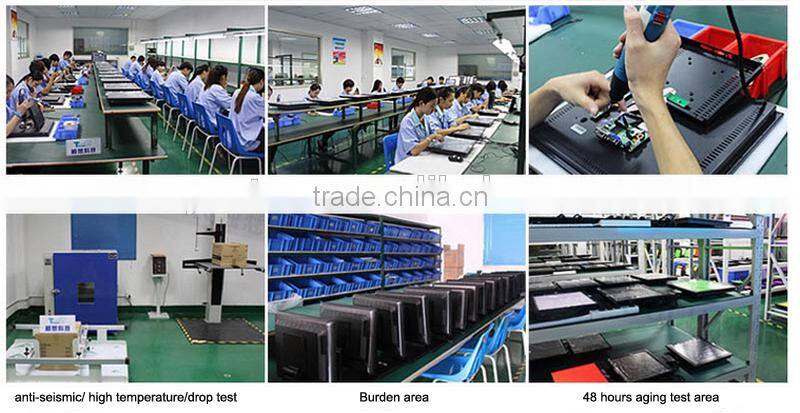

SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service
Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,
Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Yan Teng?
A: 1. Professional Touchscreen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
