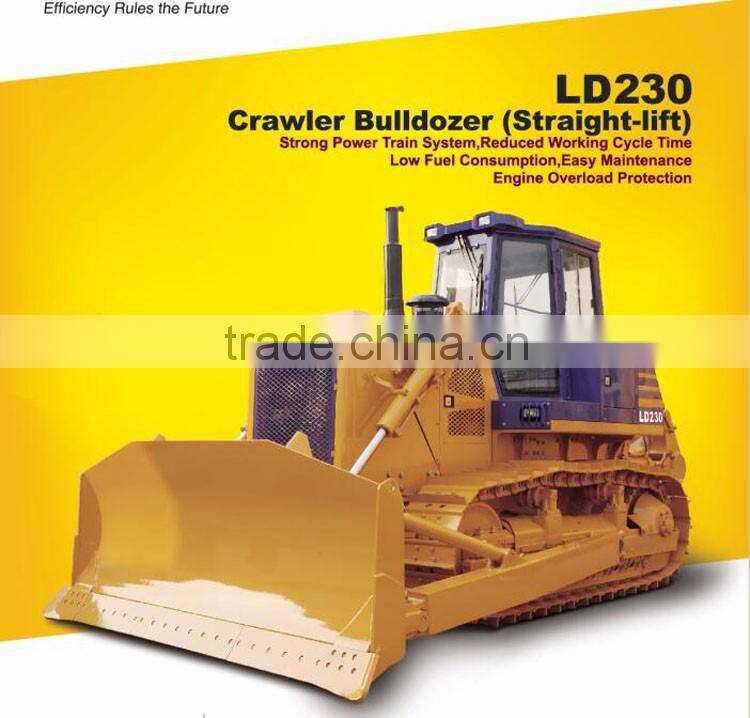

Lonking Construction Machine Ld230 Machine for Sale

FOB Price

US$ 1 - 30,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	Lonking
Model Number	LD230	Condition	New
Moving Type	Crawler Bulldozer	Machine Weight	24000kg
Dimension(Long * Breadth * High)	7021x3510x3534mm	After-sales Service Provided	Engineers available to service machinery overseas

Lonking 24 ton bulldozer for sale with low price for sale

the parameter for ld230

Engine	WD12G240E26
Power	175kW/1800rpm
Blade Type	Straight Blade
Operating Weight	23500kg
Blade Capacity	7.8m³
Engine
Model	WD12G240E26
Type	Water-cooled, in-line, 4-Stroke,Direct Injection
Rated Power(kW)	175
Rated Speed(r/min)	1800
Number of Cylinders-Bore×Stroke(mm)	6-126×155
Piston Displacement(L)	11.596
Min.Fuel Consumption(g/kW·h)	198.3
Max.Torque(N)	1250
Water Tank Capacity(L)	79
Fuel Tank Capacity(L)	580
Hydraulic system
Max Working Oil Pressure(MPa)	14
Oil Pump Type	Gear Pump
Flow(L/min)	262
Lifting Cylinder of Blade (Bore×Number of Cylinders)	Φ120×2
Tilt Cylinder of Blade (Bore×Number of Cylinders)	Φ200×1
Power Train System
Type	Swing Type of Sprayed Beam Suspended Type of Balance Beam
Number of Carrier Rollers(Each Side)	2
Number of Track Rollers(Each Side)	7
Track Type	Single Grouser
Width of Shoe(mm)	560
Length of Track on Ground(mm)	2840
Blade
Blade Type	Straight
Width×Height(mm)	3725×1390
Max.Lifting Height(mm)	1210
Max.Digging Depth(mm)	542
Cutting Edge Angle(°)	55
Max.Tilt(mm)	735
Ripper
Type	Single-shank
Max.Penetration(mm)	685
Max.Lifting Height(mm)	524
Travelling Speed
Speed of Forward Gears(km/h)	0-3.6
	0-6.5
	0-11.2
Speed of Reverse Gears(km/h)	0-4.7
	0-7.7
	0-13.2

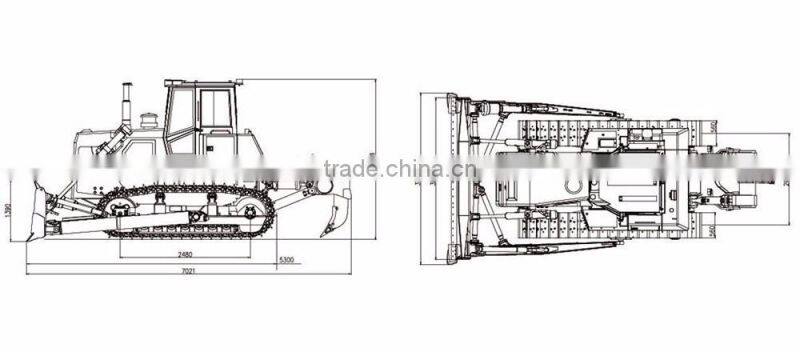

Size

(mm)

Product pictures

the pictures for Lonking bulldozer
