HERION 8020750/8022750/8021750/8020850/8022850/8021950 3/2 Way Solenoid Valve

FOB Price

US$ 5 - 12 / Piece

2 Pieces(Min. Order)

Port ningbo or shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Regulating
Pressure	Medium Pressure	Power	Pneumatic
Material	Alloy	Temperature of Media	Medium Temperature
Media	Other, air	Port Size	G1/2
Place of Origin	Zhejiang, China	Model Number	8020750/8022750/8021750/8020850/8022850/8021950
Brand Name	CW

Product Description

Specifications

1:HERION 8020750/8022750/8021750/8020850/8022850/8021950 3/2 Way Solenoid Valve
2:Port size:G1/4,G1/2
4:1 year warranty

HERION 8020750/8022750/8021750/8020850/8022850/8021950 3/2 Way Solenoid Valve

1: HERION 8020750/8022750/8021750/8020850/8022850/8021950 3/2 Way Solenoid Valve
2: 3/2 way
3:Port size:G1/4,G1/2
4:1 year warranty

5:Good quality and reasonable prices.

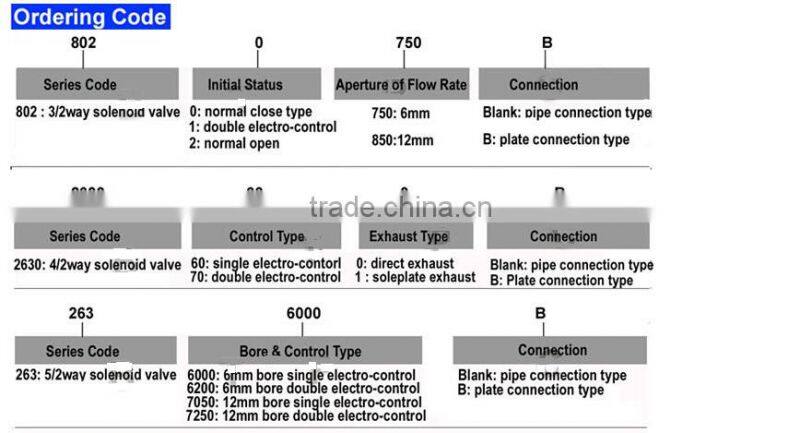

How To Order:

Specification:

Model	8020750	8022750	8021750	8020850	8022850	2630600	2636000	2636200	2637050	2637250
Effective Section Area	10 mm²(Cv=0.56)			40mm²(Cv=2.23)		4mm²	10 mm²(Cv=0.56)		40mm²(Cv=2.23)
						(Cv=0.23)
Port Size	Inlet=Outlet=G1/4			Inlet=Outlet=G1/2		In=Out=	In=Out=Exh=G1/4		In=Out=Exh=G1/2
						Exh=G1/8
Way & Position	3/2way					4/2way	5/2way
Working medium	40um micron filtered air
Working-pressure	0.15~1.0Mpa
Max. pressure resistance	1.2MPa
Medium Temperature	-5~50°C
Insulation & Protection class	IP65, F class

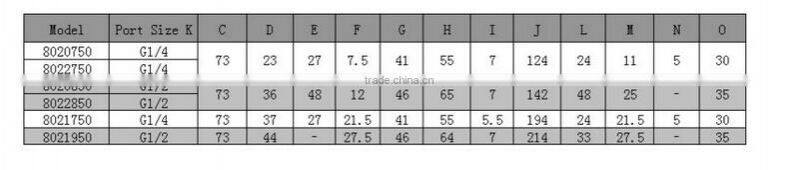

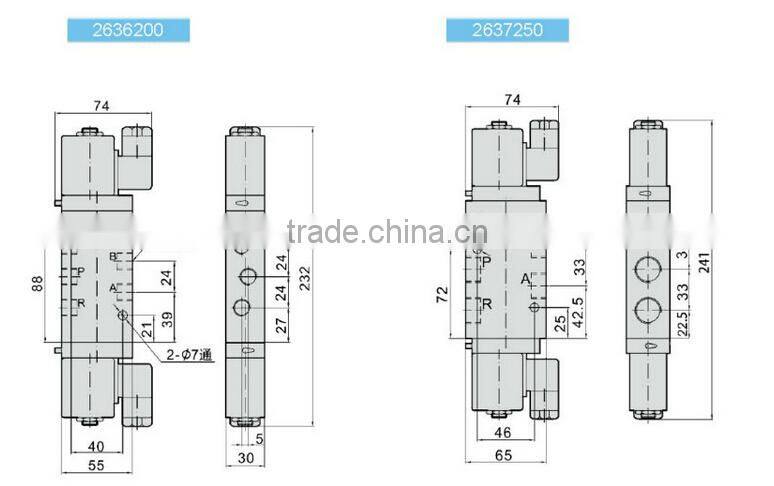

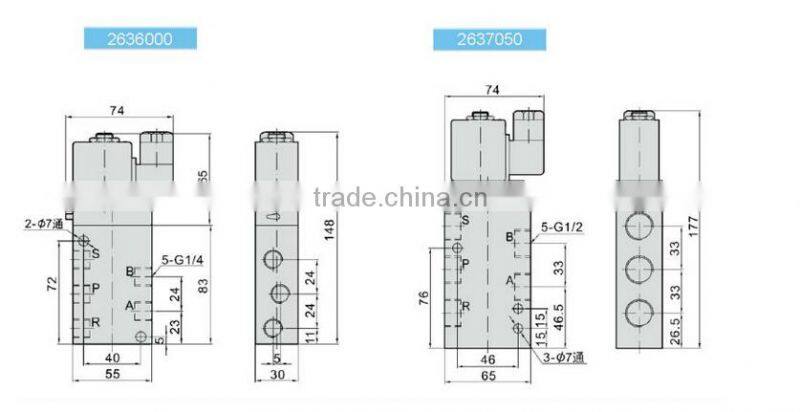

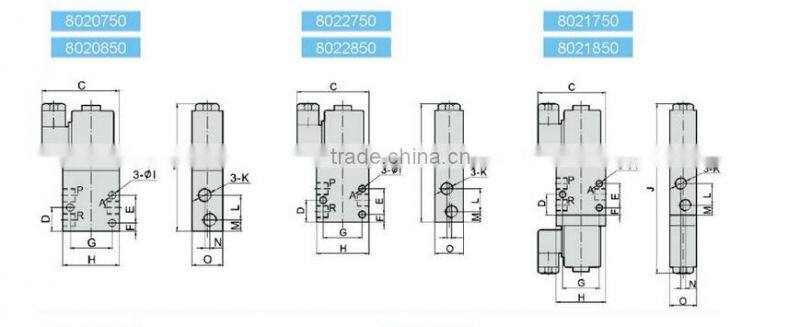

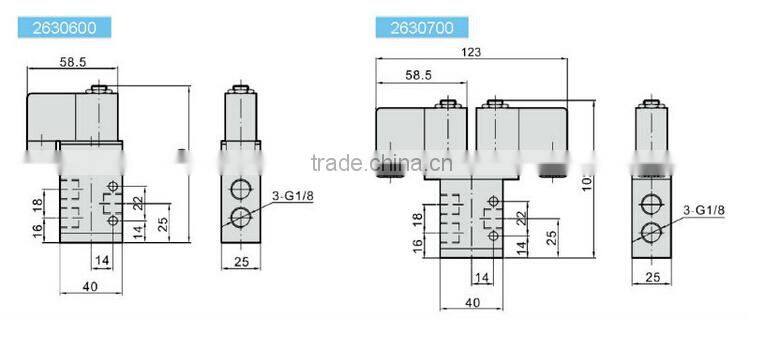

Dimensions and Sizes:

Shippment

1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage

Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok

5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
