JZF-40 Pneumatic Angle Seat Valve With Stainless Steel Actuator Thread Type

FOB Price

US$ 60 - 70 / Piece

1 Piece(Min. Order)

Port ningbo or shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Regulating
Pressure	Medium Pressure	Power	Pneumatic
Material	Stainless Steel	Temperature of Media	High Temperature
Media	Other, air	Port Size	G1-1/2"
Place of Origin	Zhejiang, China	Model Number	JZF-40
Brand Name	CW	Application	General

Product Description

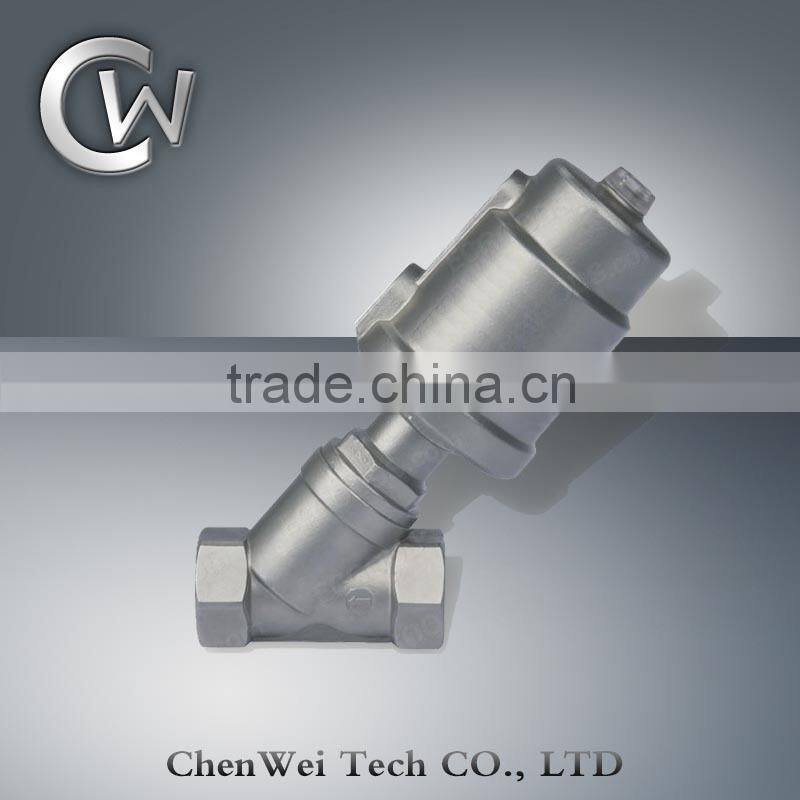

JZF-40 Pneumatic Angle Seat Valve with Stainless Steel Actuator thread type

Features:

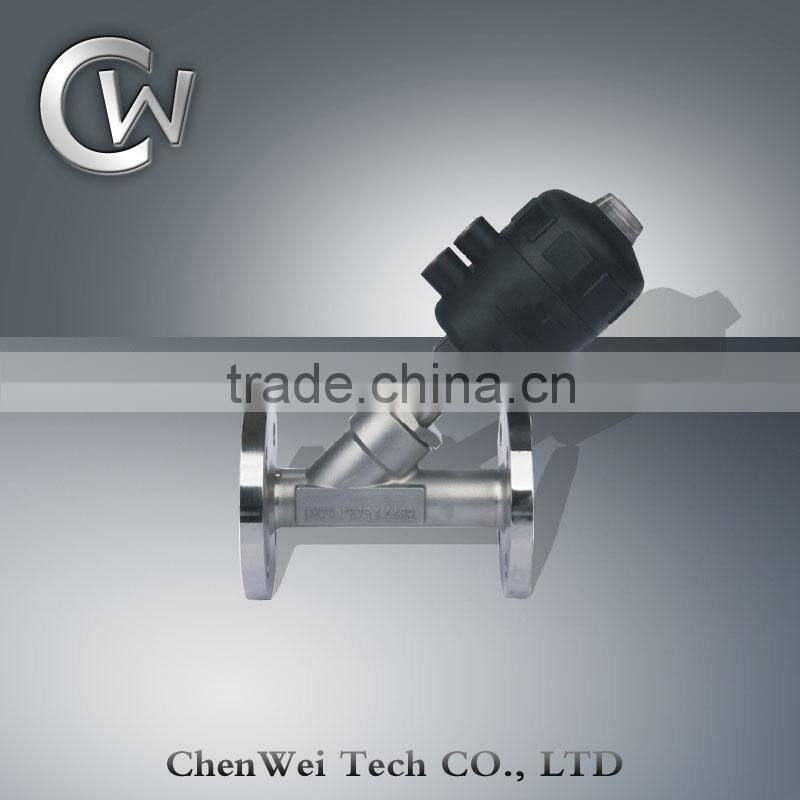

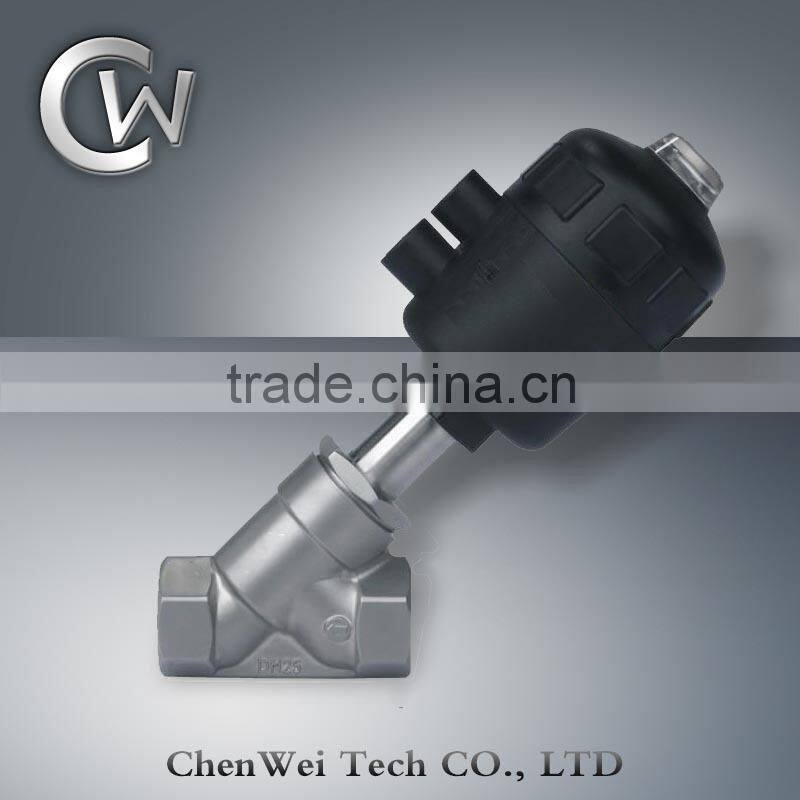

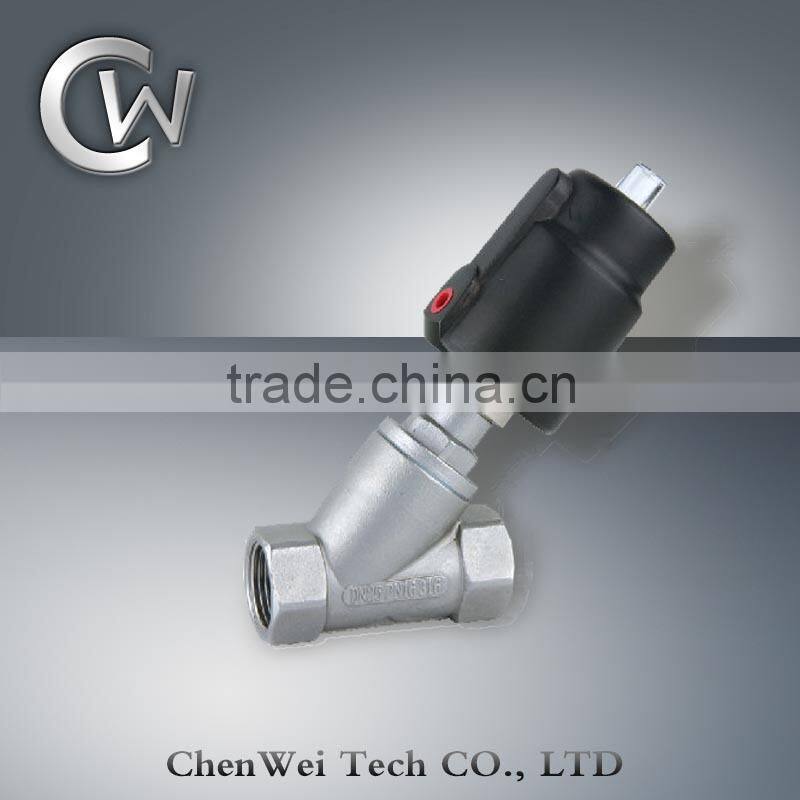

1) Connection type: female thread, flange.
2) Without a pilot solenoid valve
3) Simple frame, reliable action, easy maintenance
4) Valve body: 304 or 316 stainless steel
5) Anti-corrosive
6) Through flow, low fluid resistance
7) Light weight, low volume
8) Piston type air-operated valve
9) Open / close air source pipeline to control main valve

10) Easy to install, with infinitely rotatable actuator

11) With pilot air pressure, zero leakage, long service life
12) Optional anti-water-hammer function.

Specification:

Orifice size (mm)	Port size (G or NPT)	Kv (m³/h)	Operating pressure (bar)	Min. pilot pressure (bar)	Flow direction
13	1/2”	4.2	0~16	2.7~3.0	Above seat
20	3/4”	8		2.7~3.4
25	1”	19		2.7~5.0
32	1¹/4	27.5		3.6~5.0
40	1¹/2	42		3.6~6.2
50	2”	52		3.6~7.4
65	2¹/2	77		3.6~10
80	3”	110		3.6~10
For steam more than 180°C, max. Operating pressure is 10 bar
