FESTO Air Filter-Pneumatic Filter-OF Type Filter

Specifications

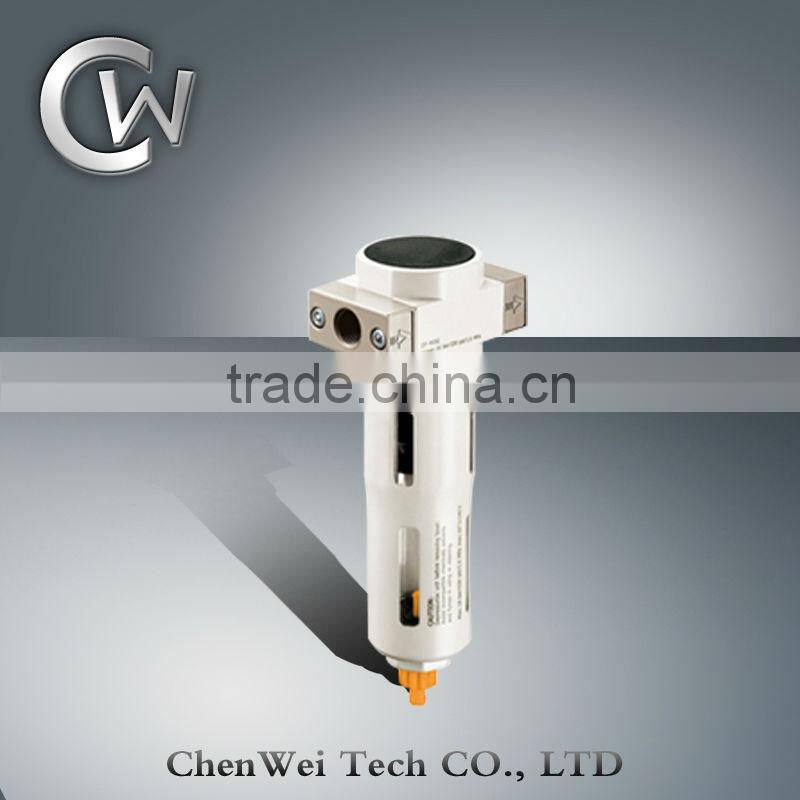

FESTO air filter-Pneumatic Filter-OF Type Filter

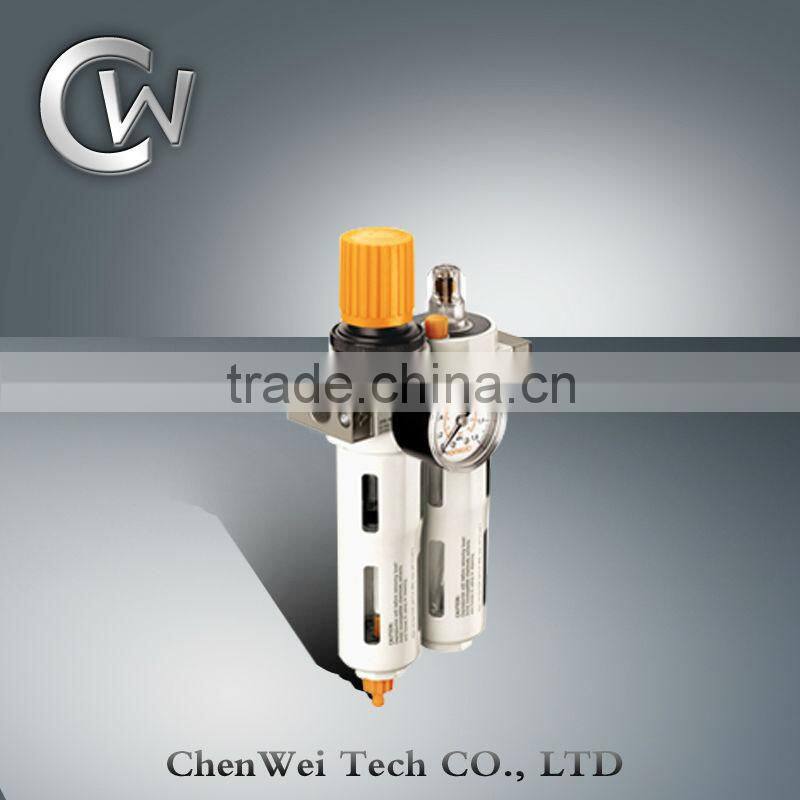

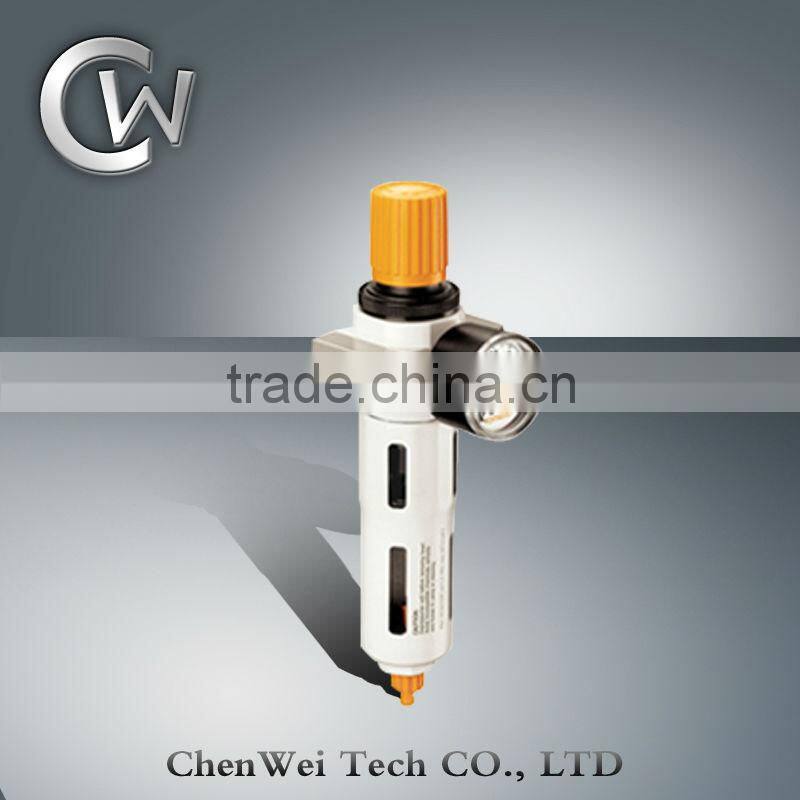

The OU consisted of OFR and OL,each unit can be ordered separately.

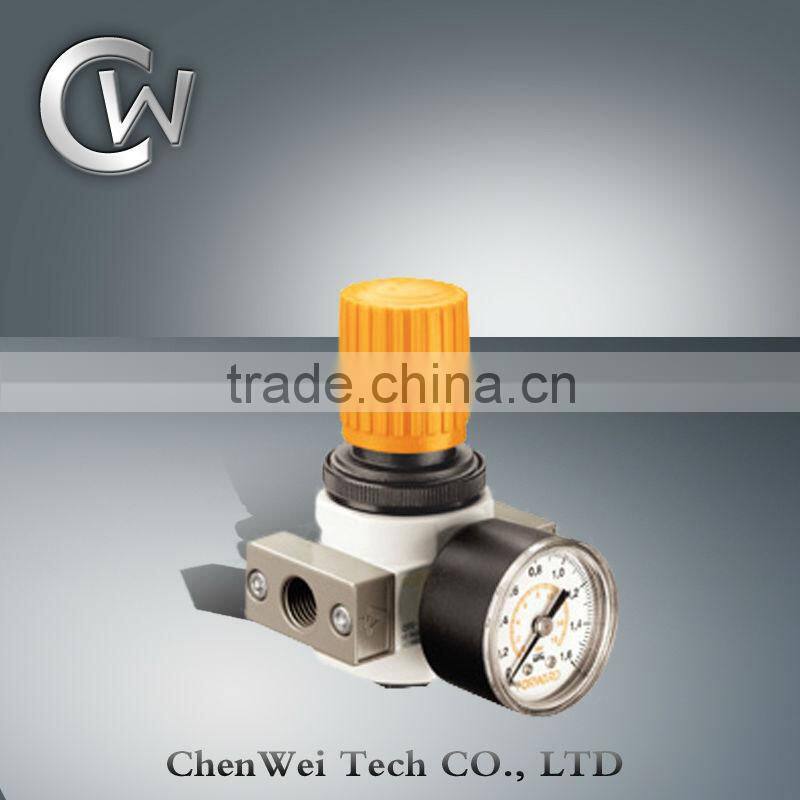

The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.

The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation.The oil drip rate is controlled by the adjustable bolt.Normally,1to 12 drops /1000L of the air is sufficient.

(1 ) Filtering Grade: 5μm

(2) Proof Pressure: 1.6Mpa

(3) Pressure Range: 0.05-1.2MPa

(4) Temperature Range: 5-60°C

(5) Port Size: Mini-1/8", 1/4", 3/8";  Midi-1/4", 3/8", 1/2", 3/4"

(6) Min. Standard Normal Flow Rate: Miini: 3L/min;  Midi: 6L/min

(7) Material Infomation: Housing: Zinc die-casting;

                                     Filter bowl and oil bowl: PC;

                                     Metal Protective Hood: Aluminium alloy;

                                     Adjusting knob: POM

                                     Sealing: NBR;

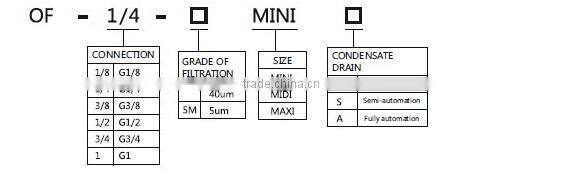

How To Order:

Specification:
