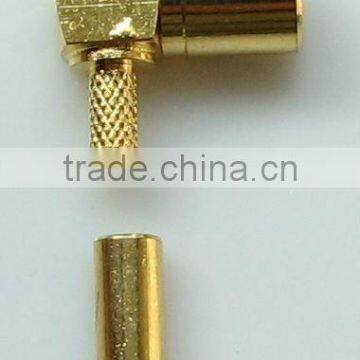

Right Angle SMB connector male and female for cable and pcb 08
- hk
- Credit Card
You May Like
-
50 ohms SMB connector male and female 6.5mm interface
-
03 types SMB connector jack male and female for pcb 02
-
SMB connector male and female for cable and pcb 03
-
60 SMB connector male and female for cable and pcb 01
-
SMB male straight crimp connector RF connector Coaxial connector
-
3GHz SMB connector male and female for cable and pcb 06
Product Details
| Model Number | RF connector Coaxial connector SMA connector SMA female to PCB | Type | SMB | |
| Application | Other, Audio & Video | Gender | Male |
Product Description
Specifications
Right Angle SMB connector1)Brass with gold plating thickness >3u"
2)High performance VSWR<1.2
SMB connectors are snap in mechanism designed to provide high electrical performance for microwaveapplications up to 18GHZ.SMA connectors ensure excellent durability and mechanical strength.
General Specification
1. ELECTRICAL
Frequency Range 0-3GHz
Impedance 75 Ω
Withstanding Voltage 750V
Insertion Loss 1.0dB Max
Contact Resistance 30mΩ Max
Insulation Resistance 1000MΩ Max
2. GENERAL CHARACTERISTICS
Open/Short Test: 100%
Hi-pot Test 500V: 100%
Connector Pull Force: 3.0 kgf
Storage Temperature: -40°C to +85°C
3. ENVIRONMENT
HEAT RESISTANCE: APPEARANCE OK & CONTACT RESISTANCE 30mWmax. (Exposed the products to 80±2°C for 164 hours)
SALT SPRAY TEST: APPEARANCE OK & CONTACT RESISTANCE 40mW max. (Exposed to salt mist conditions: concentration 5±1%, PH: 6.5-7.2, cycle is 13’s spray, 11’s stop, temp is 35±2°C, time: 8 hours.)
4. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.
