RF connector Coaxial connector SMB connector male and female for cable and pcb 12
- hk
- Credit Card
You May Like
-
808 straight SMB connector male and female for cable and pcb 10
-
Right Angle SMB connector male and female for cable and pcb 08
-
50 ohms SMB connector male and female 6.5mm interface
-
03 types SMB connector jack male and female for pcb 02
-
SMB connector male and female for cable and pcb 03
-
60 SMB connector male and female for cable and pcb 01
Product Details
| Model Number | RF connector Coaxial connector SMA connector SMA female to PCB | Type | SMB | |
| Application | Other, Audio & Video | Gender | Other |
Product Description
Specifications

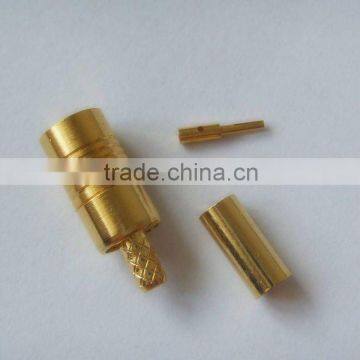

RF connector SMB connector Brass with gold or nickel plated, SMB straight for cable
SMB connectors are snap in mechanism designed to provide high electrical performance for microwaveapplications up to 18GHZ.SMA connectors ensure excellent durability and mechanical strength.
General Specification
1. ELECTRICAL
Frequency Range 0-3GHz
Impedance 75 Ω
Withstanding Voltage 750V
Insertion Loss 1.0dB Max
Contact Resistance 30mΩ Max
Insulation Resistance 1000MΩ Max
2. GENERAL CHARACTERISTICS
Open/Short Test: 100%
Hi-pot Test 500V: 100%
Connector Pull Force: 3.0 kgf
Storage Temperature: -40°C to +85°C
3. ENVIRONMENT
HEAT RESISTANCE: APPEARANCE OK & CONTACT RESISTANCE 30mWmax. (Exposed the products to 80±2°C for 164 hours)
SALT SPRAY TEST: APPEARANCE OK & CONTACT RESISTANCE 40mW max. (Exposed to salt mist conditions: concentration 5±1%, PH: 6.5-7.2, cycle is 13’s spray, 11’s stop, temp is 35±2°C, time: 8 hours.)
4. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.
