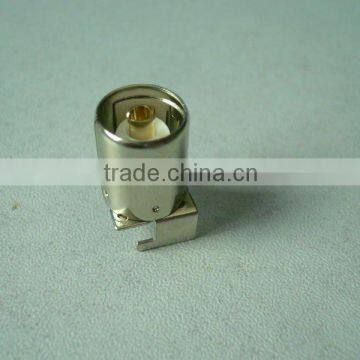

PCB PAL connector EP-080X PAL JACK PANEL MOUNT -RG 59/U -RG 6/U
- hk
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | eastron | |
| Model Number | EP-080X PAL jack soldering and mold for cable | Type | PAL | |
| Application | RF | Gender | Male |
Product Description
Specifications
PCB PAL connector PAL/IEC connector bulkhead1)Brass with gold or nickel plated
2)small contact resistance
3)IEC60169 standar
PAL connector and Coaxial connector and PAL connector are popular in satellite TV, MATV and electronic applications when video are necessary.
75 ohms PAL connector male for cable crimping RF179
General Specificaton:
1. ELECTRICAL
Impedance: 75 ohms
Frequency Range: 0~1GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 750V
Contact Resistance: 5 mW MAX
Insulation Resistance: 1000 MW MIN.
VSWR<1.3 up to 1.0 GHz
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
3. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.
Standard:
IEC169
Product Group
Production Line View
Inspection View
Quality
- QC/Technical Support We possess digital calipers, digital micrometers, thread and pin gauges, tool microscopes, pitch diameter micrometers, height gauges, profile projectors, hardness testers, ohm testers and push/pull testers.
- Awards & Other Recognitions We are ISO 9001:2008 certified
FAVOURABLE PRICE HIGH QUALITY
