7801 Bnc Male Dust Cap BNC Type Connector Q9 Equipment Using
- hk
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Bnc Connector , RF Connector BNC Jack BNC Connector BNC Female to Pcb EB-080102
-
BNC Connector BNC Male Terminator 50 Ohm And 75 Ohms Terminator EB-79
-
Moulding BNC Connector BNC Male BNC Male Bulkhead Front Panel EB-5902-04
-
Isolated BNC Connector BNC Jack Crimp Type for Cable EB-3807
-
Coaxial Connector, RF Connector, BNC Connector BNC Jack Metal Case Right Angle to PCB EB-0804
-
Video Adaptor BNC Connector BNC FEMALE TO RCA JACK,ELECTRONIC CONNECTOR
Product Details
Place of Origin | Guangdong, China | Brand Name | eastron | |
Model Number | EB-7905 bnc male soldering and mold for cable | Type | BNC | |
Application | RF | Gender | Male |
Product Description
Specifications

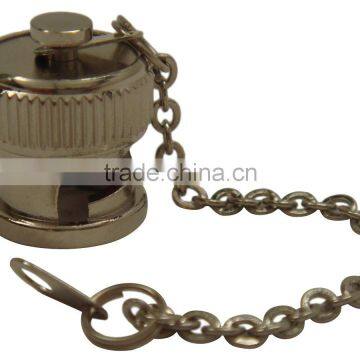

BNC connector male dust cap1)Brass with gold or nickel plated
2)small resistance
3)IEC60169 standard
solderless connector are popular for cable
Coaxial connector, RF connector, BNC connectors are designed to provide high electrical performance for microwaveapplications up to 12GHZ.BNC connectors ensure quick locked and excellent durability and mechanical strength.
BNC male
Body | brass | Nickel or gold plated |
insulator | PTFE | |
Contact | brass | Gold plated thickness >8u” |
1. ELECTRICAL
Impedance: 75W nominal
Frequency Range: 0~4GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 1500V
Contact Resistance: 3.0 mW MAX
Insulation Resistance: 5000 MW MIN.
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
3. RELIABILITY
DURABILITY: >500 CYCLES
SALT SPRAY TEST: APPEARANCE OK & CONTACT RESISTANCE 40mW max. (Exposed to salt mist conditions: concentration 5±1%, PH: 6.5-7.2, cycle is 13’s spray, 11’s stop, temp is 35±2°C, time: 8 hours.)
4. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.
BNC connectors are characterized by their 2-stud quick connect/disconnect bayonet coupling arrangement.
They are one of the most popular of the coaxial connector and are suitable for a wide range of systems,including Radio Telecommunication systems,Medical Equipment,Computer Networks,Safety&Security and test instrumentation.Available in 50Ω,75Ω,and 50Ω reverse polarity.
