Panel mounting BNC connector female jack for cable soldering and moulding
- hk
- T/T Credit Card
You May Like
-
Right Angle connector BNC jack to PCB white isolated body with nut and washer
-
connector male BNC compression for cable RG59 and RG6
-
75 ohms Double BNC jack BNC connector EB-6001-02-02
-
75 ohms soldering and crimping BNC connector for RG179
-
75 ohms right angle bnc connector jack for PCB through-hole type
-
75 ohms soldering with bnc connector male for cable SFF-75-1-1 EB-3901-08-1
Product Details
| Place of Origin | Guangdong, China | Brand Name | EASTRON | |
| Model Number | BNC connector | Type | BNC | |
| Application | RF | Gender | Female |
Product Description
Specifications

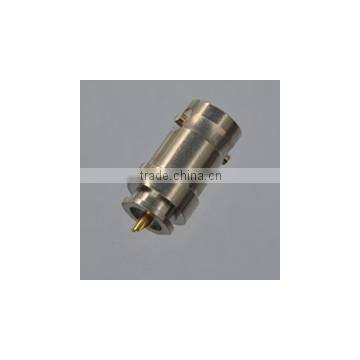

BNC connector female jack for cable soldering1)IEC60169 standard
2)Brass body with nickel plating
3)Brass contact
BNC connector designed to provide high electrical performance for microwaveapplications up to 12GHZ.BNC connectors ensure quick locked and excellent durability and mechanical strength.
BNC male crimping for cable mini RG59
Body | brass | Nickel or gold plated |
insulator | PTFE |
|
Contact | brass | Gold plated thickness >8u” |
1. ELECTRICAL
Impedance: 75W nominal
Frequency Range: 0~4GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 1500V
Contact Resistance: 3.0 mW MAX
Insulation Resistance: 5000 MW MIN.
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
3. RELIABILITY
DURABILITY: >500 CYCLES
SALT SPRAY TEST: APPEARANCE OK & CONTACT RESISTANCE 40mW max. (Exposed to salt mist conditions: concentration 5±1%, PH: 6.5-7.2, cycle is 13’s spray, 11’s stop, temp is 35±2°C, time: 8 hours.)
4. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.
BNC connectors are characterized by their 2-stud quick connect/disconnect bayonet coupling arrangement.
They are one of the most popular of the coaxial connector and are suitable for a wide range of systems,including Radio Telecommunication systems,Medical Equipment,Computer Networks,Safety&Security and test instrumentation.Available in 50Ω,75Ω,and 50Ω reverse polarity.
BNC male and female connectors
| | ||
| | ||
| | ||
| BNC female PCB mt | BNC male crimp | BNC male clamp | |
| straight | for RG58/U | for RG59/U | for RG174/U |
| Right Angle | For RG316/U | for RG6/U | for RG179/U |
Factory View:
