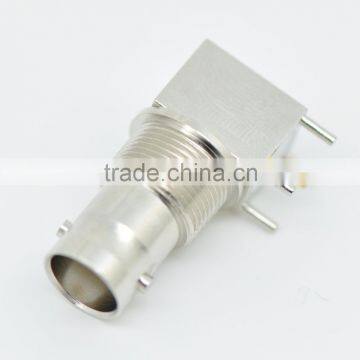

Good Quality Pcb Connectors Right Angle to Pcb Brass Body BNC Connector Jack Right Angle to Pcb Mounting 50 Ohms And 75 Ohms
You May Like
-
Connector Male BNC Compression for 5.0mm Cable
-
7801 Bnc Male Dust Cap BNC Type Connector Q9 Equipment Using
-
Bnc Connector , RF Connector BNC Jack BNC Connector BNC Female to Pcb EB-080102
-
BNC Connector BNC Male Terminator 50 Ohm And 75 Ohms Terminator EB-79
-
Moulding BNC Connector BNC Male BNC Male Bulkhead Front Panel EB-5902-04
-
Isolated BNC Connector BNC Jack Crimp Type for Cable EB-3807
Product Details
| Place of Origin | Guangdong, China | Brand Name | eastron | |
| Model Number | BNC JACK | Type | BNC | |
| Application | Other, Audio & Video | Gender | Female |
Product Description
BNC connector are characterized bu their 2-stud quick connector/disconnect bayonetcoupling arrangement They are one of the most popular of the coaxial systems,including Radio Telecommunication systems
BNC connector designed to provide high electrical performance for microwaveapplications up to 12GHZ.BNC connectors ensure quick locked and excellent durability and mechanical strength.
1. ELECTRICAL
Impedance: 75W nominal
Frequency Range: 0~4GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 1500V
Contact Resistance: 3.0 mW MAX
Insulation Resistance: 5000 MW MIN.
BNC connectors are characterized by their 2-stud quick connect/disconnect bayonet coupling arrangement.
They are one of the most popular of the coaxial connector and are suitable for a wide range of systems,including Radio Telecommunication systems,Medical Equipment,Computer Networks,Safety&Security and test instrumentation.Available in 50Ω,75Ω,and 50Ω reverse polarity.
BNC male and female connectors
| | ||
| | ||
| | ||
| BNC female PCB mt | BNC male crimp | BNC male clamp | |
| straight | for RG58/U | for RG59/U | for RG174/U |
| Right Angle | For RG316/U | for RG6/U | for RG179/U |
