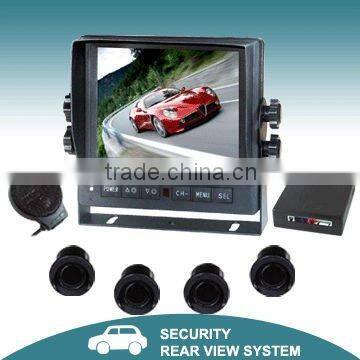

5.6-inch digital rear view parking sensors system

5.6-inch digital rear view parking sensors system features:

Features of monitor:
5.6 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
8 languages selectable for user operation
Automatic back-lights for buttons.
Full-function remote controller.
Multiple video formats available: AUTO /PAL/ NTSC
13-Pin: 3 cameras inputs
22-Pin: 4 cameras inputs, 1 video output and 1 audio output.
Operates from 10~32V. Support 12V or 24V automobile battery.
Automatically switches to back-up, left or right side camera views.
Speaker available and users can control the sound level from control panel.
The LOGO displays on the monitor when switched on, and disappears while there is video signal. Auto switch off if video signal losts in 3 minutes.

5.6” COLOR TFT LCD DIGITAL MONITOR- MO-115D  SPECIFICATIONS:
Product: 5.6" TFT- LCD Color digital monitor.
Audio output: 1W.
Loudspeaker: one 4.0cm round loudspeaker.
Power supply: Automobile storage battery (10-32V) , Automobile adapter.
Power consumption: about 5W .
Outer dimension: 145mm(W)x136mm(H)x31.5mm(T) (without flush mount),
182mm(W)x155mm(H)x42.5mm(T) (with flush mount),
Dot pitch: 0.0588 (H) × 0.1764 (V).
Resolution : 640 x 3(RGB) x 480
Contrast: 500:1.
Brightness: 200cd/m2.
Viewing angle: U: 50 / D: 70, R/L: 70.
Operating temperature: -20~+70oC,RH90%.
Storage temperature: -30~+80oC,RH90%.

Features of parking sensors:

Integration of rear view display, barrier distance and voice alarm
High-sensitivity ultrasonic detector
Real-time digital direction and distance display on screen
Intellectual step-by-step voice-directed alarm system
Compatible with any types of monitors and backup cameras
Ensures safer backing and parking

PARKING SENSORS SPECIFICATIONS:
Number Of Sensors: 4 PCS
Color Of Sensors: Optional
Ultrasonic Frequency: 40KHz
Detecting Distance: 0.30~2.50m (1ft 0in --- 8ft 4in)
Best Detecting Distance: 0.30~1.50m (1ft 0in --- 5ft 0in)
Display Unit: M Or FT Optional
Power Supply: DC10-18V
Operating Temperature: -20~ 70 RH95% Max
Storage Temperature: -40~ 80 RH95% Max
