Universal 360 Degree Panoramic View Car Camera for Vehicle
- Guangzhou
- T/T Credit Card
You May Like
-
Universal 360 Degree Bird View Car Monitoring System for Truck
-
High Definition 360-degree Panoramic View Car Camera for Truck
-
Universal 360 Degree Car Security Camera for Vehicle
-
High Definition Surround View Camera System for Bus
-
360 Degree Car Top View Camera System for Truck
-
360 Degree Car Camera System for Truck
Product Details
| Type | Other, reverse system | Voltage | Other, 8~32V | |
| Car Make | all kinds | Place of Origin | Guangdong, China | |
| Brand Name | OEM | Model Number | BV-A06 | |
| Warranty | 1 Years |
Product Description

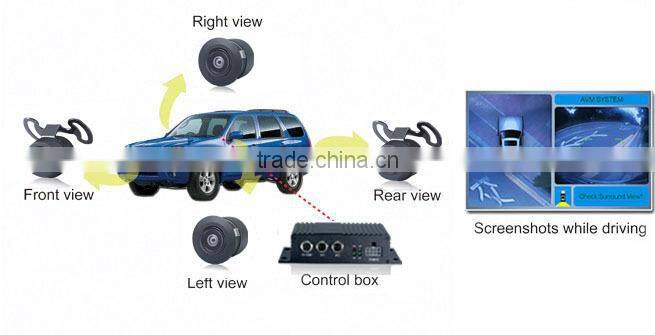

Universal 360 degree panoramic view car camera
- Clear panoramic display around automobiles
- Display range of distance adjustable
- Super wide horizontal viewing angle (above 170°)
- Two start-up modes available: back-up / remote-control activation
- Auto switch to standby mode - delaying time adjustable
- Auto image mosaic and auto generation of reversing cursor simultaneously
- Channel selection available with remote control or trigger wire when it is single-picture display
- Provide convenient debugging function for multiple sets of products
- Specification of calibration plate can be set up
- The software of SD card is upgraded
- Supply four kinds of camera to choose
360° Around-View System BV-A06

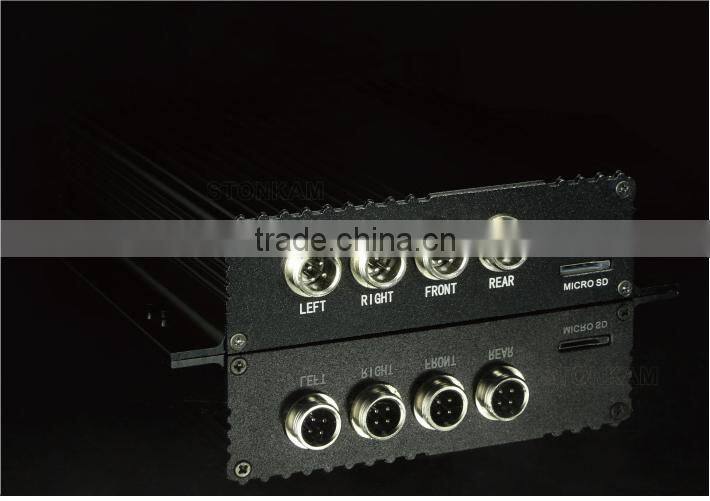

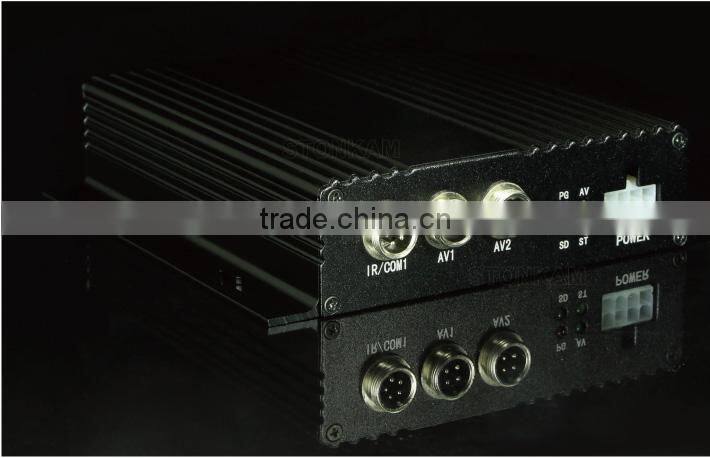

| Control Box Specifications | |
| Language | English/Chinese |
| Video Input | four AV input |
| Video Output | two AV output |
| Trigger Input | 1-ch reversing trigger, 1-ch turn left trigger, 1-ch turn right trigger |
| Signal Output | 1 simulated reversing signal output, which can replace the actual reversing detection wire to connect the reversing trigger input of the backend display device.6 |
| System Mode | NTSC/PAL |
| Working Voltage | 8-32V |
| Working Current | <260mA DC 12V |
| Working Temperature | -40℃ - 85℃ |
| Storage Temperature | -40℃ - 85℃ |
| Operating Humidity | 10% - 95% |

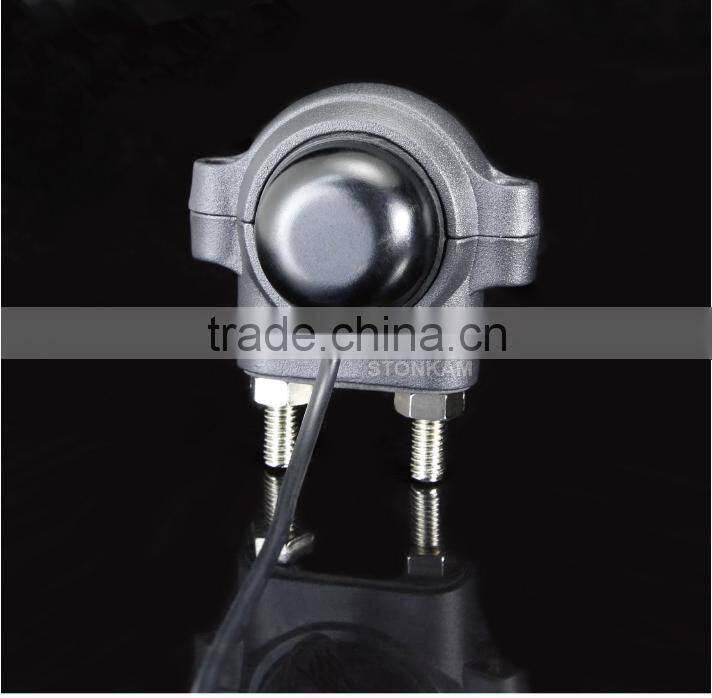

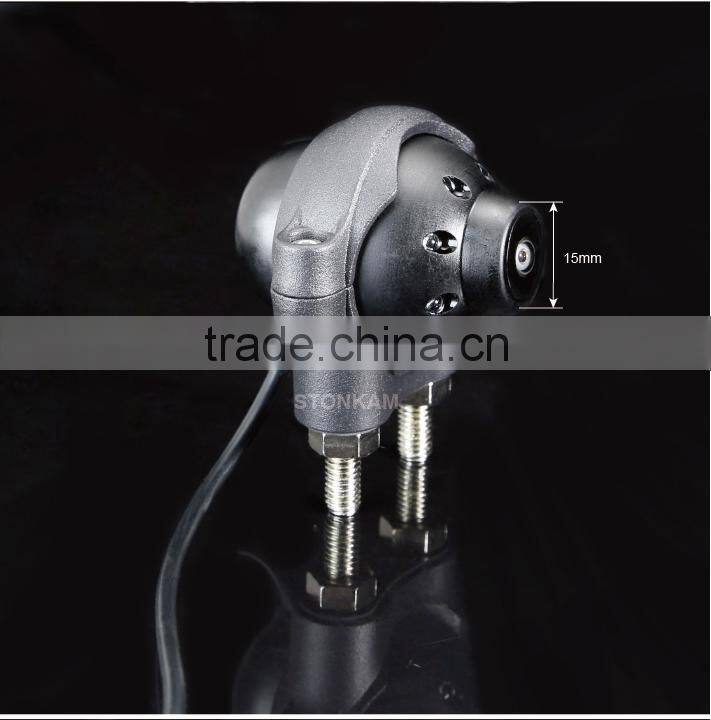

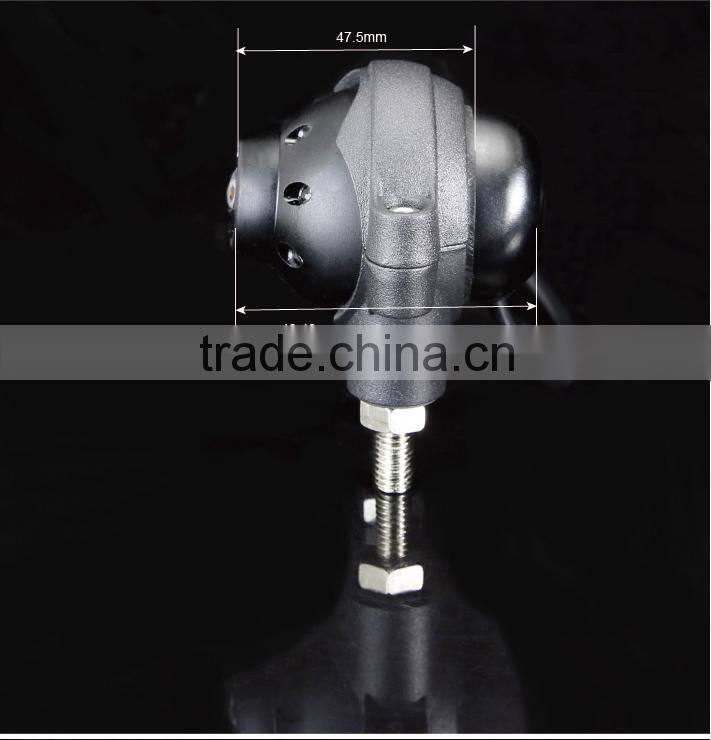

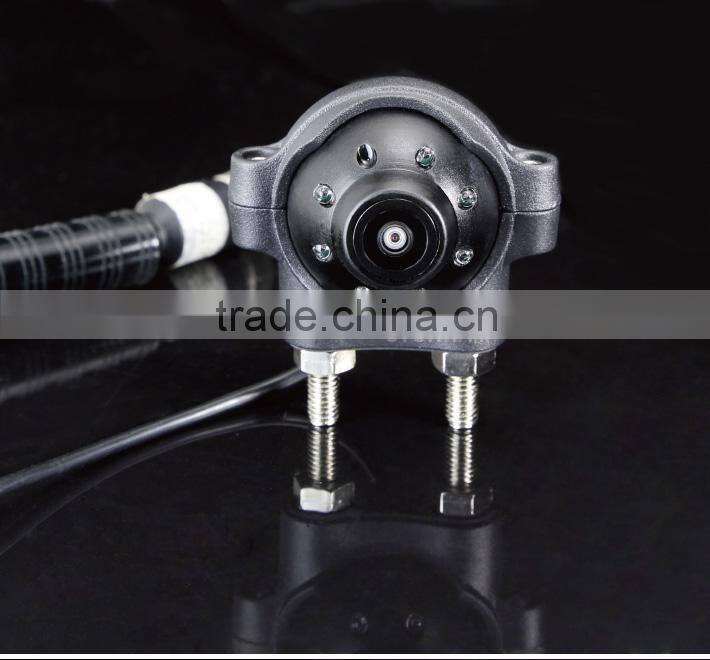

Camera Parameter | |
Image Sensor | CMOS |
System Pattern | PAL/NTSC |
Effective Pixels | 728*488 pixels |
Resolution | 500TV Line |
Field Angle | Horizontal>170° |
Low Illumination | 0.1 Lux |
Video Output | 1.0Vp-p 75Ω |
Working Temperature | -40℃-85℃ |
Storage Temperature | -40℃-85℃ |
Waterproof Grade | IP69K |

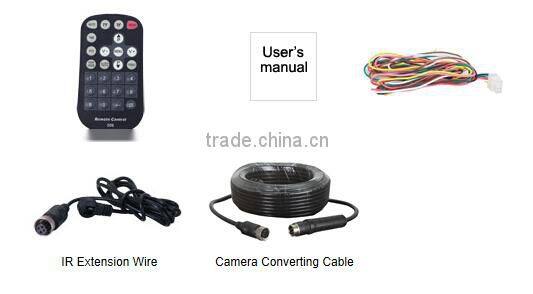

Accessories:
Testing Standard: MIL-STD-105E
Tests
Manufacturing Process
Tests
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E. We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
