Home > Products > Rear View Cameras > Waterproof Color mini cmos camera

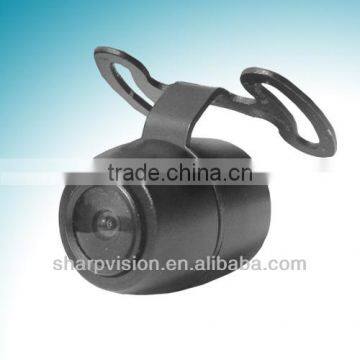

Waterproof Color mini cmos camera
- Guangzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | CW-638 | Style | Mini Camera | |
| Sensor | CMOS | Technology | Infrared | |
| Special Features | Waterproof / Weatherproof | Type | Other, mini cmos camera |
Product Description
Mini cmos camera features:
CMOS sensor
Super wide angle(180 degrees)
Waterproof camera for long-term outdoor usage
Smaller size and embedded design for more convenient installation
The embedded camera is designed for car rear view system
Specification:
1 / 4" COLOR CMOS SENSOR SPECIFICATIONS
TV System: PAL/NTSC
Effective Pixels: PAL:720(H)×576(V)/ NTSC:720(H)×480(V)
Sensing Area: 3.584mm(H)×2.688mm(V)
Sync. System: Internal
Resolution: 420 TV Lines
Minimum Illumination: 0 .3Lux(day)/F1.2
Video Output: Composite Signal (1.0Vp-p, 75Ω)
Gamma Correction: 0.45
AGC: ON
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50-1/100,000Sec 1/60-1/100,000Sec
BLC: Auto
Current Consumption: Max.65mA
Power Supply: DC12V
Operating Temperature: -20ºC~ 60ºC RH95% Max.
Storage Temperature: -30ºC~ 80ºC RH95% Max.
